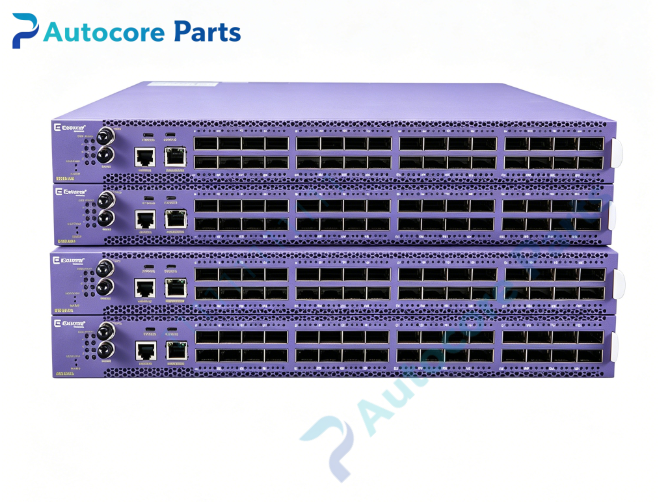

Extreme Networks X870-96X-8C High Density Leaf Switch

Technical SpecificationsModel：X870-96X-8C Brand：Extreme Networks Product Type：1U Rack Mount high-density data center leaf switch

Front Ports:

• 24 × QSFP28 cages, each port breakout to 4×10G via fanout cable, total 96×10G ports

• 8 × QSFP28 multi-rate ports,support 10G/25G/40G/50G/100G configurable speed

• 1 × RJ45 serial console port for local CLI management

• 1 × 10/100/1000BASE-T out-of-band management port

• 1 × USB Type A port for firmware upgrade & configuration backup

Switch Fabric: 6.4 Tbps non-blocking full duplex Forwarding Rate: 3170 Mpps Max Jumbo Frame: 9216 bytes VLAN Quantity: Up to 4094 VLANs MAC Address Table: 512K MAC entries ACL: 32K hardware ingress ACL rules QoS: 8 hardware priority queues per port Latency: Low latency cut-through forwarding CPU & Memory: 2.4GHz Quad-core processor,8GB ECC DDR3,32GB SSD Power Supply: Dual hot-swappable PSU slots,AC or -48V DC optional Fan: 6 hot-swappable fan modules,front-to-back or back-to-front airflow;PSU and fans airflow direction must match Software OS: ExtremeXOS minimum 22.2.1 Operating temperature：0℃ ~ +45℃ Mounting: Standard 19-inch 1U rack mount Weight: 8.6 kg Status LED: System power, fan, stack ID, per-port link/activity indicators

System compatibility

X870-96X-8C supports SummitStack-V400 stacking, can stack with X590,X690,X870 series switches. Compatible with Extreme certified QSFP28/QSFP+ transceivers and breakout DAC cables. Supports Layer2 switching, full IPv4/IPv6 Layer3 routing,OSPF,BGP,VRRP,PIM multicast, VRRP, VXLAN, PTP and DCB. Licenses required to unlock higher speed on breakout ports.

Function

X870-96X-8C is a high-density 1U leaf switch for cloud and enterprise data center top of rack. 24 QSFP28 ports can be split into total 96×10G interfaces via 1:4 fanout cables for connecting 10G servers or access switches. The dedicated 8 QSFP28 multi-rate ports provide flexible high-speed uplink up to 100G to spine layer. High-speed ports can also be configured as SummitStack-V400 stacking links to combine multiple switches as one logical device. Low latency cut-through forwarding fits high-performance computing scenarios. It supports advanced QoS, large ACL table, jumbo frame, zero touch provisioning ZTP+ and comprehensive security control, widely deployed for high-density 10G leaf and enterprise large scale network aggregation.

Installation

Mount the switch into standard 19-inch equipment rack. Install PSU and fan modules, ensure airflow direction consistent between fans and power supplies. Connect power cable. Use console cable for initial CLI configuration. Insert QSFP28/QSFP+ transceivers and connect fiber or breakout DAC cables. Configure port breakout, speed license and SummitStack-V400 stacking parameters if stack cluster required. Verify port status and firmware consistency after boot.

Interface24 QSFP28 breakout slots,8 multi-rate QSFP28 uplink slots,serial console port,out-of-band management port,USB port,dual PSU bays,six fan slots and status LED indicators for Extreme Networks X870-96X-8C.

FeatureOriginal Extreme Networks X870-96X-8C leaf switch,24 QSFP28 ports breakout to 96×10G,8×multi-rate QSFP28 up to 100G,6.4Tbps non-blocking fabric,low latency cut-through,SummitStack-V400 stacking,hot-swappable power supply and fan tray,L2/L3 full routing,VXLAN,PTP and DCB support,jumbo frame,large MAC and ACL table. This spare is used for high-density data center ToR leaf and large enterprise core network upgrade and replacement.

DiagnosticSwitch no power: Check AC/DC power cable and input voltage, inspect PSU seating and LED status. Breakout port no link: Verify fanout cable type,QSFP+ module certification, fiber cleanliness and optical attenuation. Uplink port abnormal: Check QSFP28 module compatibility and optical power value. Stacking failure: Confirm SummitStack-V400 port setting,transceiver type,cable integrity and matching ExtremeXOS firmware on all stack members. Temperature alarm: Check fan module operation,dust buildup and cabinet airflow,keep consistent airflow of fans and PSUs. High CPU warning: Check broadcast storm, routing protocol stability and ACL policy.

Product BriefX870-96X-8C is Extreme Networks high-density 1U leaf switch with 96×10G breakout ports and 8×100G multi-rate uplink ports,classic spare for data center top-of-rack high density 10G network.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
