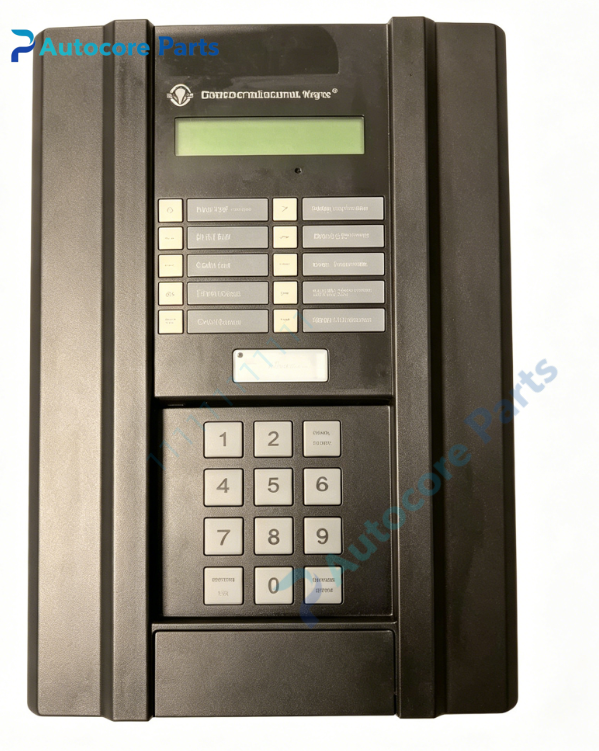

FANUC 369-HI-R-M-0-E-0-0 Motor Management Relay

Technical Specifications

Model:369-HI-R-M-0-E-0-0

Brand:GE FANUC

System compatibility:369 series microprocessor motor management relay,formerly GE FANUC product. Designed for three-phase AC medium motor protection and supervision. Ordering code:HI=50-300VDC/60-265VAC auxiliary power,R=12 built-in RTD inputs,M=metering package,0=no fiber port,E=Modbus TCP interface,0=no harsh coating,0=no extra modification. Widely used for power plant,water treatment,oil & gas motor control systems.

Function:All-in-one motor protection & measuring relay. True RMS sampling for phase current,ground current and voltage. Multiple ANSI protection functions:overload,overcurrent,locked rotor,ground fault,phase unbalance,under/over voltage,stall protection. 12 RTD temperature channels for stator and bearing monitoring. Metering package measures V,A,kW,kvar,kVA,PF,Hz and energy. Stores event records,oscillography waveform capture and motor health report. Parameters configured via front keypad or EnerVista PC software. Supports Modbus RTU / Modbus TCP communication for SCADA system.

Installation:Panel cut-out mounting inside motor control cabinet,terminal block for CT/PT,RTD and digital I/O wiring.

Interface:

‑Screw terminal:3-phase CT current input(1A/5A secondary),PT voltage input

‑12 RTD temperature input terminals

‑6 optically isolated digital dry contact inputs

‑Programmable relay output terminals for trip and alarm

‑Front panel RS232 service port

‑Rear RS485 Modbus RTU and Modbus TCP communication port

‑Front LCD display,keypad and LED status indicators

Circuit feature:True RMS measurement,adaptive thermal motor model,surge suppression for measuring terminals,non-volatile memory for setting and fault records,hardware watchdog supervision.

Feature:Legacy discontinued product,verify full ordering suffix before replacement. Adaptive motor learning function captures inrush and acceleration characteristics to optimise protection curve. Supports FlexCurve custom overload curves.

Diagnostic:Front LCD shows real-time measuring data,alarm and trip codes;fault waveform and event log can be uploaded via communication bus.

Power supply:50‑300 VDC or 60‑265 VAC,wide range HI control power

Protection class:IP52 front panel;IP20 rear terminal area

Horizontal operating temperature:‑40℃ ~ +85℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.7kg

Dimensions:292mm ×146mm ×153mm

Certification:CE,UL

Built‑in function

369-HI-R-M-0-E-0-0 GE FANUC motor management relay provides comprehensive protection for medium voltage AC motors. It monitors current,voltage and winding/bearing temperature,detects motor abnormal conditions and triggers trip or pre-alarm signal to prevent motor burnout. Widely used for industrial motor control cabinet spare‑part replacement.

Product Brief

369-HI-R-M-0-E-0-0 belongs to GE FANUC 369 series,microprocessor motor management relay with 12 RTD inputs and metering package. This model is end-of-life,confirm full ordering suffix and hardware configuration before ordering. CT wiring,RTD sensor and communication parameters must be checked during commissioning. Widely applied for power equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
