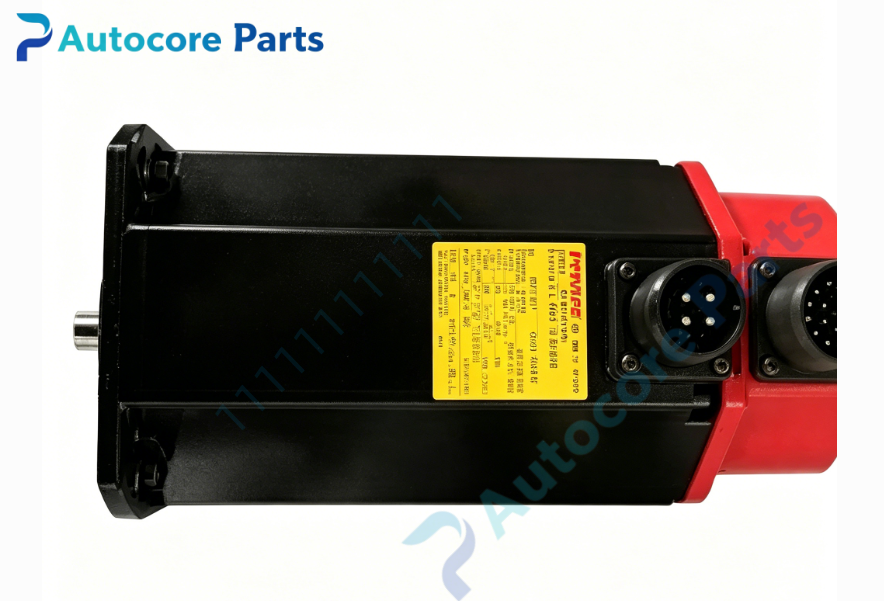

FANUC A06B-0127-B077 Servo Motor

Technical Specifications

Model:A06B-0127-B077

Brand:FANUC

Series:α6/2000

Rated power:1.0kW

Rated speed:2000rpm

Voltage:3-phase 140VAC

Frequency:133Hz

Rated current:4.6A

Stall torque:6Nm

Encoder:aI64 incremental encoder

Shaft:tapered shaft

Brake:No holding brake

Insulation class:F

Protection class:IP65

Weight:13kg

Dimensions:130mm ×130mm ×220mm

Certification:CE

System compatibility:α series servo motor for FANUC 0i series CNC system,matched with α series servo amplifier,for CNC feed axes.

Function:Permanent magnet AC servo motor for CNC feed axis. It realizes closed-loop position and speed control via built-in aI64 incremental encoder. Incremental encoder requires homing after power cycle.

Installation:Flange mount,connect power cable and encoder cable to servo amplifier.

Interface:

‑3-phase power connector

‑aI64 incremental encoder signal connector

‑Motor housing mounting flange

‑Tapered output shaft

Circuit feature:Built-in permanent magnet rotor,encoder sampling circuit,temperature detection circuit.

Feature:FANUC α series servo motor,no brake,tapered shaft,aI64 incremental encoder. High torque density,stable operation. Common faults:encoder damage,coil burnout,bearing wear. Confirm full model for compatibility before replacement.

Diagnostic:Motor or encoder damage will trigger servo alarm,overload or position deviation alarm on CNC system.

Built‑in function

A06B-0127-B077 α6/2000 servo motor provides stable high-precision closed-loop motion control for CNC feed axis,widely used for CNC spare part replacement.

Product Brief

A06B-0127-B077 belongs to FANUC α series servo motor spare parts family,1.0kW α6/2000 motor with tapered shaft and aI64 incremental encoder,no brake. Verify CNC system,servo amplifier and cable compatibility before ordering. Check winding insulation,encoder and bearing function during commissioning. Widely applied for CNC equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
