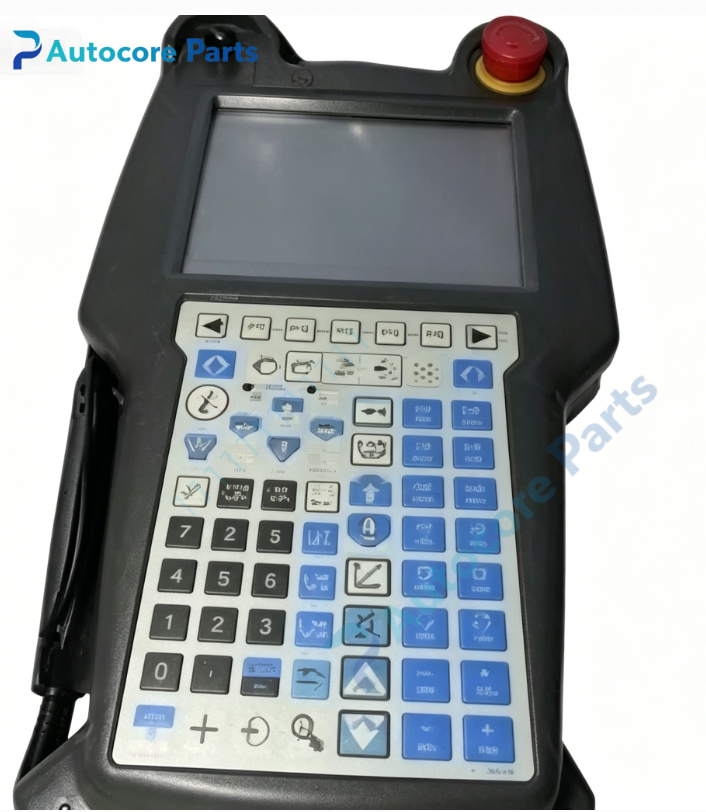

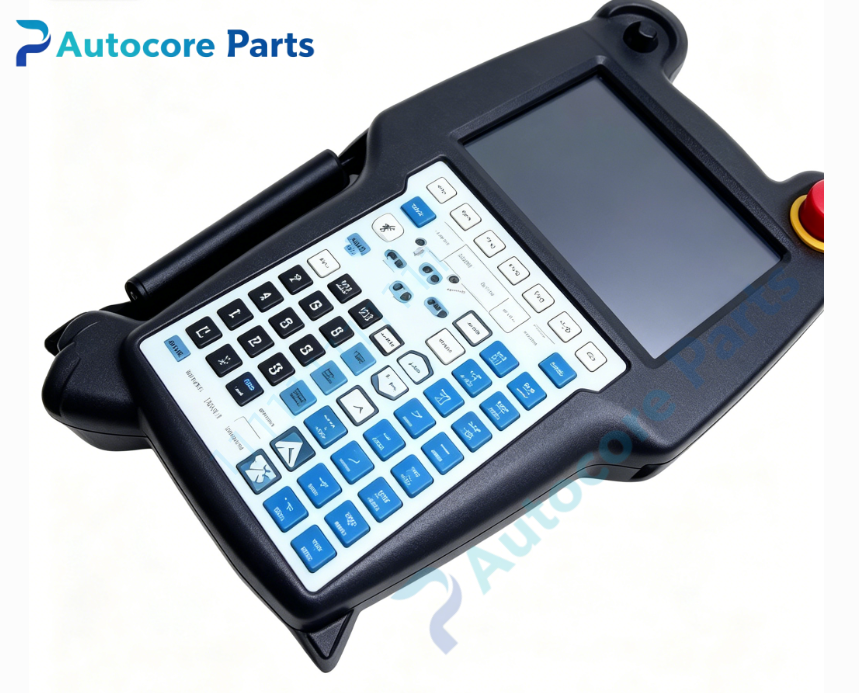

FANUC iPendant Robot Teach Pendant P/N A05B-2255

Technical Specifications

Model:A05B-2255 (series base number,common suffix:C101,C102 etc)

Brand:FANUC

System compatibility:iPendant teach pendant series for FANUC R30iA and R30iB robot controllers. Different suffix versions have touch / non-touch and language differences. Connected to robot controller via dedicated teach pendant cable. Widely used for handling,welding,assembly FANUC robots.

Function:Handheld robot programming and operation terminal. Realizes robot manual jog movement,teach point recording,NC program editing,parameter configuration,alarm diagnosis and status monitoring. Built-in three-position deadman safety switch and emergency stop button to guarantee manual operation safety. Touch screen + physical keypad dual operation mode for some variants.

Installation:Handheld portable design,connected to robot electrical cabinet through dedicated teach pendant cable.

Interface:

‑Teach pendant communication connector

‑Color LCD display

‑Resistive touch panel (C101 version)

‑Membrane operation keyboard

‑3-position deadman safety switch

‑Red emergency stop pushbutton

‑System status LED indicators

Circuit feature:Touch detection circuit,keyboard scanning circuit,safety signal hard-wired circuit,anti-drop and vibration resistant design.

Feature:Legacy FANUC robot teach pendant series. Multiple sub models under A05B-2255 base part number,C101 with touch screen,C102 non-touch version. Common faults:touch layer failure,membrane key wear,deadman switch aging,display screen damage. Must confirm complete full part number with suffix before replacement.

Diagnostic:Damaged pendant triggers robot teach pendant communication alarm;screen shows robot running and fault information.

Power supply:24VDC supplied from robot controller

Protection class:IP54

Horizontal operating temperature:0℃ ~ +50℃

Storage temperature:-20℃ ~ +80℃

Relative humidity:5%‑80% non‑condensing

Vibration:Complies with robot workshop industrial environment requirement

Weight:0.88kg

Dimensions:240mm ×160mm ×60mm

Certification:CE

Built‑in function

A05B-2255 series iPendant teach pendant is the human-machine operation terminal for FANUC robot. It completes robot jogging,program teaching,parameter modification and fault diagnosis. Widely used for FANUC robot spare‑part replacement.

Product Brief
