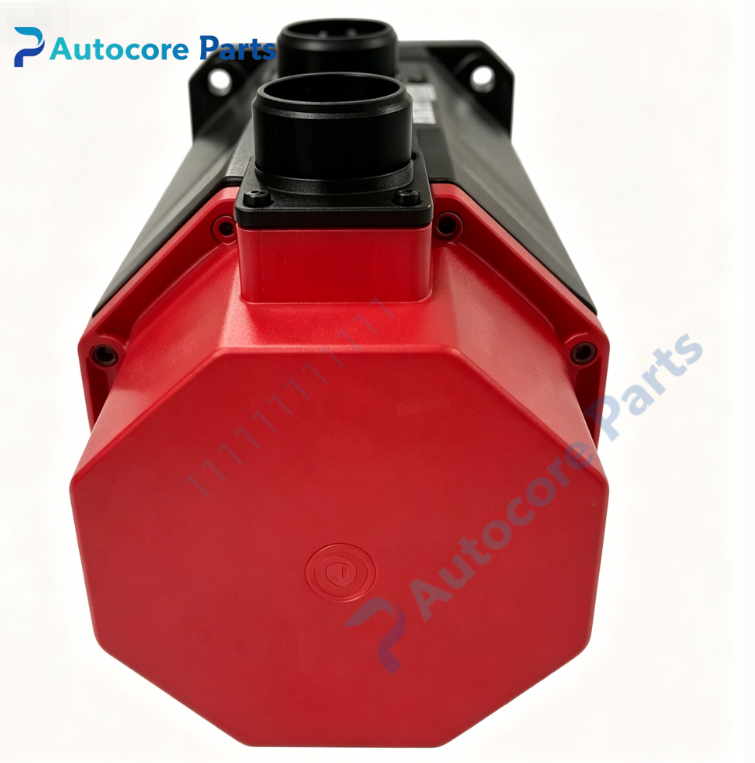

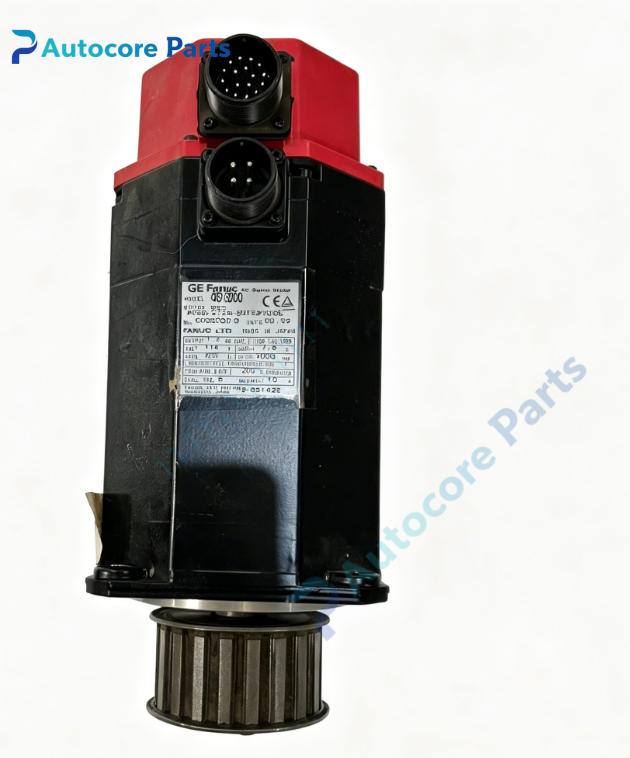

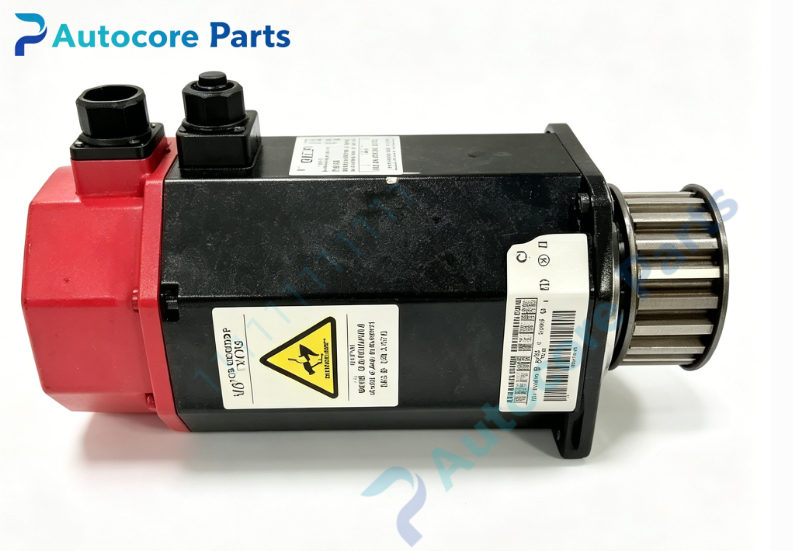

FANUC A06B-0128-B575#7008 Servo Motor

Technical Specifications

Model:A06B-0128-B575#7008

Brand:FANUC

Series:α6/3000

Rated power:1.4kW

Rated speed:3000rpm

Voltage:3-phase 114VAC

Rated current:7.5A

Stall torque:6Nm

Encoder:αA64 absolute multi-turn encoder

Shaft:straight shaft with keyway

Brake:No holding brake

Insulation class:F

Protection class:IP65

Weight:11.5kg

Dimensions:130mm ×130mm ×205mm

Certification:CE

System compatibility:α series servo motor for FANUC 0i CNC system,matched with α series servo amplifier,for CNC horizontal feed axes.#7008 represents factory shaft modification variant.

Function:Permanent magnet AC servo motor for CNC feed axis. It realizes closed-loop position and speed control via built-in αA64 absolute encoder. Absolute encoder saves position data after power off,no homing required.

Installation:Flange mount,connect power cable and encoder cable to servo amplifier.

Interface:

‑3-phase power connector

‑αA64 absolute encoder signal connector

‑Motor housing mounting flange

‑Keyed straight output shaft

Circuit feature:Built-in permanent magnet rotor,encoder sampling circuit,temperature detection circuit.

Feature:FANUC α series servo motor,#7008 version,no brake,straight shaft with keyway,αA64 absolute encoder. High torque density and fast response. Common faults:encoder damage,coil burnout,bearing wear. Use full part number including #7008 suffix for compatibility confirmation before replacement.

Diagnostic:Motor or encoder damage will trigger servo alarm,overload or position deviation alarm on CNC system.

Built‑in function

A06B-0128-B575#7008 α6/3000 servo motor provides stable high-precision closed-loop motion control for CNC feed axis,widely used for CNC spare part replacement.

Product Brief

A06B-0128-B575#7008 belongs to FANUC α series servo motor spare parts family,1.4kW α6/3000 motor with keyed straight shaft and αA64 absolute encoder,#7008 factory variant,no brake. Verify CNC system,servo amplifier and cable compatibility before ordering. Check winding insulation,encoder and bearing function during commissioning. Widely applied for CNC equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
