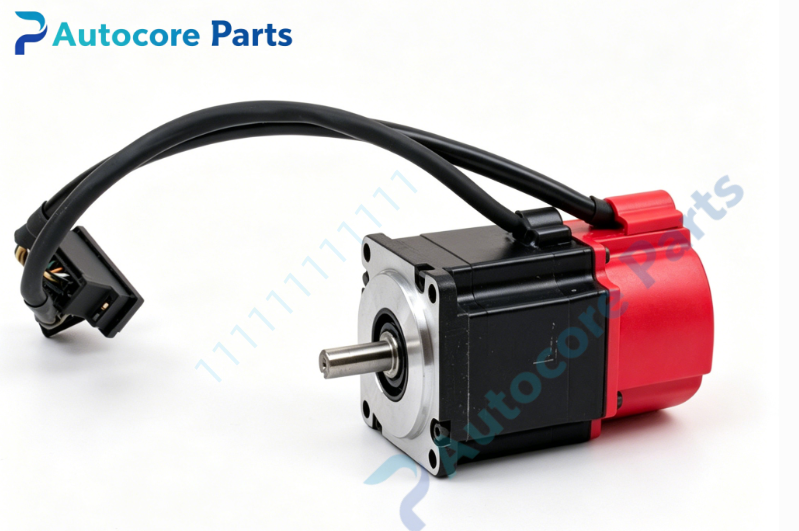

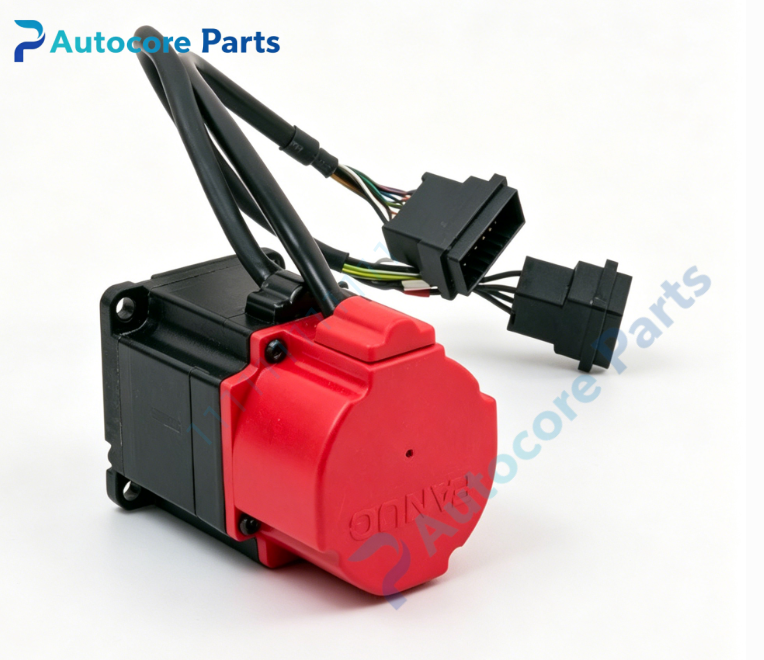

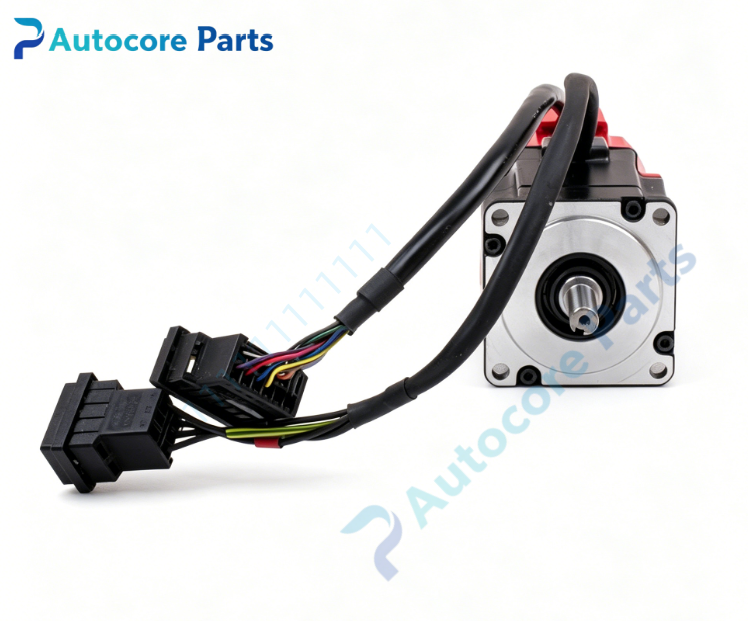

FANUC A06B-0113-B075#7008 Servo Motor

Technical Specifications

Model:A06B-0113-B075#7008

Brand:FANUC

Series:αiS 10/2000

Rated power:1.0kW

Rated speed:2000rpm

Voltage:3-phase 200~240VAC

Encoder:BiA128 absolute encoder

Shaft:straight shaft without keyway

Brake:No holding brake

Insulation class:F

Protection class:IP67

Weight:7.8kg

Dimensions:100mm ×100mm ×210mm

Certification:CE

System compatibility:αiS series servo motor for FANUC 0iD / 0iMF CNC system,matched with αiSV servo amplifier,for CNC feed axes.#7008 represents factory specification variant.

Function:Permanent magnet AC servo motor for CNC feed axis. It realizes closed-loop position and speed control via built-in BiA128 absolute encoder. Absolute encoder saves position data after power off,no homing required.

Installation:Flange mount,connect power cable and encoder cable to servo amplifier.

Interface:

‑3-phase power connector

‑BiA128 absolute encoder signal connector

‑Motor housing mounting flange

‑Smooth straight output shaft

Circuit feature:Built-in permanent magnet rotor,encoder sampling circuit,temperature detection circuit.

Feature:FANUC αiS low inertia servo motor,#7008 factory variant,no brake. Absolute encoder removes homing operation after power restart. Smooth shaft design. Common faults:encoder damage,coil burnout,bearing wear. Use full part number including #7008 suffix for compatibility confirmation before replacement.

Diagnostic:Motor or encoder damage will trigger servo alarm,overload or position deviation alarm on CNC system.

Built‑in function

A06B-0113-B075#7008 αiS10/2000 servo motor provides stable high-precision closed-loop motion control for CNC feed axis,widely used for CNC spare part replacement.

Product Brief

A06B-0113-B075#7008 belongs to FANUC A06B servo motor spare parts family,1.0kW αiS10/2000 motor with smooth shaft and BiA128 absolute encoder,#7008 factory variant,no brake. Verify CNC system,servo amplifier and cable compatibility before ordering. Check winding insulation,encoder and bearing function during commissioning. Widely applied for CNC equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
