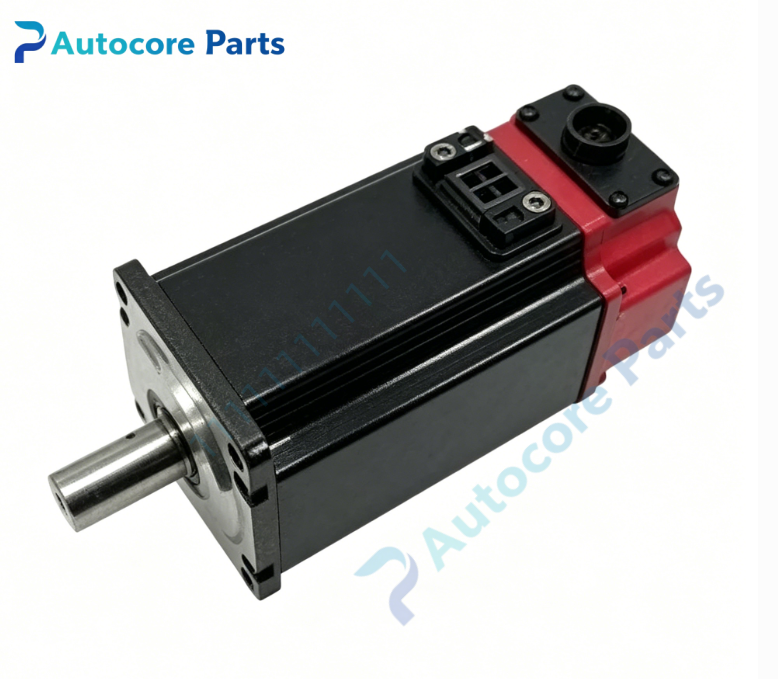

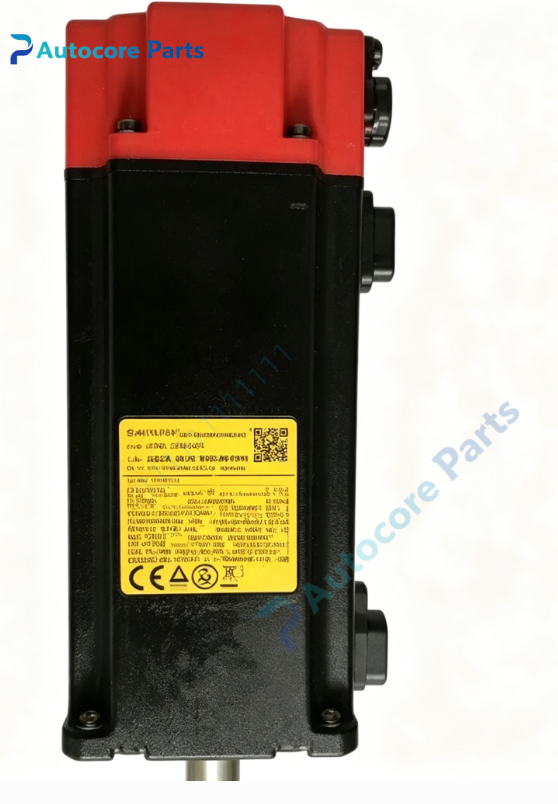

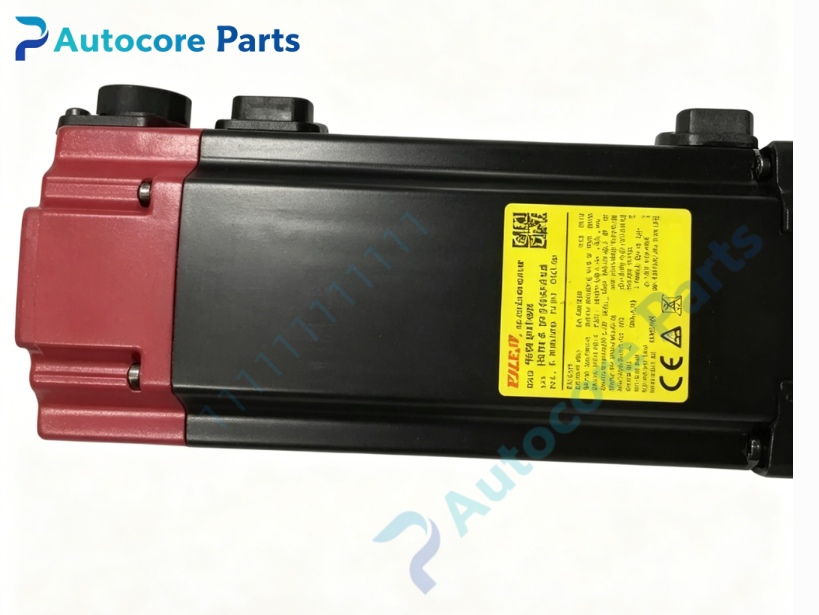

FANUC A06B-0116-B403#0100 Servo Motor

Technical Specifications

Model:A06B-0116-B403#0100

Brand:FANUC

Series:BiS1/6000

Rated power:1.0kW

Rated speed:6000rpm

Voltage:3-phase 200~240VAC

Encoder:BiA128 absolute encoder

Shaft:straight shaft without keyway

Brake:Built-in 24VDC electromagnetic holding brake

Insulation class:F

Protection class:IP67

Weight:7.1kg

Dimensions:80mm ×80mm ×230mm

Certification:CE

System compatibility:BiS series servo motor for FANUC 0iD / 0iMF CNC system,matched with αiSV servo amplifier,for CNC vertical feed axes.#0100 represents factory specification variant.

Function:Permanent magnet AC servo motor for CNC feed axis. It realizes closed-loop position and speed control via built-in BiA128 absolute encoder. Absolute encoder saves position data after power off,no homing required. Built-in brake locks shaft to prevent load dropping during power failure.

Installation:Flange mount,connect power cable,encoder cable and brake control cable to servo amplifier.

Interface:

‑3-phase power connector

‑BiA128 absolute encoder signal connector

‑24VDC brake power terminal

‑Motor housing mounting flange

‑Smooth straight output shaft

Circuit feature:Built-in permanent magnet rotor,encoder sampling circuit,temperature detection circuit,brake coil drive circuit.

Feature:FANUC BiS low inertia servo motor,#0100 factory variant,with holding brake. Absolute encoder removes homing operation after power restart. Smooth shaft design. Common faults:encoder damage,coil burnout,bearing wear,brake pad aging. Use full part number including #0100 suffix for compatibility confirmation before replacement.

Diagnostic:Motor or encoder damage will trigger servo alarm,overload or position deviation alarm on CNC system. Brake failure may cause vertical axis drop risk.

Built‑in function

A06B-0116-B403#0100 BiS1/6000 servo motor provides stable high-precision closed-loop motion control and power-off holding function for CNC vertical feed axis,widely used for CNC spare part replacement.

Product Brief

A06B-0116-B403#0100 belongs to FANUC A06B servo motor spare parts family,1.0kW BiS1/6000 motor with smooth shaft,BiA128 absolute encoder and holding brake,#0100 factory variant. Verify CNC system,servo amplifier and cable compatibility before ordering. Check winding insulation,encoder,bearing and brake function during commissioning. Widely applied for CNC equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
