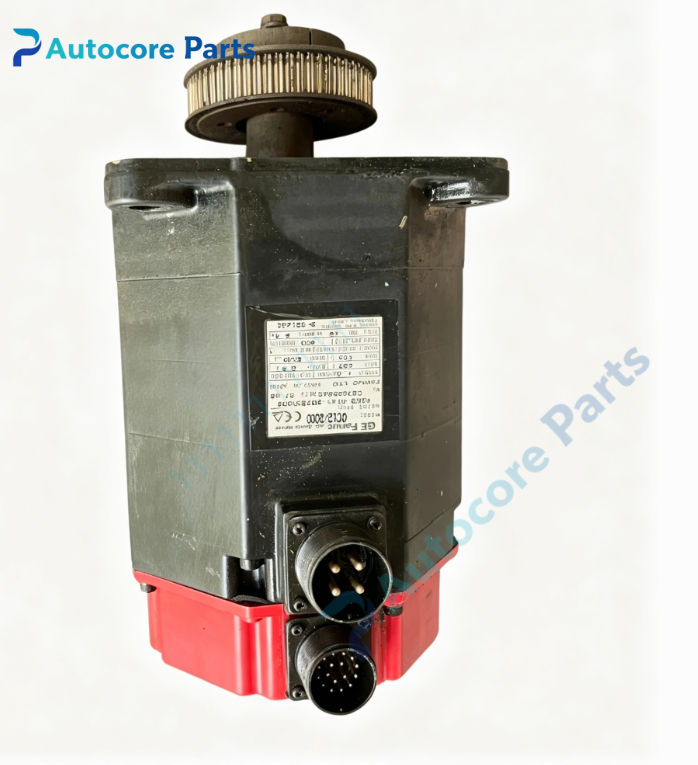

FANUC A06B-0141-B075#7008 Servo Motor

Technical Specifications

Model:A06B-0141-B075#7008

Brand:FANUC

Series:αC12/2000

Rated power:2.1kW

Rated speed:2000rpm

Voltage:3-phase 155VAC

Rated current:8.8A

Stall torque:12Nm

Encoder:αA64 absolute multi-turn encoder

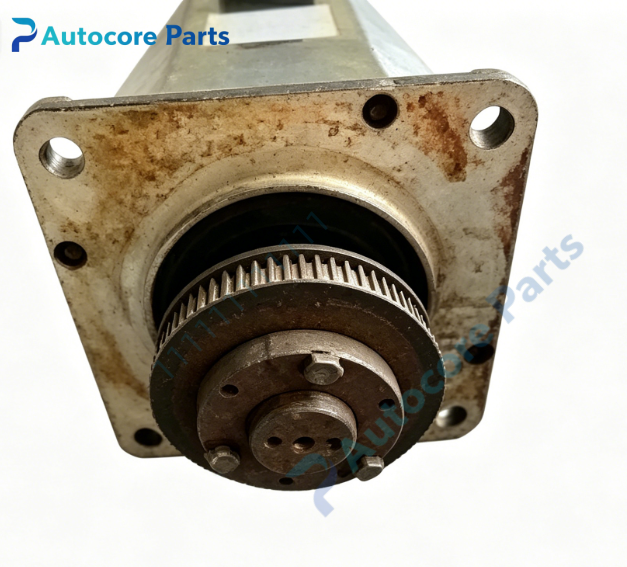

Shaft:straight shaft with keyway

Brake:No holding brake

Insulation class:F

Protection class:IP65

Weight:14.5kg

Dimensions:130mm ×130mm ×235mm

Certification:CE

System compatibility:α series servo motor for FANUC 0i CNC system,matched with α series servo amplifier,for CNC feed axes.#7008 represents factory shaft modified variant,changed taper shaft to keyed straight shaft.

Function:Permanent magnet AC servo motor for CNC feed axis. It realizes closed-loop position and speed control via built-in αA64 absolute encoder. Absolute encoder saves position data after power off,no homing required.

Installation:Flange mount,connect power cable and encoder cable to servo amplifier.

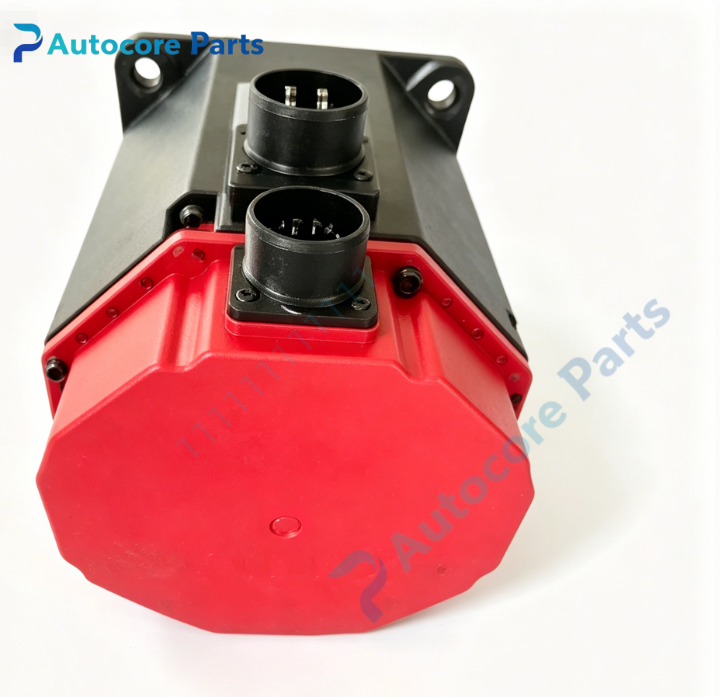

Interface:

‑3-phase power connector

‑αA64 absolute encoder signal connector

‑Motor housing mounting flange

‑Keyed straight output shaft

Circuit feature:Built-in permanent magnet rotor,encoder sampling circuit,temperature detection circuit.

Feature:FANUC α series red cap servo motor,#7008 factory modified version,no brake,straight key shaft,αA64 absolute encoder. High torque output,stable running. Common faults:encoder damage,coil burnout,bearing wear. Use full part number including #7008 suffix for compatibility confirmation before replacement.

Diagnostic:Motor or encoder damage will trigger servo alarm,overload or position deviation alarm on CNC system.

Built‑in function

A06B-0141-B075#7008 αC12/2000 servo motor provides stable high-precision closed-loop motion control for CNC feed axis,widely used for CNC spare part replacement.

Product Brief

A06B-0141-B075#7008 belongs to FANUC α series red cap servo motor spare parts family,2.1kW αC12/2000 motor with keyed straight shaft and αA64 absolute encoder,#7008 factory variant,no brake. Verify CNC system,servo amplifier and cable compatibility before ordering. Check winding insulation,encoder and bearing function during commissioning. Widely applied for CNC equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
