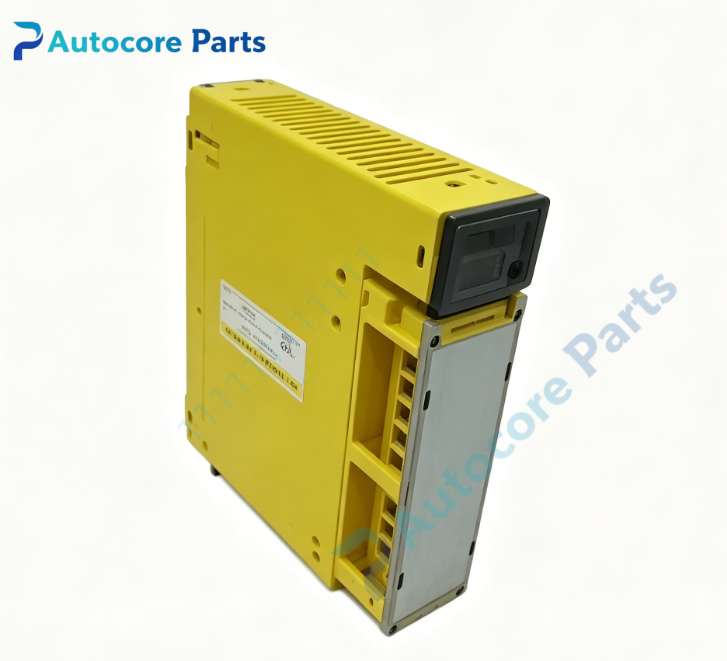

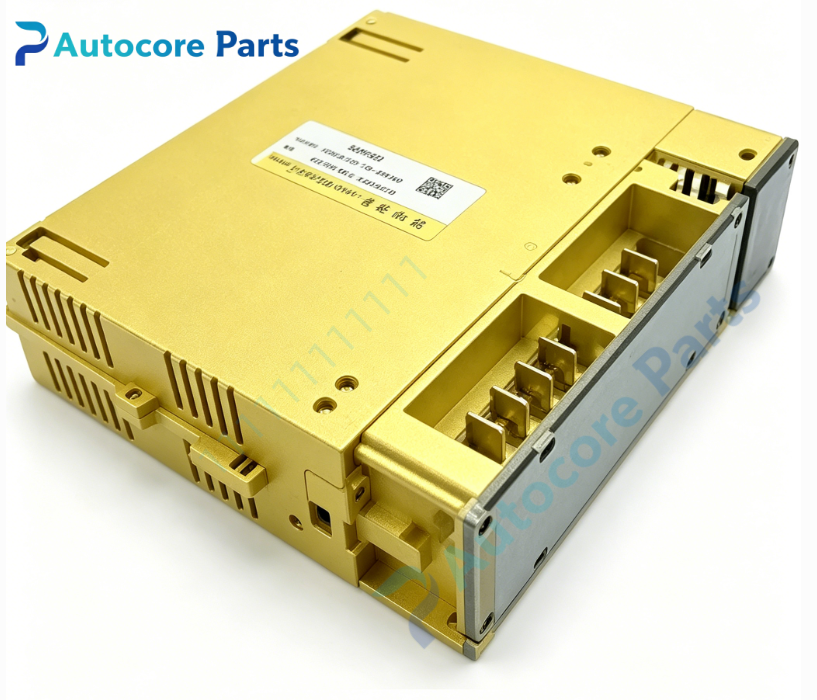

FANUC ADA02B 2CH Analog Input Module P/N A03B-0819-C060

Technical Specifications

Model:A03B-0819-C060

Brand:FANUC

System compatibility:ADA02B 2-channel analog input module for FANUC Series16i,Series18i,Series21i CNC systems. Plug-in module for A03B-0819 ABU05A and ABU10A I/O base rack. Widely used on CNC lathes and vertical machining centers.

Function:2-channel analog signal acquisition module. Collects analog signals from pressure, temperature and flow sensors. Supports ±10V voltage signal input,converts analog signals into digital data and transmits to CNC host through I/O Link bus.

Installation:Plug into the slot of ABU series I/O base rack,screw terminal block for field sensor wiring.

Interface:

‑Backplane bus connector for ABU I/O rack

‑2 differential analog input channels

‑Screw terminal block for sensor wiring

‑LED channel status indicators

‑24VDC power supply terminal

Circuit feature:Isolated analog sampling circuit,anti-interference filter,overvoltage protection,surge suppression for each channel.

Feature:Discontinued legacy FANUC analog I/O module. Compact 2-channel design for applications requiring fewer analog points. Common faults:signal drift,terminal corrosion,ADC circuit damage. Confirm I/O base rack and CNC system before replacement.

Diagnostic:CNC system triggers analog acquisition alarm when module fails;LED indicators display each channel working condition.

Power supply:24VDC

Protection class:IP20

Horizontal operating temperature:0℃ ~ +55℃

Storage temperature:-20℃ ~ +80℃

Relative humidity:5%‑90% non‑condensing

Vibration:Complies with machine tool industrial environmental requirement

Weight:0.34kg

Dimensions:130mm ×85mm ×30mm

Certification:CE,UL

Built‑in function

A03B-0819-C060 ADA02B analog input module collects field analog sensor signals and transmits converted digital data to FANUC CNC controller. Widely used for CNC machine electrical cabinet spare‑part replacement.

Product Brief

A03B-0819-C060 belongs to FANUC A03B series I/O spare parts family,ADA02B 2-channel analog input module. Verify ABU base rack and CNC system software version before ordering. Check sensor wiring and grounding during commissioning. Widely applied for CNC equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
