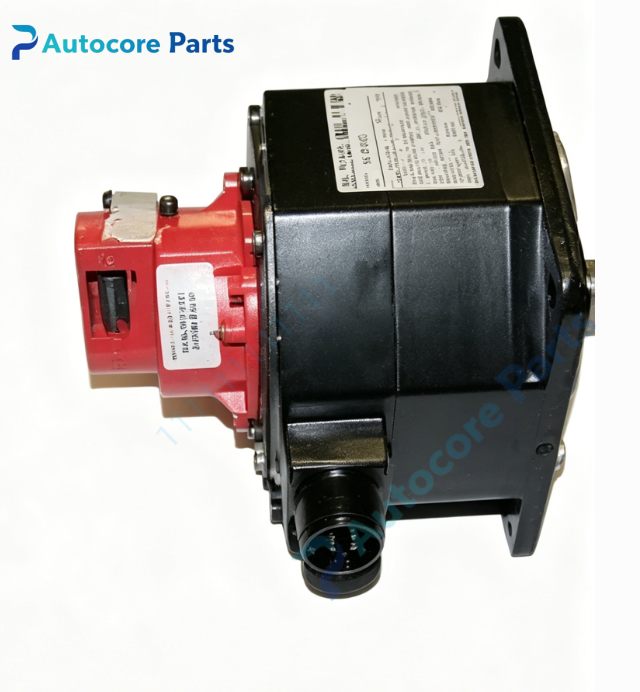

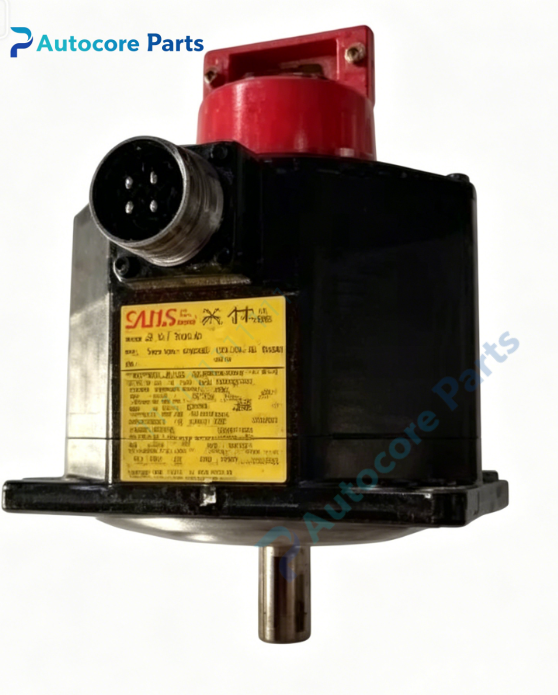

FANUC β B3/3000 AC Servo Motor P/N A06B-0033-B075#7008

Technical Specifications

Model:A06B-0033-B075#7008

Brand:FANUC

Series:β B3/3000

Rated power:1.0kW

Rated speed:3000rpm

Stall torque:3Nm

Rated current:5.3A

Stall current:5.8A

Voltage:3-phase 191V,amplifier supply 200~230VAC

Frequency:200Hz

Pole:8 poles

Encoder:A32B absolute encoder

Shaft:straight shaft with keyway (#7008 variant)

Insulation class:F

Protection class:IP65

Weight:4.8kg

Dimensions:140mm ×140mm ×180mm

Certification:CE

System compatibility:β series AC servo motor for FANUC 0i / 16i / 18i CNC system,matched with βi servo amplifier,used for CNC machine tool feed axes.

Function:Permanent magnet AC servo motor for CNC feed axis. Realizes closed-loop position and speed control via built-in A32B absolute encoder. Delivers stable torque output for linear or rotary feed motion of machine tool slides. #7008 means straight shaft with keyway for load connection.

Installation:Flange mount,connect power cable and encoder cable to servo amplifier.

Interface:

‑3-phase power connector

‑A32B absolute encoder signal connector

‑Motor housing mounting flange

‑Keyed straight output shaft

Circuit feature:Built-in permanent magnet rotor,encoder signal sampling circuit,thermal temperature detection circuit.

Feature:Legacy discontinued FANUC β series compact servo motor,#7008 keyed shaft variant. Absolute encoder retains position data after power off,no homing required after restart. Common faults:encoder damage,coil burnout,shaft bearing wear,magnet demagnetization. Verify CNC controller and servo amplifier model before replacement.

Diagnostic:Motor or encoder failure triggers axis servo alarm,overload or position deviation alarm in CNC system.

Built‑in function

A06B-0033-B075#7008 β B3/3000 servo motor provides precision closed-loop motion control for CNC machine feed axis. Widely used for CNC machine spare‑part replacement.

Product Brief

A06B-0033-B075#7008 belongs to FANUC A06B servo motor spare parts family,1.0kW β B3/3000 motor with keyed straight shaft and A32B absolute encoder. Verify CNC system,servo amplifier and cable compatibility before ordering. Check winding insulation,encoder and bearing function during commissioning. Widely applied for CNC equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
