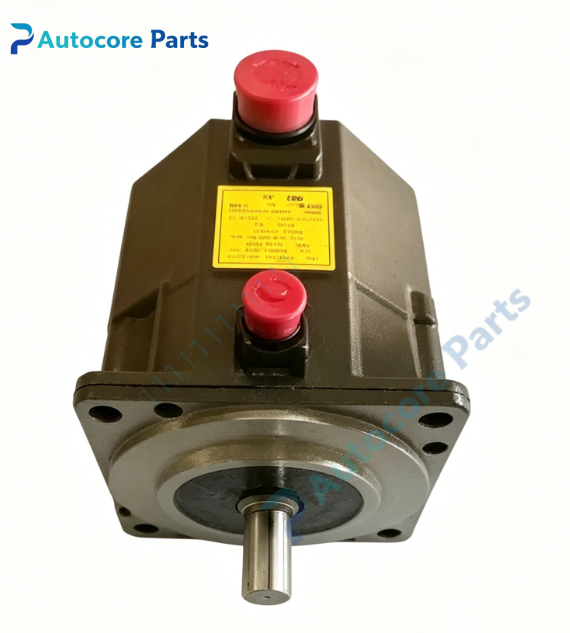

FANUC β B6/2000 AC Servo Motor With Brake P/N A06B-0034-B175#7008

Technical Specifications

Model:A06B-0034-B175#7008

Brand:FANUC

Series:β B6/2000

Rated power:0.9kW

Rated speed:2000rpm

Stall torque:6Nm

Rated current:4.7A

Stall current:5.6A

Voltage:3-phase 199V,amplifier supply 200~230VAC

Frequency:133Hz

Encoder:A32B absolute encoder

Shaft:straight shaft with keyway (#7008 variant)

Brake:Built-in 24VDC electromagnetic holding brake

Insulation class:F

Protection class:IP65

Weight:9.2kg

Dimensions:160mm ×160mm ×225mm

Certification:CE

System compatibility:β series AC servo motor for FANUC 0i / 16i / 18i CNC system,matched with βi servo amplifier,used for CNC machine heavy-load vertical feed axes.

Function:Permanent magnet AC servo motor for CNC feed axis. Realizes closed-loop position and speed control via built-in A32B absolute encoder. Integrated electromagnetic holding brake locks shaft upon power loss to prevent vertical axis sliding. #7008 stands for straight shaft with keyway for coupling connection.

Installation:Flange mount,connect 3-phase power cable,encoder cable and brake control cable to servo amplifier.

Interface:

‑3-phase power connector

‑A32B absolute encoder signal connector

‑24VDC brake power terminal

‑Motor housing mounting flange

‑Keyed straight output shaft

Circuit feature:Built-in permanent magnet rotor,encoder signal sampling circuit,thermal temperature detection circuit,brake coil drive circuit.

Feature:Legacy discontinued FANUC β series high torque servo motor with built-in holding brake,#7008 keyed shaft variant. Absolute encoder keeps position data after power off,no homing required after restart. Brake only for static holding,not for dynamic braking. Common faults:encoder failure,coil burnout,bearing wear,brake pad abrasion. Verify CNC controller and servo amplifier before replacement.

Diagnostic:Motor or encoder damage triggers servo alarm,overload or position deviation alarm;brake malfunction leads to vertical axis drop or brake release alarm.

Built‑in function

A06B-0034-B175#7008 β B6/2000 servo motor delivers high-torque precision closed-loop motion control and power-off holding function for CNC heavy load vertical feed axis. Widely used for CNC machine spare‑part replacement.

Product Brief

A06B-0034-B175#7008 belongs to FANUC A06B servo motor spare parts family,0.9kW β B6/2000 motor with holding brake,keyed straight shaft and A32B absolute encoder. Verify CNC system,servo amplifier and cable compatibility before ordering. Check winding insulation,encoder,bearing and brake function during commissioning. Widely applied for CNC equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
