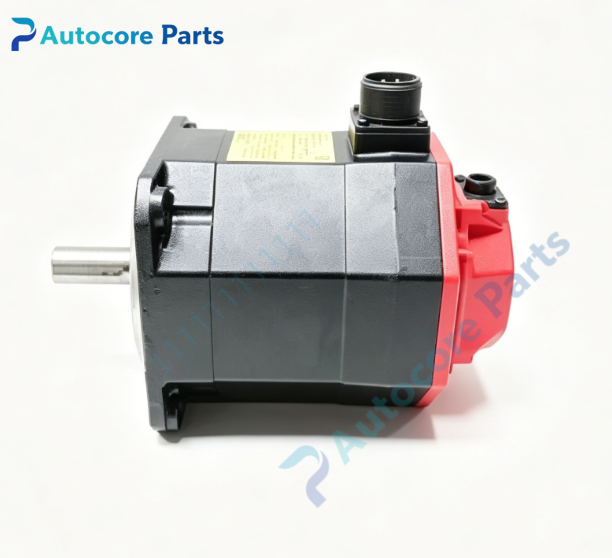

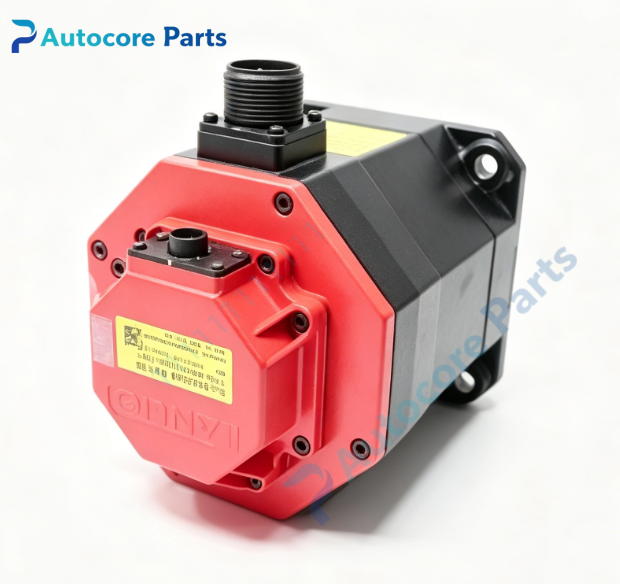

FANUC βiS8/3000 AC Servo Motor P/N A06B-0075-B203#0100

Technical Specifications

Model:A06B-0075-B203#0100

Brand:FANUC

Series:βiS8/3000

Rated power:1.2kW

Rated speed:2000rpm

Stall torque:7Nm

Rated current:4.9A

Voltage:3-phase,amplifier supply 200~240VAC

Frequency:133Hz

Pole:8 poles

Encoder:BiA128 absolute encoder

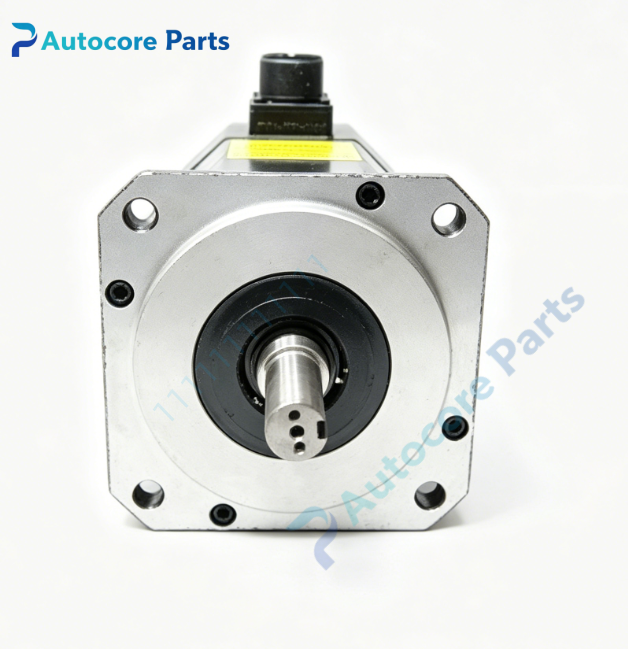

Shaft:straight shaft with keyway

Brake:No holding brake

Insulation class:F

Protection class:IP67

Weight:7.4kg

Dimensions:140mm ×140mm ×210mm

Certification:CE

System compatibility:βiS series AC servo motor for FANUC 0iD / 0iMF CNC system,matched with βiSV servo amplifier,used for CNC machine heavy load feed axes. #0100 represents factory specification variant.

Function:Permanent magnet AC servo motor for CNC feed axis. Realizes closed-loop position and speed control via built-in BiA128 absolute encoder. Absolute encoder retains position data after power cycle, no homing required. Keyed straight shaft for coupling connection.

Installation:Flange mount,connect power cable and encoder cable to servo amplifier.

Interface:

‑3-phase power connector

‑BiA128 absolute encoder signal connector

‑Motor housing mounting flange

‑Keyed straight output shaft

Circuit feature:Built-in permanent magnet rotor,encoder signal sampling circuit,thermal temperature detection circuit.

Feature:FANUC βiS large inertia servo motor,#0100 specification variant,no brake design. Absolute encoder eliminates homing operation after power restart. Keyed straight shaft for convenient assembly. Common faults:encoder damage,coil burnout,shaft bearing wear,magnet demagnetization. Use full part number including #0100 suffix for compatibility confirmation before replacement.

Diagnostic:Motor or encoder failure triggers axis servo alarm,overload or position deviation alarm in CNC system.

Built‑in function

A06B-0075-B203#0100 βiS8/3000 servo motor provides high-torque stable precision closed-loop motion control for heavy load CNC machine feed axis. Widely used for CNC machine spare‑part replacement.

Product Brief

A06B-0075-B203#0100 belongs to FANUC A06B servo motor spare parts family,1.2kW βiS8/3000 motor with keyed straight shaft and BiA128 absolute encoder,#0100 factory variant,no brake. Verify CNC system,servo amplifier and cable compatibility before ordering. Check winding insulation,encoder and bearing function during commissioning. Widely applied for CNC equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
