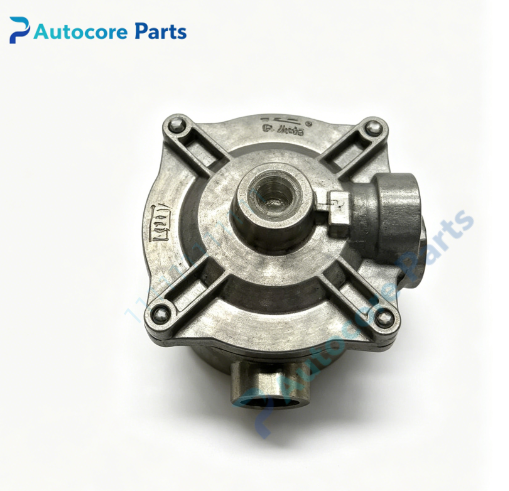

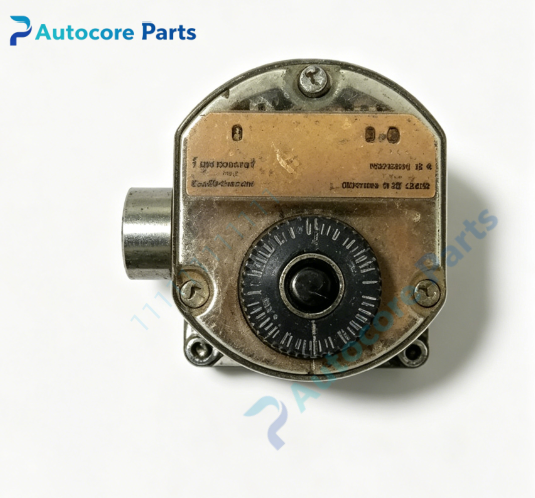

Fireye PSA-2-5F Pressure Switch

Technical Specifications

Model：PSA-2-5F Brand：Fireye Product Type: Adjustable air/gas pressure switch for burner safety interlock

Pressure Feature:

• Adjustment range: 0.4 ~ 2.5 IN WC (Inch Water Column)

• Differential pressure: 0.08 ~ 0.16 IN WC

• Pressure port: 1/4" barb connection for rubber tubing

• Operation: Contact opens / closes when pressure reaches set threshold

• Media: Combustion air, natural gas, non-corrosive gas

Electrical Parameters:

• Contact type: SPDT

• Contact rating: 120VAC 10A, 240VAC 5A

• Terminal: Internal wiring terminal for safety interlock circuit

• Circuit function: Air proving, gas pressure low/high limit protection

Mechanical & Structure:

• Housing: Die cast metal enclosure

• Adjustment: Central rotary knob with transparent protective cover

• Diaphragm: Elastomer pressure sensing diaphragm

• Mounting: Surface mount installation

Environmental:

• Operating temperature: -40℃ ~ +60℃

• Ambient humidity:0~85% non-condensing

• Certification: UL, FM approved

• Weight: Approx 0.42kg

System compatibilityPSA-2-5F belongs to Fireye combustion safety accessory family. Compatible with Fireye SB series, NX series burner management controllers. Applied on gas / oil industrial boilers, commercial burners and process furnaces. Used for combustion air pressure proving and gas pressure monitoring. Widely used as spare replacement for burner safety interlock system.

FunctionPSA-2-5F is mechanical air/gas pressure switch manufactured by Fireye. It senses gas or combustion air pressure via internal elastomer diaphragm. User can rotate the knob to set pressure threshold. When measured pressure exceeds or drops below setpoint, SPDT contact changes state to send signal to burner controller. It verifies blower air pressure before ignition and provides gas pressure limit protection to cut off burner firing when abnormal pressure occurs. Widely deployed for industrial boiler combustion safety interlock and spare replacement.

InstallationFollow lockout/tagout safety procedure before installation. Mount PSA-2-5F on cabinet wall. Connect pressure sampling tube to pressure port, route tubing to air duct or gas pipeline pressure tap strictly follow Fireye installation manual. Rotate adjustment knob to set target pressure value, then perform pressure trip test during commissioning.

Interface1/4" barbed pressure port,adjustment knob with transparent cover,SPDT wiring terminals,die cast metal housing for Fireye PSA-2-5F.

FeatureOriginal Fireye PSA-2-5F air and gas pressure switch,0.4~2.5IN WC adjustable range,SPDT electrical contacts,UL & FM safety certified. This spare unit is used for industrial boiler burner air proving,gas pressure limit safety interlock maintenance and hardware replacement.

DiagnosticSwitch does not trip: Inspect sampling tube blockage or leakage, re-calibrate pressure setpoint. Unstable contact action: Check diaphragm aging, excessive pressure pulsation in pipeline. No continuity: Inspect internal contact burn damage and wiring terminal loose connection. Failed pressure holding: Verify tubing crack and air leakage on sampling path.

Product BriefPSA-2-5F is Fireye adjustable air/gas pressure switch with 0.4~2.5IN WC range,matched with burner management controllers for air proving and gas pressure safety interlock,classic spare for industrial combustion safety system.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
