Fireye PXMS-15 Pressure Transmitter

Technical Specifications

Model：PXMS-15 Brand：Fireye Product Type: Piezoresistive pressure transmitter for combustion control system

Measurement Feature:

• Pressure measuring range: 0 ~ 15 PSI (0 ~ 1 bar)

• Signal output: 4-20mA two-wire linear analog signal

• Process connection: 1/2" NPT male thread

• Wetted material: 316L stainless steel isolation diaphragm

• Circuit design: Non self-check type

Electrical Parameters:

• Supply voltage: 24VDC

• Loop power: Two-wire current loop

• Signal definition: 4mA corresponds to 0PSI, 20mA corresponds to full scale 15PSI

• Temperature compensation: Built-in circuit to reduce reading drift

Mechanical & Structure:

• Sensing element: Oil-filled piezoresistive silicon chip

• Housing: Compact stainless steel enclosure

• Cable: Integrated signal cable assembly

• Compatible media: Non-corrosive gas, steam

Environmental:

• Operating temperature: -40℃ ~ +85℃

• Ambient humidity:0~85% non-condensing

• Certification: UL, FM approved

• Weight: Approx 0.34kg

System compatibilityPXMS-15 belongs to Fireye PXMS pressure transmitter family. Compatible with Fireye NX6100, NX6300 Nexus integrated burner controllers. Applied on low pressure hot water boilers, small industrial steam boilers and process furnaces. Non self-check design, suitable for burners cycling regularly to validate safety circuit. Widely used for combustion pressure measurement spare replacement.

FunctionPXMS-15 is pressure transmitter manufactured by Fireye for burner control systems. It detects medium pressure via 316L stainless steel isolation diaphragm, converts pressure value into standard 4-20mA analog signal and transmits to Nexus burner controller. Built-in temperature compensation minimizes measurement deviation under fluctuating ambient temperature. It provides real-time pressure feedback for fuel-air ratio adjustment and boiler low-pressure interlock protection. Widely deployed for industrial boiler pressure monitoring and spare replacement.

InstallationFollow lockout/tagout safety procedure before installation. Mount PXMS-15 on pressure tapping port with 1/2"NPT thread. Keep suitable installation orientation to prevent condensate accumulation on sensing diaphragm. Run shielded two-wire cable to connect transmitter and NX series controller terminals strictly follow Fireye wiring manual. Perform zero calibration and pressure signal test after commissioning.

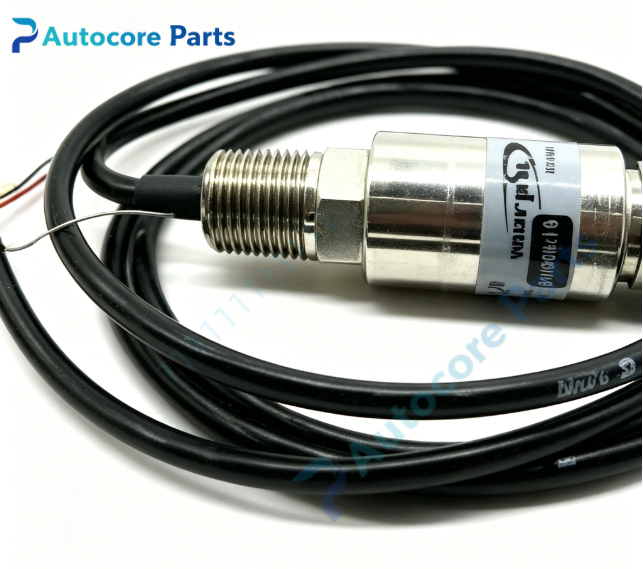

Interface316L stainless steel sensing diaphragm,1/2"NPT process thread,two-core 4-20mA signal cable,stainless steel transmitter housing for Fireye PXMS-15.

FeatureOriginal Fireye PXMS-15 pressure transmitter,0~15PSI low measuring range,4-20mA two-wire output,316L wetted parts,UL & FM safety certified. This spare unit is used for low pressure industrial boiler pressure measurement,combustion control maintenance and hardware replacement.

DiagnosticNo output signal: Inspect 24VDC power supply,cable breakage and terminal connection. Inaccurate pressure reading: Perform zero calibration,check diaphragm contamination and clogging. Unstable signal: Check cable shielding, furnace vibration and high temperature radiation. Signal stuck at minimum value: Inspect diaphragm damage caused by overpressure impact.

Product BriefPXMS-15 is Fireye PXMS series 0~15PSI pressure transmitter with 4-20mA output,matched with NX6100/NX6300 burner controllers,classic spare for low-pressure boiler combustion pressure monitoring system.
