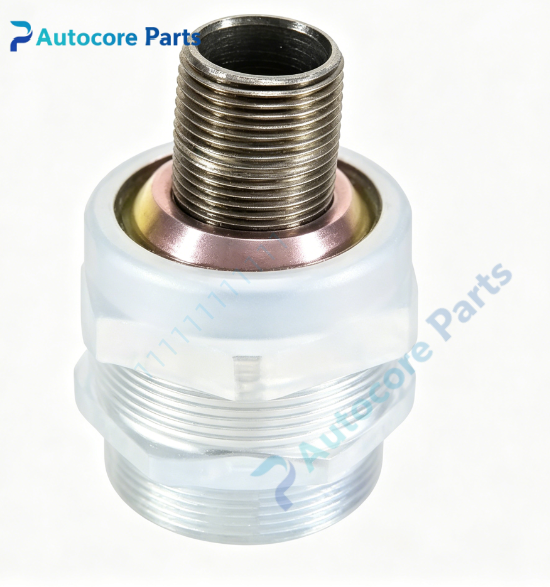

Fireye Q2625A1314 Swivel Mount Assembly

Technical Specifications

Model：Q2625A1314 Brand：Fireye Product Type: Swivel mount assembly for flame scanner, no flange included

Mount Feature:

• Structure: Two-plate swivel pivot design

• Adjustment: Multi-angle rotational alignment for scanner sighting

• Flange: Flange not included

• Compatible devices: Fireye UV / IR flame scanners

• Application: Burner observation port installation

Mechanical & Structure:

• Housing: High strength alloy metal

• Pivot: Lockable swivel joint to fix viewing angle

• Sealing: High temperature resistant gasket for furnace radiant heat isolation

• Mount thread: Matches standard scanner 1/2"NPT interface

Environmental:

• Operating temperature: -20℃ ~ +200℃

• Ambient humidity:0~85% non-condensing

• Certification: UL, FM approved

• Weight: Approx 1.2kg

System compatibilityQ2625A1314 belongs to Fireye combustion accessory family. Compatible with Fireye SB49600 series, C95xx, C97xx flame scanners. Used for gas, oil and dual fuel industrial burners, large boilers and process furnaces. It is widely used for new installation and spare replacement of flame detection system.

FunctionQ2625A1314 is lockable swivel mounting bracket manufactured by Fireye for flame scanners. It provides flexible angular adjustment, operators can precisely tune scanner sight to target flame area and lock the pivot after alignment. Without integrated flange, user can match separate flange according to furnace port size. Protect scanner from high temperature radiation and furnace vibration, stabilize flame optical signal. Widely deployed for industrial boiler flame scanner installation and spare replacement.

InstallationFollow lockout/tagout safety procedure before installation. Install Q2625A1314 swivel assembly on furnace sight port. Mount flame scanner onto this bracket, rotate swivel joint to align scanner lens to flame zone, then tighten locking bolts. Check the sight path is free from soot obstruction. Add heat insulation accessories if furnace radiant heat is heavy.

InterfaceLockable swivel pivot,scanner mounting thread,bolted connection base,high-temperature alloy metal bracket for Fireye Q2625A1314.

FeatureOriginal Fireye Q2625A1314 swivel mount assembly without flange,multi-angle adjustable pivot for flame scanner alignment,high temperature resistant,UL & FM safety certified. This spare accessory is used for industrial boiler burner flame scanner installation,position adjustment and hardware replacement.

DiagnosticFlame signal unstable: Check swivel locking bolt looseness, re-align scanner sight and retighten. Bracket overheating: Add heat insulating coupling between furnace port and mount assembly. Angle drift: Inspect pivot bolt wear, replace bracket if pivot cannot lock firmly. Soot accumulation: Clean optical path and scanner lens periodically.

Product BriefQ2625A1314 is Fireye flange-less swivel mount assembly for flame scanners,supports multi-angle adjustment for optical alignment,classic spare accessory for industrial burner flame monitoring system.
