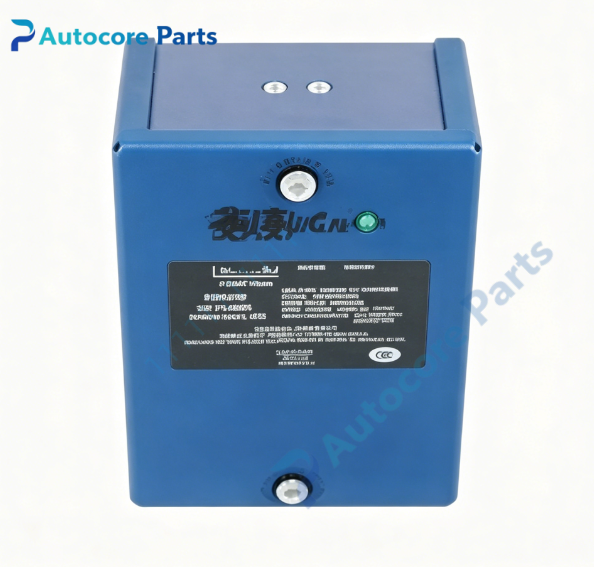

Fireye R9006M3000 Flame Monitor Panel Controller

Technical Specifications

Model：R9006M3000 Brand：Fireye Product Type: Panel-mounted flame monitor controller from R9000 series

Detection Feature:

• Flame scanner compatibility: C9506 non self-check UV flame scanners

• FFRT (Flame Failure Response Time): Configurable flame failure response timing

• Flame threshold: Adjustable flame signal sensitivity potentiometer

• Operation type: Non self-check circuit design

• Flame failure action: De-energize safety relay immediately once valid flame signal is lost

Electrical Parameters:

• Supply voltage: 120VAC, 50/60Hz

• Relay contact rating: 3A

• Relay output: Flame presence relay and marginal alarm relay

• Signal input: Raw UV flame signal input from C9506 scanner

• Terminal: Screw terminal block for scanner and interlock wiring

Mechanical & Structure:

• Housing: Blue painted metal enclosure for panel mounting

• Mounting: Panel cutout installation

• Indicator: Analog flame meter and multi LED status indicators

• Adjustment: Onboard potentiometer for flame sensitivity tuning

Environmental:

• Operating temperature: -20℃ ~ +60℃

• Ambient humidity:0~85% non-condensing

• Certification: UL, FM approved

• Weight: Approx 1.45kg

System compatibilityR9006M3000 belongs to Fireye R9000 flame monitor family. Matched exclusively with C9506 non self-check ultraviolet flame scanners. Suitable for gas, oil and dual-fuel industrial burners, medium & large boilers and process heating furnaces. It adopts non self-check design and requires regular burner cycling to verify safety circuit. Widely used for combustion safety system spare replacement.

FunctionR9006M3000 is panel-mounted flame monitor controller manufactured by Fireye. It receives raw UV flame signal from C9506 flame scanner, amplifies and processes flame signal. Operators adjust flame sensitivity via onboard potentiometer and set flame failure response time. It continuously monitors flame presence, de-energizes safety relay and triggers alarm once flame loss is detected. Built-in analog meter displays real-time flame strength for on-site diagnostic inspection. Widely deployed for industrial boiler flame monitoring and spare replacement.

InstallationFollow lockout/tagout safety procedure before installation. Cut panel opening and mount R9006M3000 on control cabinet front panel. Run shielded signal cable to connect controller and C9506 flame scanner strictly follow Fireye R9000 wiring manual. Power on, calibrate flame threshold and complete flame signal strength test during commissioning.

InterfaceOnboard analog flame meter,status LED indicators,flame signal input terminals,safety relay output terminals,sensitivity adjustment potentiometer,blue panel mount metal enclosure for Fireye R9006M3000.

FeatureOriginal Fireye R9006M3000 R9000 series panel mount flame controller,120VAC supply voltage,matched with C9506 non self-check UV scanner,adjustable flame sensitivity,UL & FM safety certified. This spare unit is used for industrial boiler burner flame signal processing maintenance and hardware replacement.

DiagnosticNo flame reading: Inspect scanner lens soot contamination, scanner wiring continuity and terminal connection. Marginal unstable flame signal: Tune flame sensitivity potentiometer,check scanner optical alignment. Relay no response: Verify 120VAC power supply and internal fuse. Intermittent flame loss alarm: Check cable shielding, furnace vibration and scanner overheating.

Product BriefR9006M3000 is Fireye R9000 panel mount flame monitor controller with 120VAC input,paired with C9506 non self-check UV scanners,classic spare for industrial burner flame safety monitoring system.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
