Fireye YZ300 Interlock Annunciator Module

Technical Specifications

Model：YZ300 Brand：Fireye Product Type: Interlock annunciator expansion module for BurnerLogix burner management system

Function Feature:

• Core function: First-out interlock fault annunciation

• Input capacity: 4 recycling interlock channels and 16 non-recycling interlock channels, total 20 interlock points

• Dual fuel monitoring, alarm for simultaneous dual fuel firing

• Customizable lockout alarm messages by YZ300P programming software

• Response speed: 66ms under purge mode, 32ms under run mode

Electrical Parameters:

• Supply voltage: 120 VAC,50/60Hz

• Power consumption:10VA

• Communication cable: ED580 series cable, max total length 8ft

• Required wiring base: 60-2874-1

Mechanical & Structure:

• Housing: Red metal enclosure, NEMA1

• Mounting: Cabinet panel mount

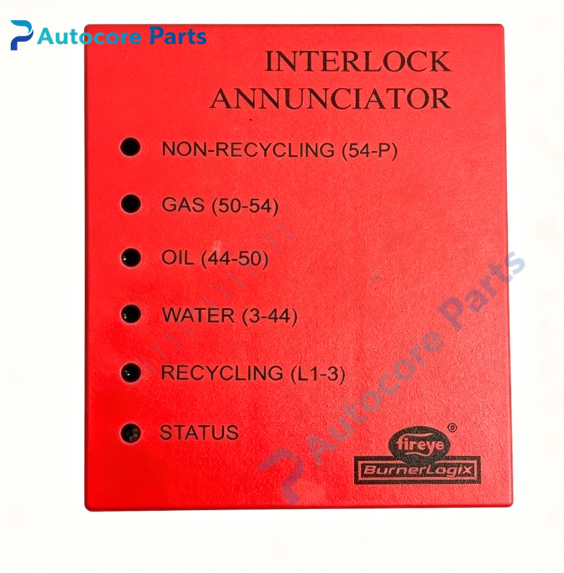

• Front panel: LED status indicators for each interlock channel

• Interface: Communication port to connect ZB110 / YB110 BurnerLogix chassis

Environmental:

• Operating temperature: -40℃ ~ +60℃

• Ambient humidity: 0~85% RH, non-condensing

• Certification: UL, FM approved

• Weight: Approx 0.5kg

System compatibility

YZ300 belongs to Fireye BurnerLogix accessory family. Compatible with Fireye ZB110, YB110 burner control chassis. Matches ED580 communication cables,60-2874-1 wiring base,BLV512 / BLL510 display units. Widely used for gas,oil boiler and furnace burner safety interlock monitoring and spare replacement.

Function

YZ300 is interlock annunciator module manufactured by Fireye. It expands interlock signal monitoring capability for BurnerLogix burner controller. It monitors up to 20 external safety interlock switches such as pressure, temperature, water level and airflow switches. When safety trip occurs, the module captures and locks the first triggered interlock point for fast troubleshooting. It transmits fault information to BurnerLogix chassis and display unit. It also monitors dual fuel status to prevent simultaneous dual fuel firing risk. Custom alarm text can be edited via YZ300P software. Widely deployed for industrial boiler and furnace burner safety interlock alarm and spare replacement.

Installation

Follow lockout/tagout safety procedure before installation. Mount YZ300 on control cabinet panel with matching wiring base 60-2874-1. Wire all external interlock limit switches to module terminal block. Connect ED580 communication cable between YZ300 and BurnerLogix chassis. Power on, configure alarm text messages via YZ300P software and BLV512/BLL510 display, test each interlock channel to verify first-out annunciation function.

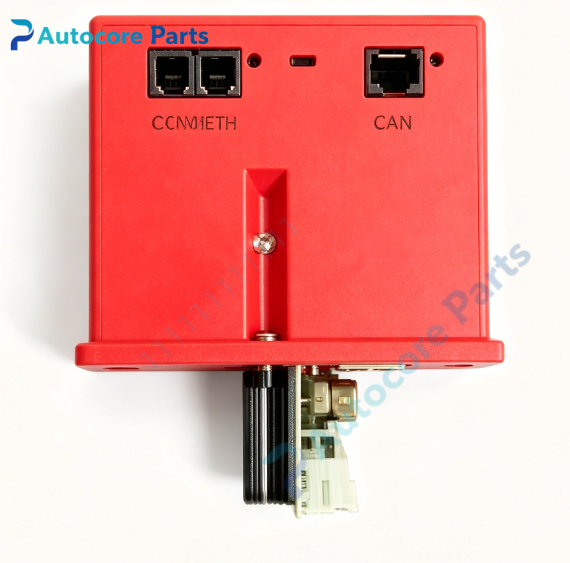

InterfaceLED indicator panel,20-channel interlock terminal block,communication cable port,120VAC power terminals,red metal enclosure for Fireye YZ300.

FeatureOriginal Fireye YZ300 120VAC interlock annunciator module,first-out fault capture,supports total 20 interlock inputs,dual fuel firing monitoring,NEMA1 metal enclosure,UL & FM safety certified. This spare unit is used for industrial boiler burner safety interlock supervision maintenance and hardware replacement.

DiagnosticNo interlock alarm display: Check communication cable continuity, module power supply and wiring base connection. Wrong first-out indication: Verify interlock switch wiring and contact status. All channels no response: Inspect 120VAC power supply and module fuse. Intermittent fault: Check loose terminal wiring, switch contact bounce or vibration interference.

Product BriefYZ300 is Fireye BurnerLogix 120VAC interlock annunciator expansion module, provides first-out fault indication for up to 20 safety interlock points, used for boiler burner safety system alarm monitoring,classic spare for industrial furnace combustion control system.

DisclaimerAll parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and replacement.
