Fireye YZ320 Interlock Annunciator Module

Technical Specifications

Model：YZ320 Brand：Fireye Product Type: Interlock annunciator expansion module for BurnerLogix burner management system

Function Feature:

• Core function: First-out interlock fault annunciation

• Input capacity: Supports up to 20 external interlock switch signals

• Fuel selection monitoring, dual fuel simultaneous firing alarm function

• Customizable lockout alarm messages via BurnerLogix display unit

• Fast response: 66ms purge mode response, 32ms run mode response

Electrical Parameters:

• Supply voltage: 230 VAC,50/60Hz

• Power consumption:10VA

• Connection cable: ED580 series communication cable,max 8ft total length

• Required wiring base: 60-2874-1

Mechanical & Structure:

• Housing: Red metal enclosure, NEMA1

• Mounting: Cabinet panel mount

• Front panel: LED status indicator for each interlock channel

• Interface: Communication port to connect ZB / YB BurnerLogix chassis

Environmental:

• Operating temperature: -40℃ ~ +60℃

• Ambient humidity: 0~85% non-condensing

• Certification: UL, FM approved

• Weight: Approx 0.5kg

System compatibility

YZ320 belongs to Fireye BurnerLogix accessory family. Compatible with Fireye ZB110,ZB230,YB110,YB230 burner control chassis. Works with ED580 communication cables,60-2874-1 wiring base,BLV512 / BLL510 display modules. Widely used for gas,oil boiler and furnace burner safety interlock monitoring and spare replacement.

Function

YZ320 is interlock annunciator module manufactured by Fireye. It expands interlock signal monitoring capability for BurnerLogix burner controller. It monitors up to 20 external safety interlock switches such as pressure, temperature, water level and airflow switches. When safety trip occurs, the module identifies and locks the first triggered interlock point for fast troubleshooting. It communicates fault information to BurnerLogix chassis and display unit. It also monitors dual fuel status to prevent simultaneous dual fuel firing risk. Widely deployed for industrial boiler and furnace burner safety interlock alarm and spare replacement.

Installation

Follow lockout/tagout safety procedure before installation. Mount YZ320 on control cabinet panel with matching wiring base 60-2874-1. Wire all external interlock limit switches to module terminal block. Connect ED580 communication cable between YZ320 and BurnerLogix chassis. Power on, configure alarm text messages via BLV512/BLL510 display, test each interlock channel to verify first-out annunciation function.

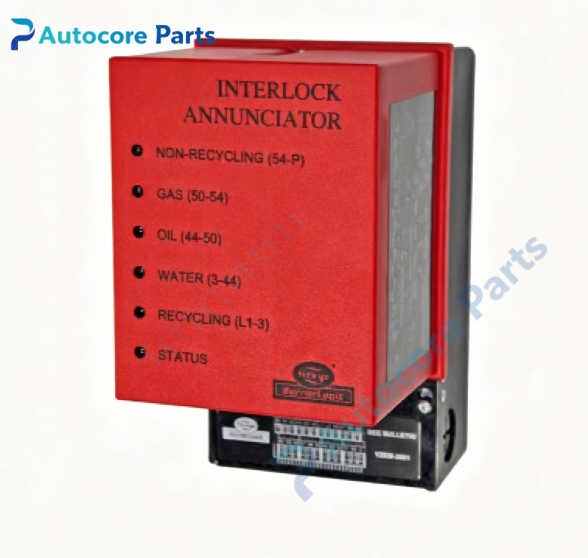

InterfaceLED indicator panel,20-channel interlock terminal block,communication cable port,230VAC power terminals,metal enclosure for Fireye YZ320.

FeatureOriginal Fireye YZ320 230VAC interlock annunciator module,first-out fault capture,supports 20 interlock inputs,dual fuel monitoring,NEMA1 enclosure,UL & FM safety certified. This spare unit is used for industrial boiler burner safety interlock supervision maintenance and hardware replacement.

DiagnosticNo interlock alarm display: Check communication cable continuity, module power supply and wiring base connection. Wrong first-out indication: Verify interlock switch wiring and contact status. All channels no response: Inspect 230VAC power supply and module fuse. Intermittent fault: Check loose terminal wiring, switch contact bounce or vibration interference.

Product BriefYZ320 is Fireye BurnerLogix 230VAC interlock annunciator expansion module, provides first-out fault indication for up to 20 safety interlock points, used for boiler burner safety system alarm monitoring,classic spare for industrial furnace combustion control system.
