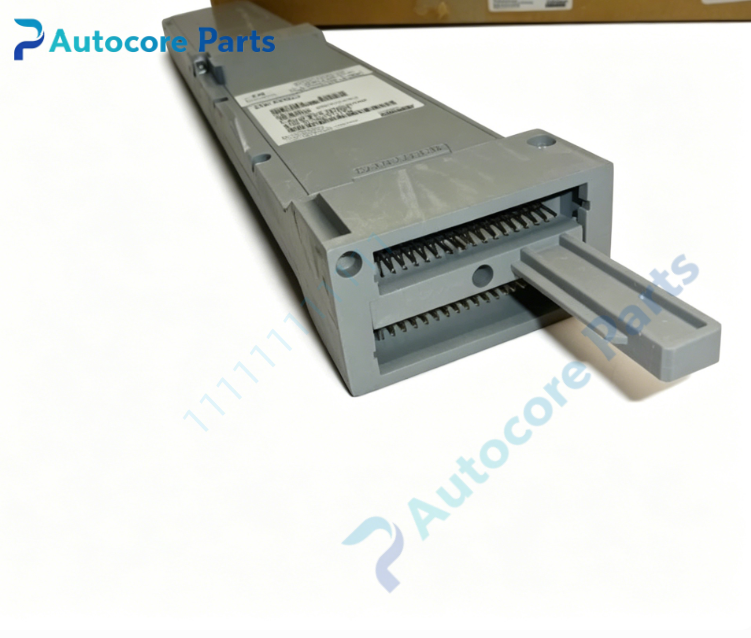

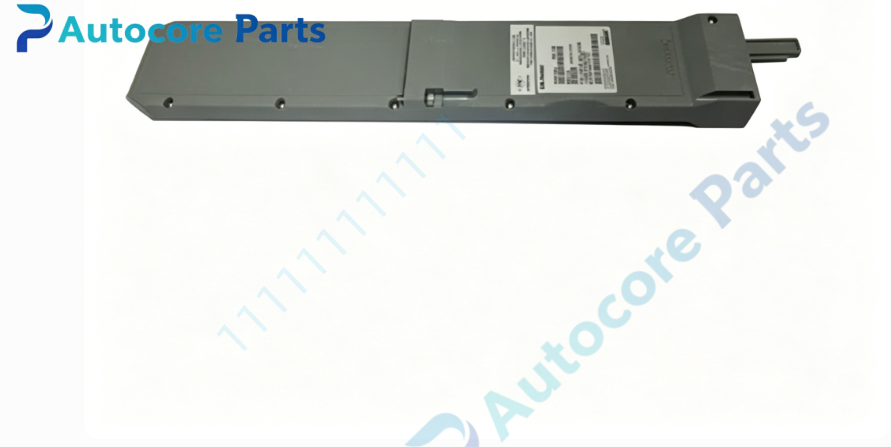

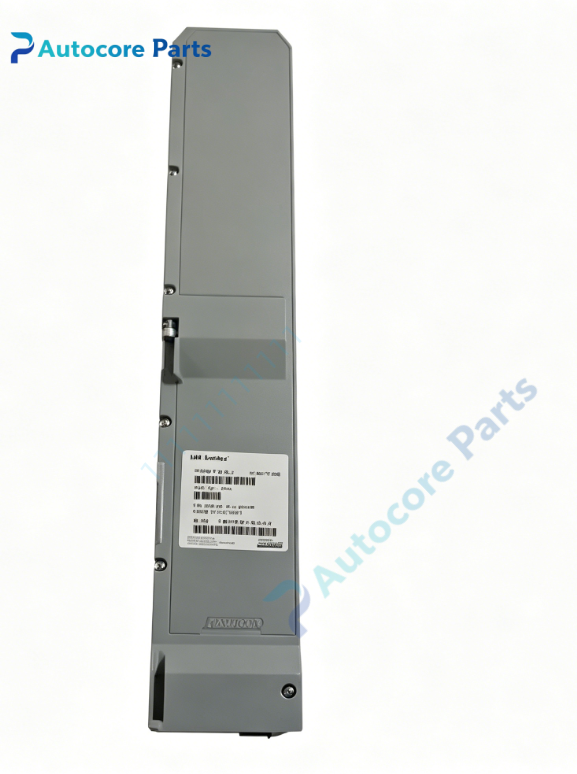

Foxboro FB110E(P0972AJ) Fieldbus Isolator Module

Technical Specifications

Model:FB110E(P/N P0972AJ)

Brand:Foxboro

System compatibility:I/A Series DCS system,10MB Ethernet fieldbus network isolation unit

Function:Fieldbus isolator module,provides galvanic isolation between different 10MB Ethernet fieldbus segments,suppresses ground‑loop interference on network trunk

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate assembly

Communication:10MB Ethernet fieldbus interface

Circuit feature:Complete galvanic isolation between two network sides

Feature:Support hot‑swap online replacement without subsystem power‑off

Diagnostic:Front‑panel multi‑color LED indicators for power and link status

Power supply:Powered via FBM baseplate backplane

Protection:Built‑in transient surge protection for Ethernet signal ports

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in baseplate mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.00kg

Dimensions:36mm × 128mm × 144mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

FB110E fieldbus isolator implements electrical isolation for 10MB Ethernet fieldbus trunk of Foxboro I/A‑Series DCS system. It eliminates ground‑loop noise caused by potential difference between different cabinet grounding points. Hot‑swap function supports online module replacement and reduces plant downtime risk. Link status LED facilitates on‑site network fault inspection,widely applied for fieldbus network isolation maintenance in petrochemical,chemical and power‑plant facilities.

Product Brief

FB110E(P0972AJ) belongs to Foxboro I/A Series legacy DCS communication‑module spare‑part family,obsolete original baseplate‑mount fieldbus isolator component. Must be matched with corresponding FBM baseplate assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
