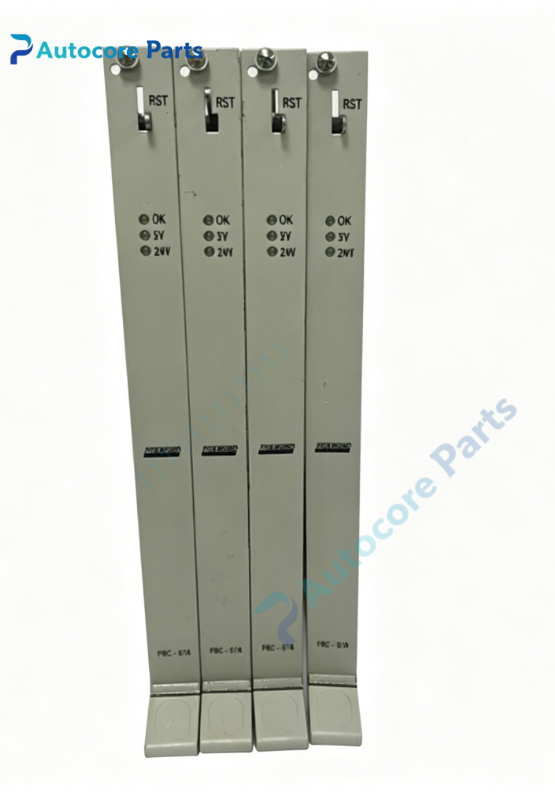

Foxboro FBC07 Fieldbus Controller Module

Technical Specifications

Model:FBC07

Brand:Foxboro

System compatibility:I/A Series DCS system,fieldbus control unit for FBM I/O subsystem

Function:Fieldbus controller module,executes fieldbus communication scheduling and data interaction between control node and multiple FBM I/O stations

Installation:Baseplate‑mount installation,mated with dedicated baseplate assembly

Feature:Support hot‑swap online replacement without subsystem power‑off

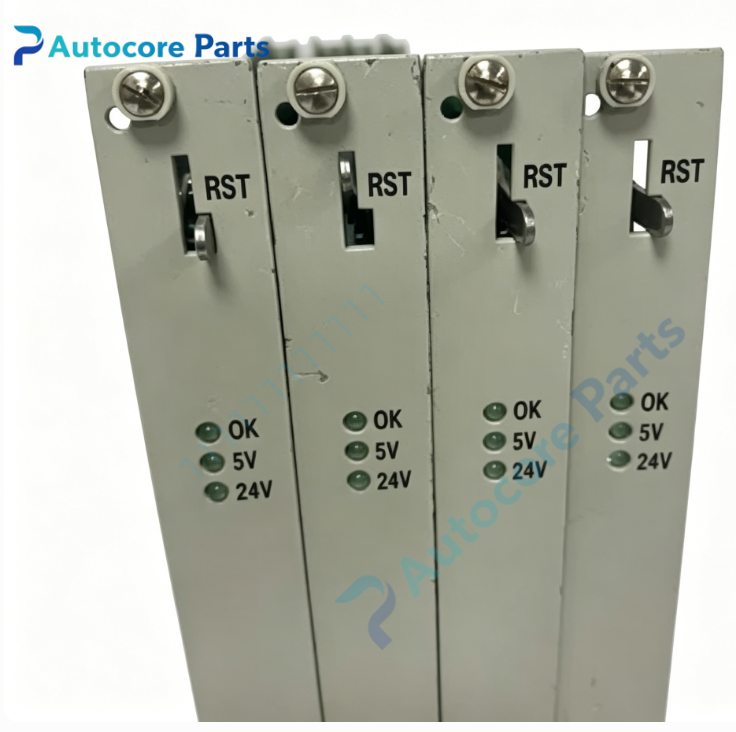

Diagnostic:Front‑panel multi‑color LED indicators for module power,master status and fieldbus communication fault

Power supply:Powered via baseplate backplane

Protection:Transient surge protection for fieldbus signal interfaces

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.02kg

Dimensions:36mm × 128mm × 144mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

FBC07 fieldbus controller manages communication scheduling for Foxboro I/A‑Series FBM fieldbus I/O subsystem. It transmits process data between controller node and remote FBM I/O modules. Hot‑swap function supports online module replacement and reduces plant downtime risk. Status LED facilitates on‑site fieldbus network troubleshooting,widely applied for FBM‑subsystem control‑unit replacement maintenance in petrochemical,chemical and power‑plant facilities.

Product Brief

FBC07 belongs to Foxboro I/A Series legacy DCS fieldbus‑controller spare‑part family,obsolete original baseplate‑mount fieldbus controller component. Must match with corresponding baseplate assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
