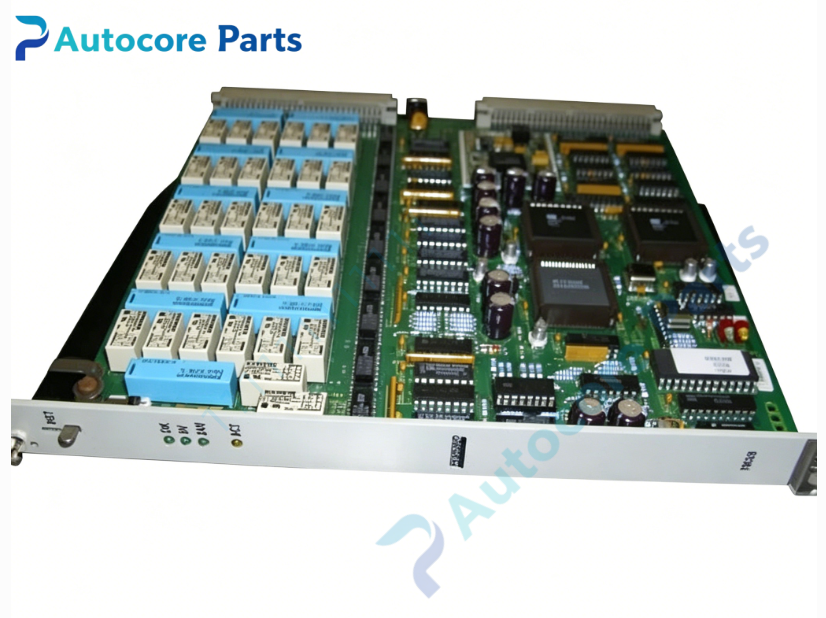

Foxboro FBC09 Redundant Fieldbus Controller Module

Technical Specifications

Model:FBC09

Brand:Foxboro

System compatibility:I/A Series DCS system,redundant fieldbus controller for FBM I/O subsystem

Function:Redundant‑capable fieldbus controller module,handles fieldbus communication scheduling and data interaction between control node and FBM I/O stations,supports dual‑module hot‑standby redundancy

Installation:Baseplate‑mount installation,mated with dedicated baseplate assembly

Feature:Support hot‑swap online replacement without subsystem power‑off,supports redundant pairing operation

Diagnostic:Front‑panel multi‑color LED indicators for module power,master‑standby status and fieldbus communication fault

Power supply:Powered via baseplate backplane

Protection:Transient surge protection for fieldbus signal interfaces

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.03kg

Dimensions:36mm × 128mm × 144mm

Certification:CE,UL

MTBF:>82000 hours

Built‑in function

FBC09 redundant fieldbus controller manages communication for Foxboro I/A‑Series FBM fieldbus I/O subsystem. It supports master‑standby redundant pairing,automatically switches to standby unit upon main controller failure to guarantee continuous I/O communication. Hot‑swap function supports online module replacement and reduces plant downtime risk. Status LED facilitates on‑site redundancy status and fieldbus fault inspection,widely applied for high‑reliability FBM‑subsystem control‑unit replacement maintenance in petrochemical,chemical and power‑plant facilities.

Product Brief

FBC09 belongs to Foxboro I/A Series legacy DCS fieldbus‑controller spare‑part family,obsolete original baseplate‑mount redundant fieldbus controller component. Must match with corresponding baseplate assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
