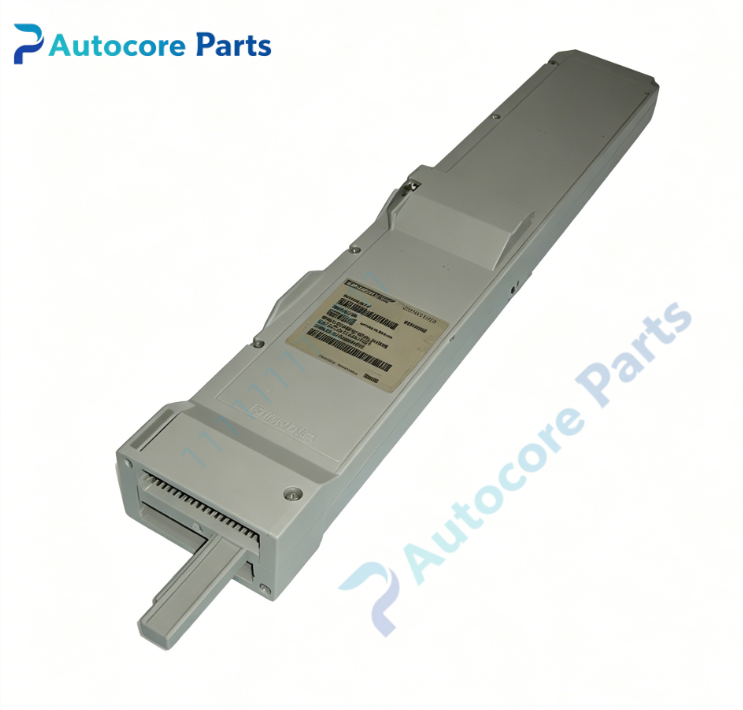

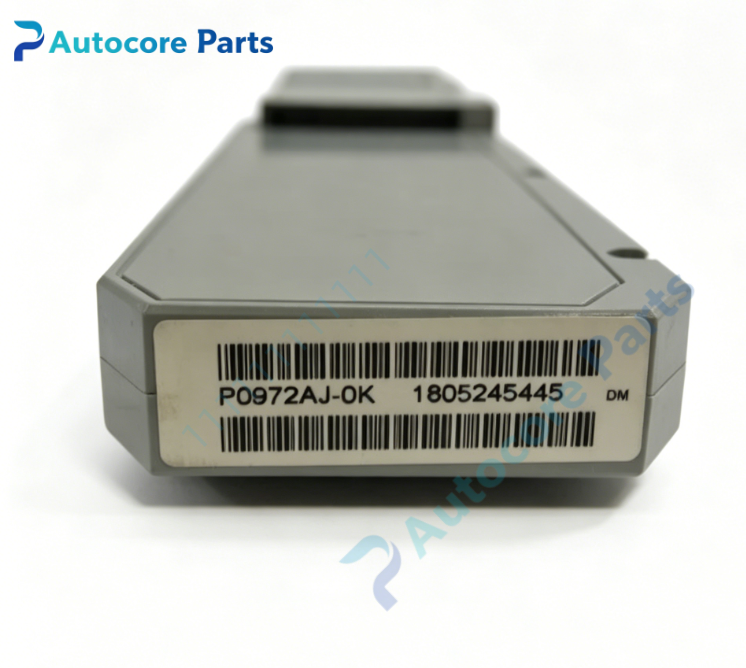

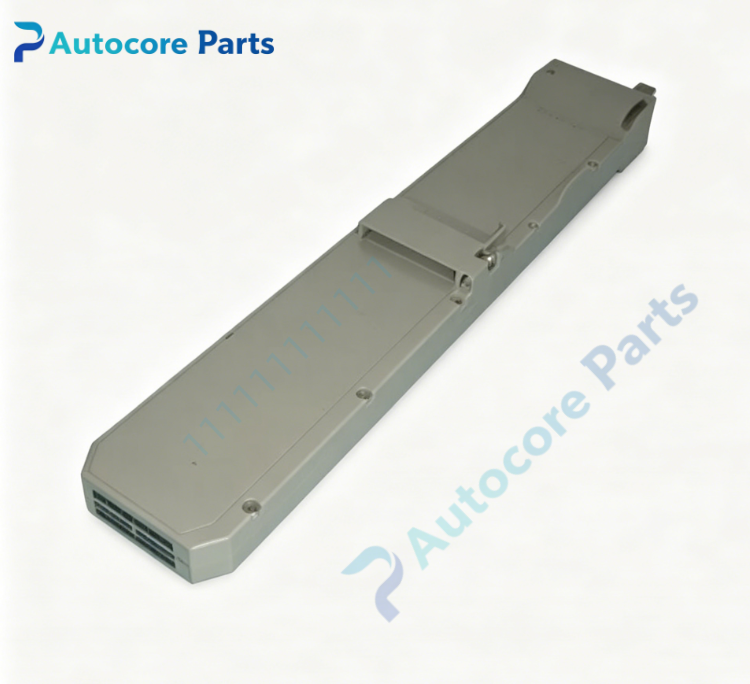

Foxboro FBI10E Fieldbus Isolator Module

Technical Specifications

Model:FBI10E

Brand:Foxboro

System compatibility:I/A Series DCS system,CP60 controller matching fieldbus isolator module

Function:Fieldbus isolator module,converts 10Mbps Ethernet fieldbus signal to HDLC signal for Y‑module FBM units,realizes galvanic isolation between network segments,supports up to 24 FBM stations

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate assembly

Power supply:26‑42VDC,max 350mA at 26VDC,max power dissipation 7.5W

Feature:Support hot‑swap online replacement without subsystem power‑off

Diagnostic:Front‑panel multi‑color LED indicators for power,communication link status

Protection:Transient surge protection for fieldbus signal ports

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.00kg

Dimensions:36mm × 128mm × 144mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

FBI10E fieldbus isolator realizes protocol conversion and electrical isolation between CP60 controller Ethernet fieldbus and Y‑type FBM I/O modules. It converts 10Mbps Ethernet signal into HDLC bus signal for remote FBM stations. Galvanic isolation eliminates ground‑loop interference between different cabinet grounds. Hot‑swap function supports online module replacement and reduces plant downtime risk. Status LED facilitates on‑site communication fault diagnosis,widely applied for I/A‑Series CP60 system fieldbus communication‑link maintenance in petrochemical,chemical and power‑plant facilities.

Product Brief

FBI10E belongs to Foxboro I/A Series legacy DCS communication‑module spare‑part family,obsolete original baseplate‑mount fieldbus isolator component. Must match with corresponding FBM baseplate assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
