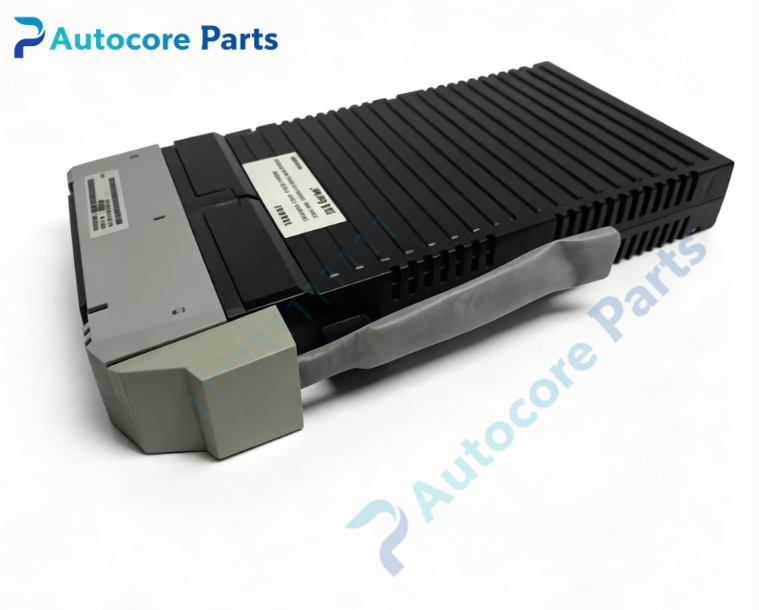

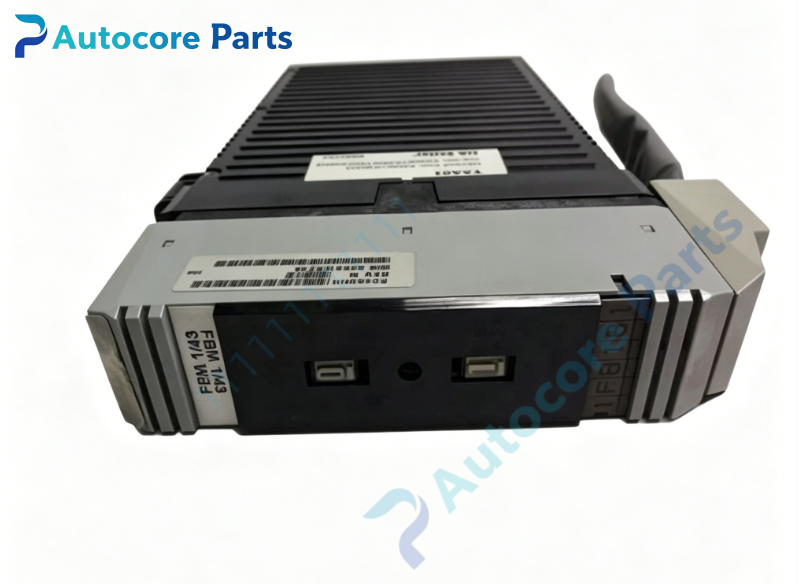

Foxboro FBM01 Thermocouple Analog Input Fieldbus Module

Technical Specifications

Model:FBM01

Brand:Foxboro

System compatibility:I/A Series DCS system,FBM fieldbus I/O subsystem temperature acquisition module

Function:8‑channel thermocouple input fieldbus module,collects multi‑type thermocouple temperature signals from field sensors,built‑in CJC cold‑junction compensation

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate assembly

Input channel:8‑channel thermocouple input,support J,K,T,E,R,S,B thermocouple types

Circuit feature:Built‑in high‑precision CJC cold‑junction compensation circuit,high common‑mode rejection ratio

Feature:Support hot‑swap online replacement without subsystem power‑off

Diagnostic:Front‑panel multi‑color LED indicators for module power and fieldbus communication status,hardware open‑circuit detection

Power supply:Powered via FBM baseplate backplane

Protection:Transient surge protection for signal terminals

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:0.99kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

FBM01 thermocouple input module acquires temperature measuring signals from field thermocouple sensors for Foxboro I/A‑Series DCS system. Built‑in CJC cold‑junction compensation ensures accurate temperature reading. Open‑circuit diagnosis helps quickly locate broken thermocouple wiring faults. Hot‑swap function supports online module replacement and reduces plant downtime risk,widely applied for furnace and reactor temperature monitoring loops in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM01 belongs to Foxboro I/A Series legacy DCS temperature‑input spare‑part family,obsolete original baseplate‑mount thermocouple acquisition module component. Must match with corresponding FBM baseplate assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
