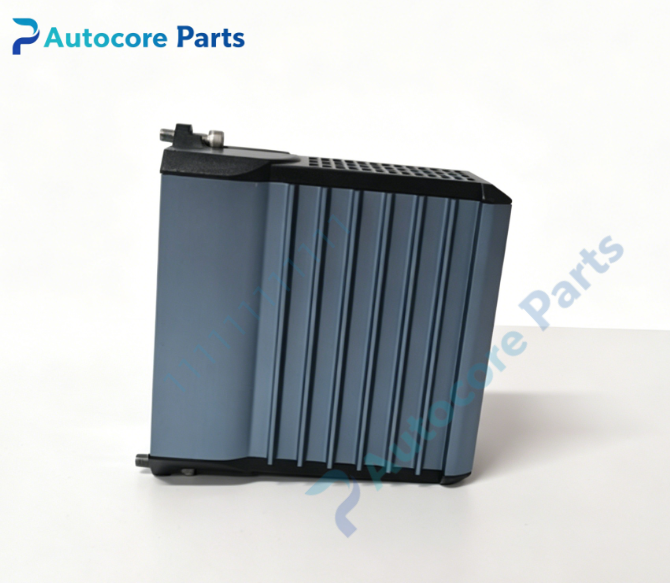

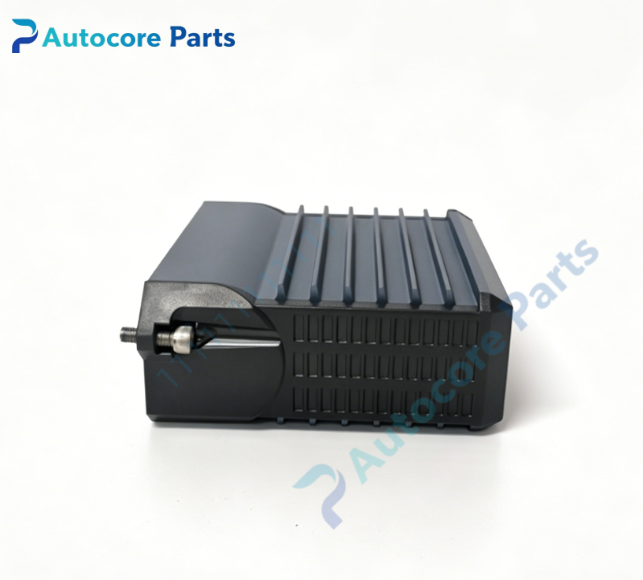

Foxboro FBM05 Redundant Analog I/O Fieldbus Module

Technical Specifications

Model:FBM05

Brand:Foxboro

System compatibility:I/A Series DCS legacy FBM fieldbus I/O subsystem

Function:Redundant‑capable analog I/O fieldbus module,4‑channel 0‑20mA analog input,4‑channel 0‑20mA analog output,supports dual‑module hot‑standby redundant pairing for critical process loops

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate assembly

I/O channel:4 × 0‑20mA analog input;4 × 0‑20mA analog output

Circuit feature:Hardware‑based redundant switching logic,built‑in channel over‑current protection

Feature:Support hot‑swap online replacement without subsystem power‑off;redundant pair automatic failure switchover

Diagnostic:Front‑panel multi‑color LED indicators for power,running and fault status;input open‑circuit & output fault detection

Power supply:Powered via FBM baseplate backplane

Protection:Transient surge protection for signal terminals

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.01kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

MTBF:>82000 hours

Built‑in functio

FBM05 redundant analog I/O module undertakes high‑reliability analog signal acquisition and output for Foxboro I/A‑Series DCS critical control loops. Two FBM05 modules work in hot‑standby mode;when one unit fails,the other automatically takes over to keep I/O loop running without interruption. Hot‑swap supports online module replacement. Status LED facilitates on‑site redundancy status and fault diagnosis,widely applied for high‑safety valve‑control and process‑monitoring loops in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM05 belongs to Foxboro I/A Series legacy DCS redundant‑I/O spare‑part family,obsolete original baseplate‑mount redundant analog I/O module component. Must match with corresponding FBM baseplate assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
