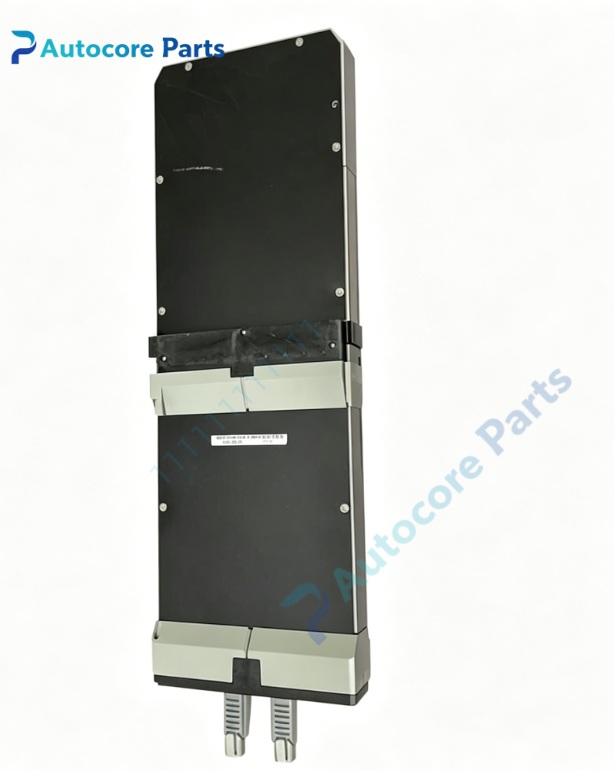

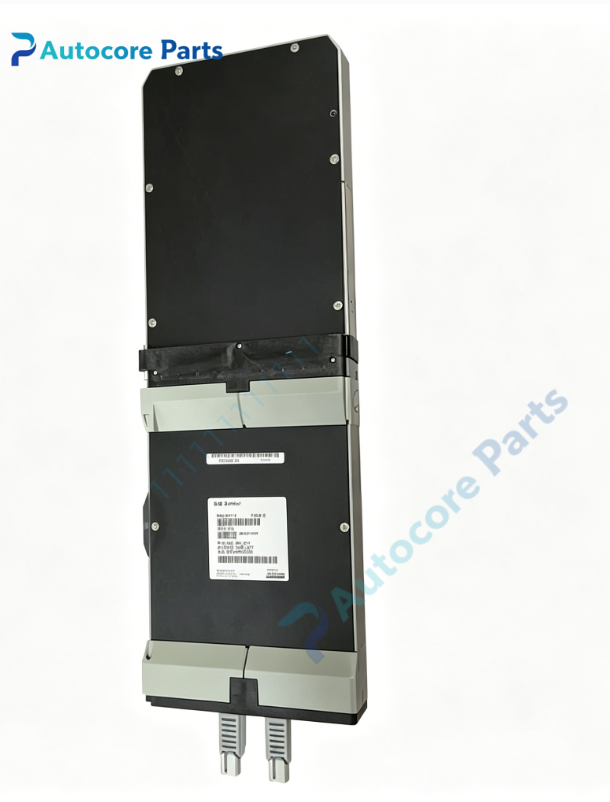

Foxboro FBM06(P0400YG) Pulse Input & Analog Output Fieldbus Module

Technical Specifications

Model:FBM06(P/N P0400YG)

Brand:Foxboro

System compatibility:I/A Series DCS legacy FBM fieldbus I/O subsystem,100‑series baseplate

Function:Mixed I/O fieldbus module,4‑channel pulse/frequency input collects pulse signal from turbine,vortex flow meters;4‑channel 0‑20mA analog output for field actuators

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate assembly

Input channel:4‑channel pulse input,max 12.5kHz input frequency

Output channel:4‑channel 0‑20mA analog output

Feature:Support hot‑swap online replacement without subsystem power‑off

Diagnostic:Front‑panel multi‑color LED indicators for power and fieldbus communication status,pulse signal fault detection

Power supply:Powered via FBM baseplate backplane

Protection:Transient surge protection for signal terminals

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.00kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

FBM06 mixed I/O module acquires pulse flow signal from field flow meters for Foxboro I/A‑Series DCS system,meanwhile outputs analog control signal to drive field actuators. Hot‑swap supports online module replacement and reduces plant downtime risk. Status LED facilitates on‑site flow‑loop fault inspection,widely applied for flow measurement and control loops in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM06(P0400YG) belongs to Foxboro I/A Series legacy DCS mixed‑I/O spare‑part family,obsolete original baseplate‑mount pulse‑input & analog‑output module component. Must match with corresponding 100‑series FBM baseplate assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
