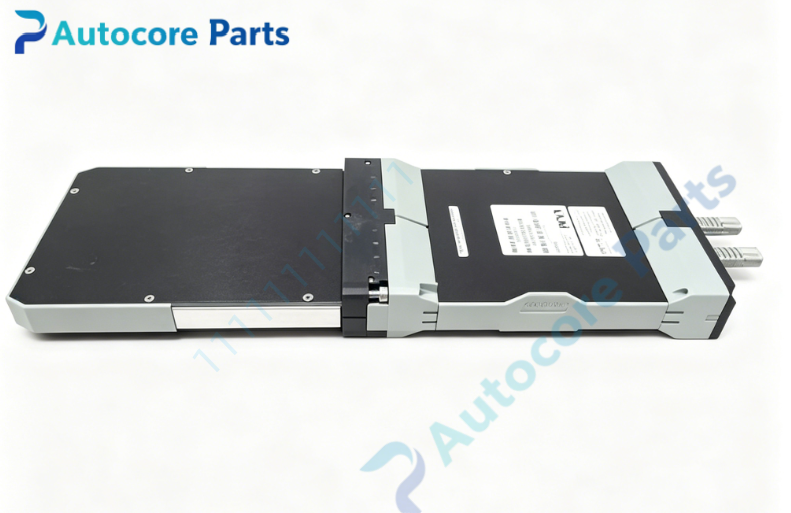

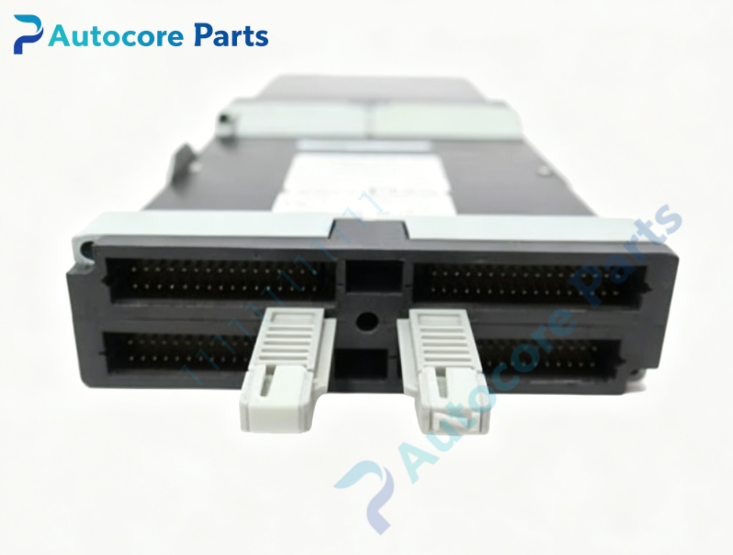

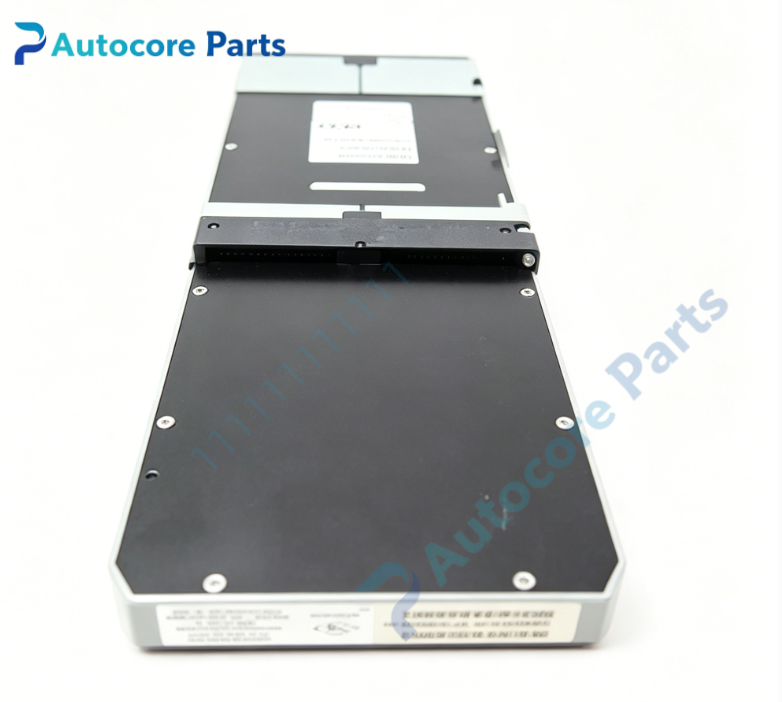

Foxboro FBM07 Discrete Contact‑Sense Input Fieldbus Module

Technical Specifications

Model:FBM07

Brand:Foxboro

System compatibility:I/A Series DCS legacy FBM fieldbus I/O subsystem

Function:16‑channel discrete contact‑sense input module,detects dry‑contact switch status or external DC voltage signals from field‑side limit switches,relays and auxiliary contacts

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate assembly

Input channel:16‑channel discrete input;contact‑sense 24VDC internal excitation or external DC voltage monitoring configurable

Circuit feature:Group‑wise galvanic isolation,RC filter for contact bounce suppression

Feature:Support hot‑swap online replacement without subsystem power‑off

Diagnostic:Per‑channel status LED indicators,fieldbus communication fault indicator

Power supply:Powered via FBM baseplate backplane,typical power consumption 3W

Protection:Transient surge absorption for each signal channel

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:0.98kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

FBM07 discrete input module collects on‑off status signals from field switches,relay contacts and equipment auxiliary feedback for Foxboro I/A‑Series DCS system. Built‑in RC filter eliminates contact‑bounce false triggering. Group‑isolation design improves anti‑interference performance in noisy cabinet environment. Hot‑swap supports online module replacement,widely applied for pump,valve and interlock‑logic status‑acquisition loops in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM07 belongs to Foxboro I/A Series legacy DCS discrete‑input spare‑part family,obsolete original baseplate‑mount contact‑sense input module component. Must match with corresponding FBM baseplate assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
