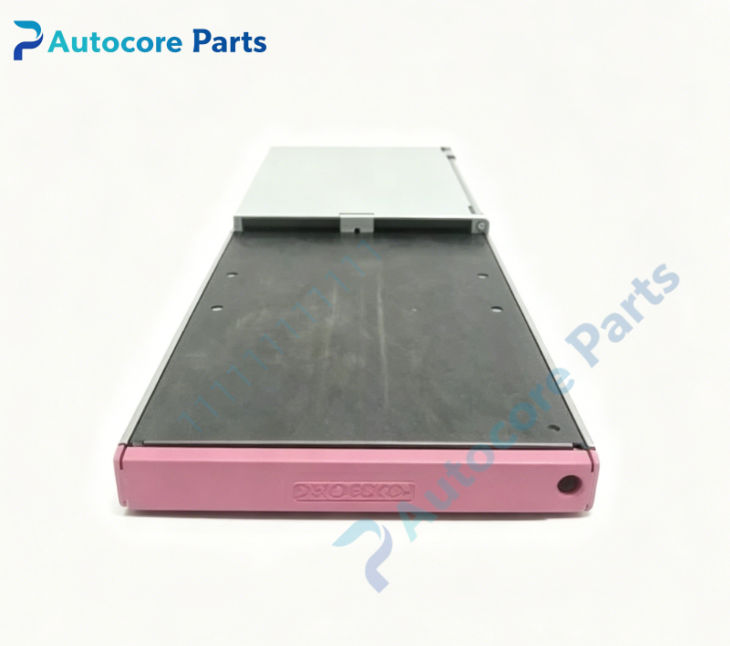

Foxboro FBM09 Triac Discrete Output Fieldbus Module

Technical Specifications

Model:FBM09

Brand:Foxboro

System compatibility:I/A Series DCS legacy FBM fieldbus I/O subsystem

Function:16‑channel triac discrete output fieldbus module,solid‑state AC switching to drive field‑side solenoid valves,relay coils and AC‑type actuators

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate assembly

Output channel:16‑channel 120VAC triac solid‑state output

Circuit feature:Zero‑cross triac switching,group‑wise isolation,over‑current per‑channel protection

Feature:Support hot‑swap online replacement without subsystem power‑off

Diagnostic:Per‑channel status LED indicators;front‑panel power and fieldbus communication fault LED

Power supply:Powered via FBM baseplate backplane

Protection:Transient surge absorption for each output channel

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.01kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

FBM09 triac output module converts DCS digital logic command into 120VAC solid‑state switching signal for Foxboro I/A‑Series system. Zero‑cross switching reduces electrical noise interference. Built‑in channel‑level protection prevents triac damage caused by load short‑circuit. Hot‑swap supports online module replacement without system shutdown,widely applied for solenoid‑valve and auxiliary‑relay control‑loop maintenance in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM09 belongs to Foxboro I/A Series legacy DCS discrete‑output spare‑part family,obsolete original baseplate‑mount triac output module component. Must match with corresponding FBM baseplate assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
