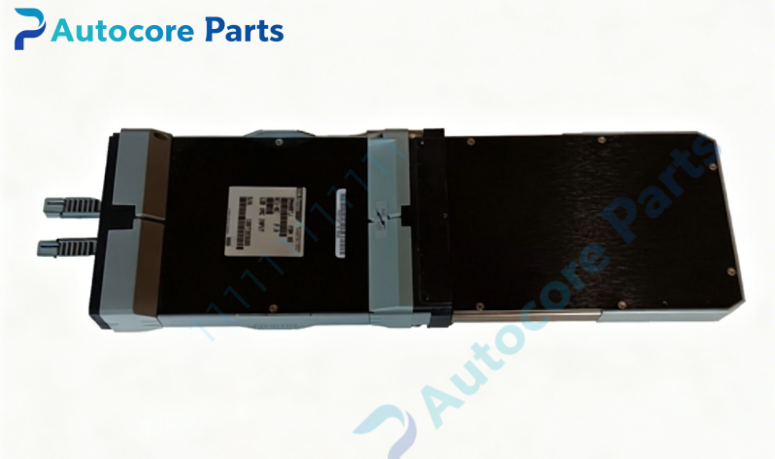

Foxboro FBM08 120VAC Discrete Contact‑Sense Input Fieldbus Module

Technical Specifications

Model:FBM08

Brand:Foxboro

System compatibility:I/A Series DCS legacy FBM fieldbus I/O subsystem

Function:16‑channel 120VAC contact‑sense discrete input module,monitors AC on‑off status from field relays,limit switches and auxiliary contacts,supports one expansion module for I/O capacity expansion

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate assembly

Input channel:16‑channel 120VAC discrete input

Circuit feature:Group‑wise galvanic isolation,hardware input filter for contact bounce suppression,supports SOE sequence‑of‑event monitoring function

Feature:Support hot‑swap online replacement without subsystem power‑off,supports expansion module access

Diagnostic:Per‑channel status LED indicators,front‑panel communication fault LED

Power supply:Powered via FBM baseplate backplane

Protection:Transient surge absorption for each signal channel

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.00kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

FBM08 120VAC discrete input module collects AC‑type switch status signals for Foxboro I/A‑Series DCS system. It supports SOE sequence‑of‑event monitoring to record time‑stamped switch actions for fault post‑mortem analysis. It can connect an expansion module to increase I/O quantity. Hot‑swap supports online module replacement,widely applied for pump,motor interlock‑signal acquisition loops in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM08 belongs to Foxboro I/A Series legacy DCS discrete‑input spare‑part family,obsolete original baseplate‑mount 120VAC input module component. Must match with corresponding FBM baseplate assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
