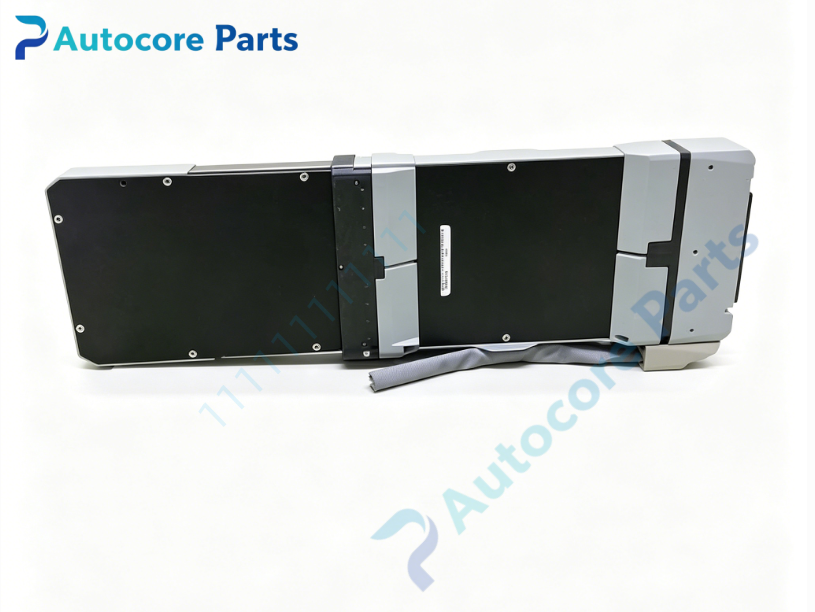

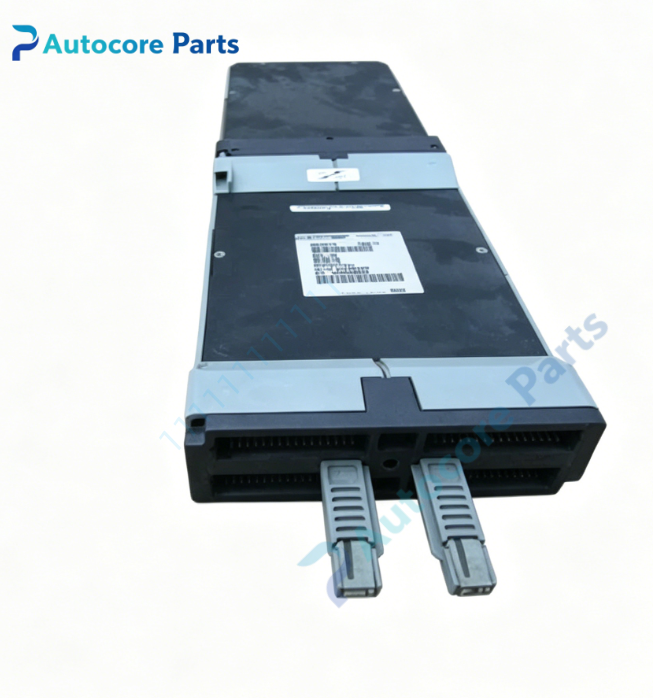

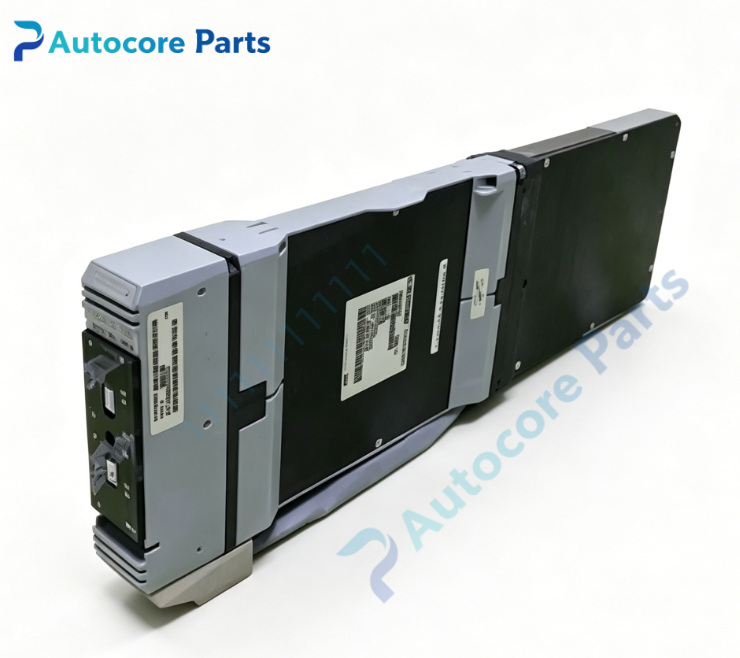

Foxboro FBM12 Mixed Analog‑Discrete I/O Fieldbus Module

Technical Specifications

Model:FBM12

Brand:Foxboro

System compatibility:I/A Series DCS legacy FBM fieldbus I/O subsystem

Function:Mixed I/O fieldbus module,8‑channel analog input collects field transmitter signals;4‑channel analog output delivers control signals to field actuators;4‑channel discrete input collects equipment auxiliary contact status

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate assembly

I/O channel:8 × analog input;4 × analog output;4 × discrete input

Circuit feature:High‑precision A/D‑D/A conversion,group‑wise galvanic isolation,per‑channel over‑current protection

Feature:Support hot‑swap online replacement without subsystem power‑off

Diagnostic:Front‑panel multi‑color LED indicators for power,communication status;sensor open‑circuit and output fault detection

Power supply:Powered via FBM baseplate backplane

Protection:Transient surge protection for each signal terminal

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.01kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

FBM12 mixed I/O module completes multi‑type process‑signal acquisition and control output for Foxboro I/A‑Series DCS system. It integrates analog acquisition,analog output and discrete‑signal monitoring in one unit,saving cabinet installation space. Isolated‑channel design suppresses ground‑loop interference in complex industrial environment. Open‑circuit and over‑range fault detection helps locate field instrument and wiring faults rapidly. Hot‑swap supports online module replacement,widely applied for multi‑parameter measurement‑and‑control‑loop maintenance in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM12 belongs to Foxboro I/A Series legacy DCS mixed‑I/O spare‑part family,obsolete original baseplate‑mount multi‑signal mixed‑I/O module component. Must match with corresponding FBM baseplate assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
