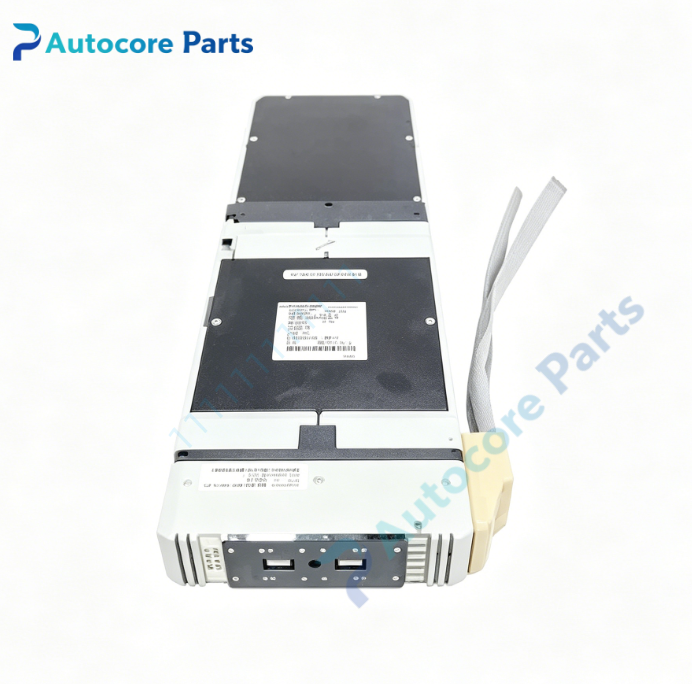

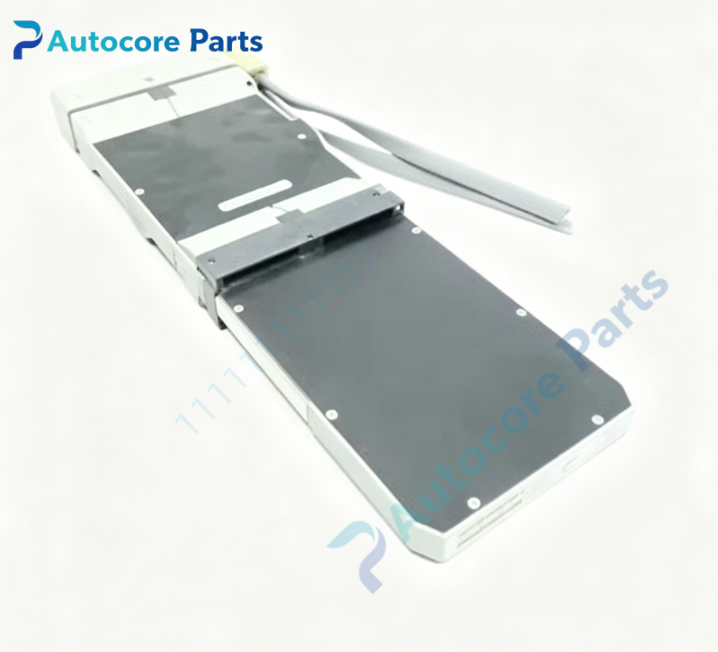

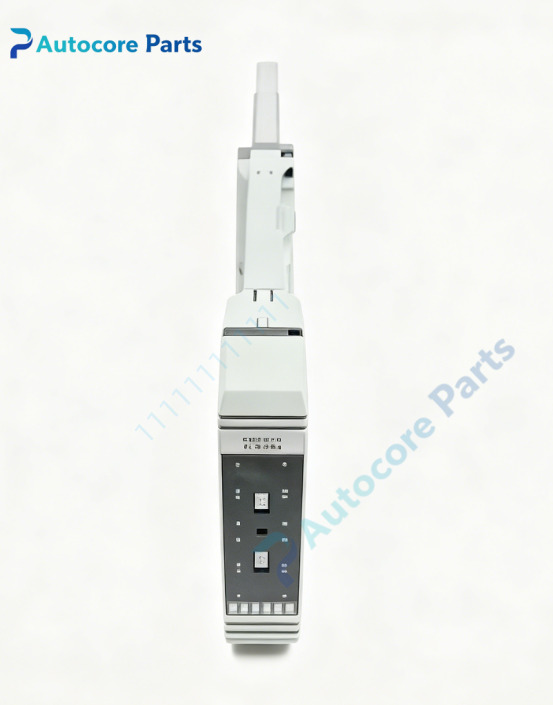

Foxboro FBM13 120VAC Discrete Input Expansion Fieldbus Module

Technical Specifications

Model:FBM13

Brand:Foxboro

System compatibility:I/A Series DCS legacy FBM fieldbus I/O subsystem,must be paired with FBM08 main module

Function:16‑channel 120VAC discrete input expansion module,expands discrete input capacity of FBM08 main module for collecting AC switch‑contact signals from field‑side limit switches and relay auxiliary contacts

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate assembly,connected to FBM08 main module via expansion interface

Input channel:16‑channel 120VAC discrete input

Circuit feature:Group‑wise galvanic isolation,built‑in hardware filter for contact‑bounce suppression

Feature:Support hot‑swap online replacement without subsystem power‑off;expansion function depends on FBM08 main module

Diagnostic:Per‑channel status LED indicators;front‑panel communication fault indicator

Power supply:Powered via FBM baseplate backplane

Protection:Transient surge absorption for each signal terminal

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.00kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

FBM13 expansion input module increases discrete‑input point quantity for Foxboro I/A‑Series DCS system. It cannot work independently and must cooperate with FBM08 main module. It collects 120VAC on‑off status signals from field‑side equipment contacts. Built‑in filter suppresses contact‑bounce false triggering. Hot‑swap supports online module replacement,widely applied for large‑quantity interlock‑signal acquisition loops in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM13 belongs to Foxboro I/A Series legacy DCS discrete‑input expansion spare‑part family,obsolete original baseplate‑mount expansion input module component. Must match with corresponding FBM baseplate and FBM08 main module. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
