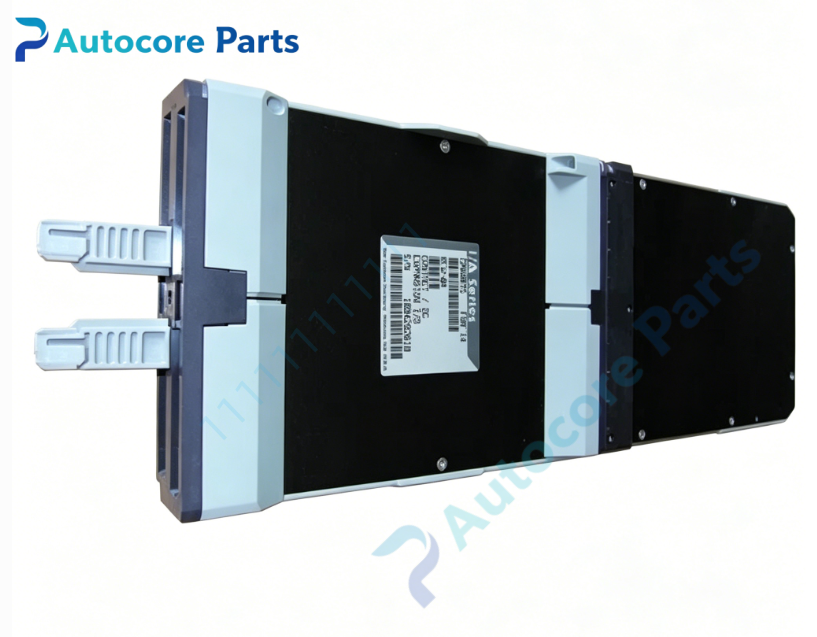

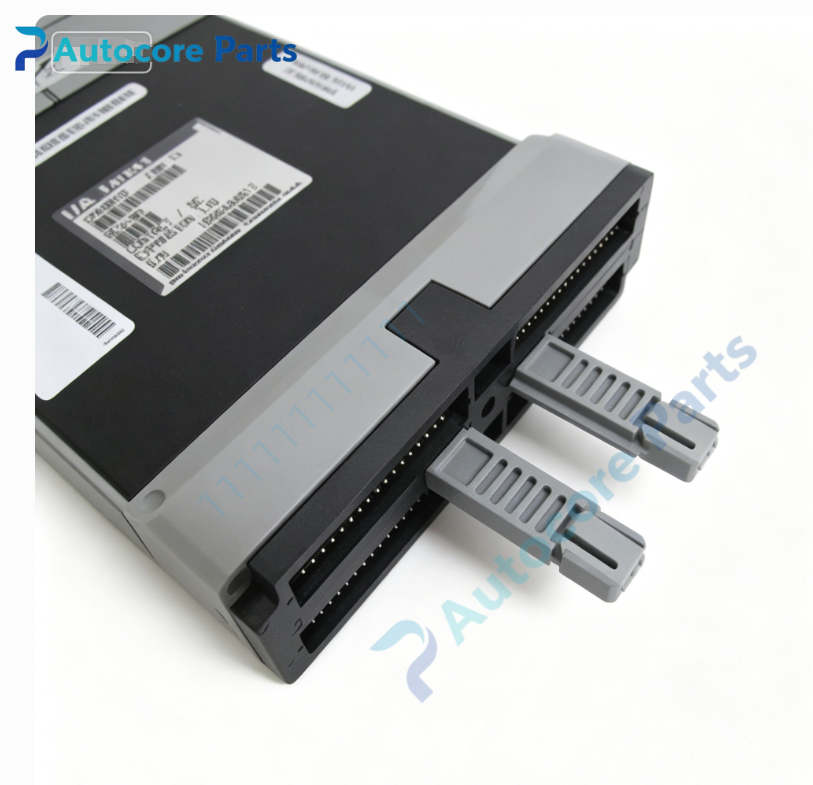

Foxboro FBM14 SOE Sequence‑of‑Event Discrete Input Fieldbus Module

Technical Specifications

Model:FBM14

Brand:Foxboro

System compatibility:I/A Series DCS legacy FBM fieldbus I/O subsystem

Function:32‑channel SOE sequence‑of‑event discrete input module,collects field switch‑contact status with high‑precision 1ms time‑stamp recording for trip‑event and interlock‑fault historical tracing

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate assembly

Input channel:32‑channel discrete input;dry‑contact / DC voltage signal compatible

Circuit feature:Hardware high‑precision time‑stamp capture,group‑wise galvanic isolation,input‑filter for contact‑bounce suppression

Feature:Support hot‑swap online replacement without subsystem power‑off;1ms SOE event timestamp resolution

Diagnostic:Per‑channel status LED indicators;front‑panel power and fieldbus communication fault indicator

Power supply:Powered via FBM baseplate backplane

Protection:Transient surge absorption for each signal terminal

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.02kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

FBM14 SOE input module acquires switch‑status signals and records high‑precision time‑stamped event data for Foxboro I/A‑Series DCS system. 1‑millisecond timestamp capability supports rapid post‑mortem analysis of equipment trips and interlock actions. Isolated‑channel design suppresses ground‑loop interference in complex industrial cabinet environment. Hot‑swap supports online module replacement,widely applied for turbine,pump,valve interlock‑event recording loops in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM14 belongs to Foxboro I/A Series legacy DCS SOE‑input spare‑part family,obsolete original baseplate‑mount sequence‑of‑event acquisition module component. Must match with corresponding FBM baseplate assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
