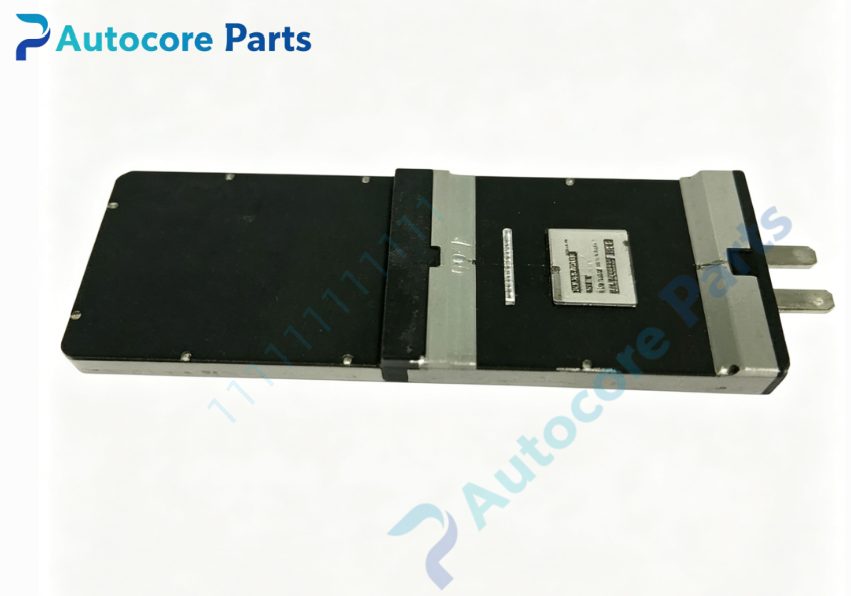

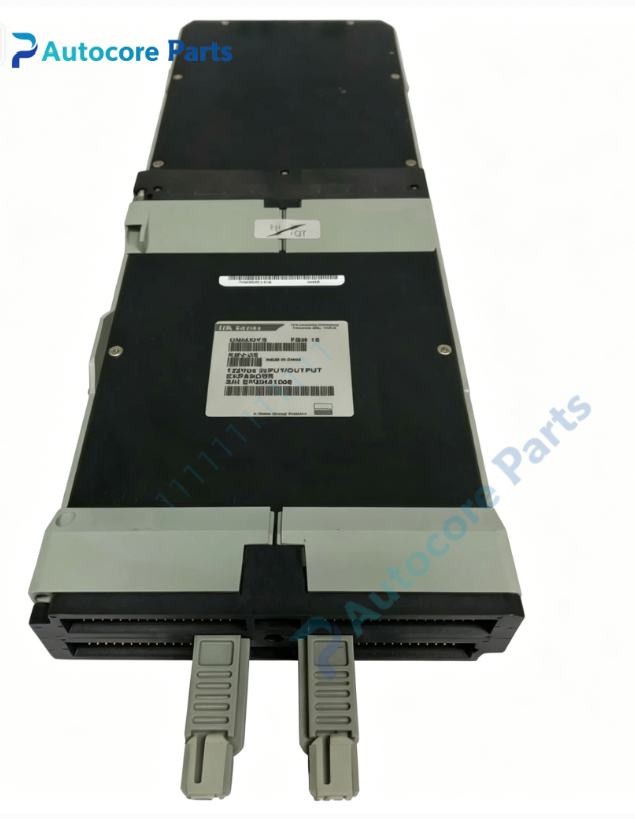

Foxboro FBM15 Discrete I/O Expansion Fieldbus Module

Technical Specifications

Model:FBM15

Brand:Foxboro

System compatibility:I/A Series DCS legacy FBM fieldbus I/O subsystem,must be used together with FBM10 main module

Function:Discrete I/O expansion fieldbus module,expands I/O capacity for FBM10 main module,collects field‑side switch status and outputs relay contact control signals

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate assembly,connected to FBM10 via expansion interface

I/O channel:Expansion discrete input and relay output channels,group‑wise galvanic isolation

Circuit feature:Isolated signal processing,relay channel over‑current protection

Feature:Support hot‑swap online replacement without subsystem power‑off;cannot work independently

Diagnostic:Per‑channel status LED indicators;front‑panel power and communication fault indicator

Power supply:Powered via FBM baseplate backplane

Protection:Transient surge absorption for each signal terminal

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.00kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

FBM15 discrete I/O expansion module increases available discrete I/O points for Foxboro I/A‑Series DCS system. It is dependent on FBM10 main module and cannot run on its own. It assists in collecting field switch feedback signals and outputting relay‑contact commands for interlock‑logic processing. Hot‑swap supports online module replacement,widely applied for multi‑point interlock‑signal acquisition‑control loops in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM15 belongs to Foxboro I/A Series legacy DCS I/O‑expansion spare‑part family,obsolete original baseplate‑mount auxiliary expansion module component. Must match with corresponding FBM baseplate and FBM10 main module. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
