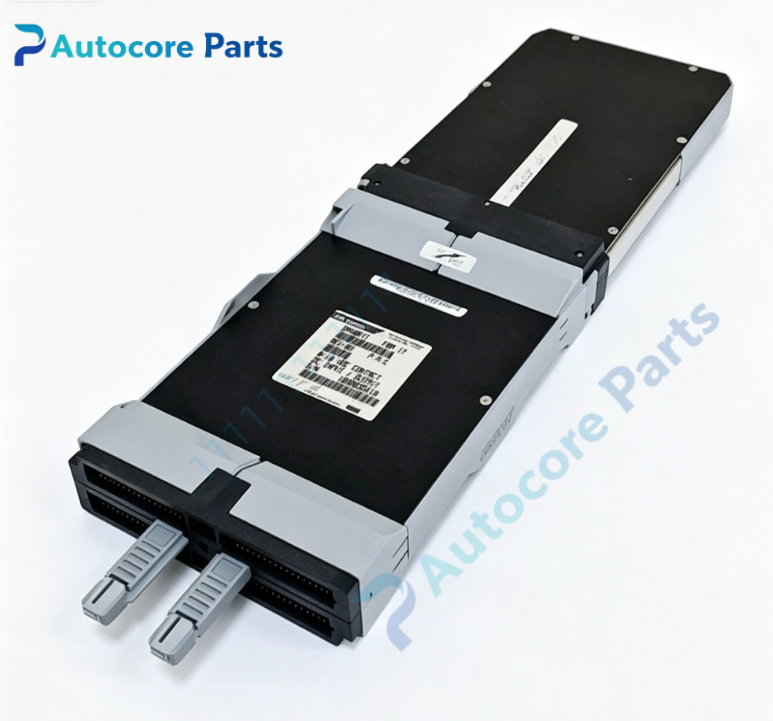

Foxboro FBM17 High‑Level Analog Input Fieldbus Module

Technical Specifications

Model:FBM17

Brand:Foxboro

System compatibility:I/A Series DCS legacy FBM fieldbus I/O subsystem

Function:16‑channel high‑level isolated analog input fieldbus module,collects ±10V or 4‑20mA analog signals from field‑side pressure,level and flow transmitters

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate assembly

Input channel:16 × channel‑to‑channel galvanic isolated analog input;±10V /4‑20mA signal configurable

Circuit feature:High‑precision A/D conversion,per‑channel ground‑loop suppression,over‑voltage input protection

Feature:Support hot‑swap online replacement without subsystem power‑off

Diagnostic:Front‑panel multi‑color LED indicators for power and fieldbus communication status;sensor open‑circuit fault detection

Power supply:Powered via FBM baseplate backplane

Protection:Transient surge absorption for each signal terminal

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Vertical operating temperature:‑20℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.00kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

MTBF:>83000 hours

Built‑in function

FBM17 high‑level analog input module converts field‑side transmitter analog signals into digital data for Foxboro I/A‑Series DCS system. Channel‑by‑channel isolation design effectively eliminates ground‑loop interference. Open‑circuit detection helps identify broken field wiring faults. Hot‑swap supports online module replacement without system shutdown,widely applied for pressure,tank‑level and flow‑measurement‑loop maintenance in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM17 belongs to Foxboro I/A Series legacy DCS analog‑input spare‑part family,obsolete original baseplate‑mount high‑level analog‑input module component. Must match with corresponding FBM baseplate assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
