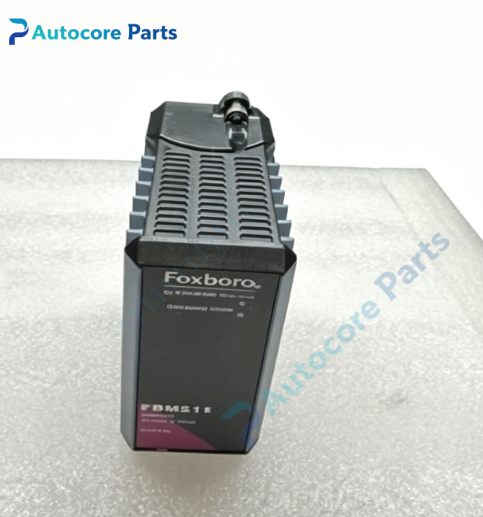

Foxboro FBM211 16‑Channel 0‑20.4mA Group‑Isolated Analog Input Fieldbus Module

Technical Specifications

Model:FBM211(P0914TN)

Brand:Foxboro

System compatibility:I/A Series DCS FBM200 series fieldbus I/O subsystem,works with FCP/FCM controller,matched with corresponding termination assembly and pre‑terminated cable assembly

Function:16‑channel group‑isolated analog input fieldbus module,two groups of eight‑channel differential input,acquires 0‑20.4mA DC current signals from two‑wire pressure,level and flow field transmitters,sigma‑delta A/D conversion,configurable integration‑time and rate‑of‑change‑limit parameters,each channel current limited to 33mA

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate and matched termination assembly

Input channel:16‑channel analog input,0‑20.4mA measuring range,two groups of 8‑channel group‑wise galvanic isolation,600VAC one‑minute isolation rating between group and earth ground

Circuit feature:Sigma‑delta high‑precision A/D conversion,per‑channel over‑voltage protection,sensor open‑circuit detection,loop current limiting protection

Feature:Support hot‑swap online replacement without subsystem power‑off,redundant 2Mbps fieldbus communication with FCP/FCM controller,does not support channel‑to‑channel isolation,group‑isolated design only

Diagnostic:Front‑panel multi‑color LED indicators for power and fieldbus communication status

Power supply:24VDC via FBM baseplate backplane,max 7W typical power consumption,max 11W under full‑load condition

Protection:Transient surge absorption for signal channels

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.00kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

Built‑in function

FBM211 high‑density 16‑channel analog input module converts field‑transmitter 0‑20mA current signals to digital process data for Foxboro I/A‑Series DCS system. It adopts group‑isolation structure instead of channel‑to‑channel isolation,each eight‑channel forms one isolated group. Sigma‑delta conversion guarantees high‑precision process‑signal acquisition. Open‑circuit detection quickly identifies broken field‑wiring faults. Hot‑swap supports online module replacement without system shutdown,widely applied for pressure,tank‑level and flow‑measurement‑loop maintenance in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM211 belongs to Foxboro I/A Series legacy DCS high‑density‑analog‑input spare‑part family,obsolete original baseplate‑mount 16‑channel group‑isolated analog‑input module component. Must match with corresponding FBM baseplate and matched termination assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
