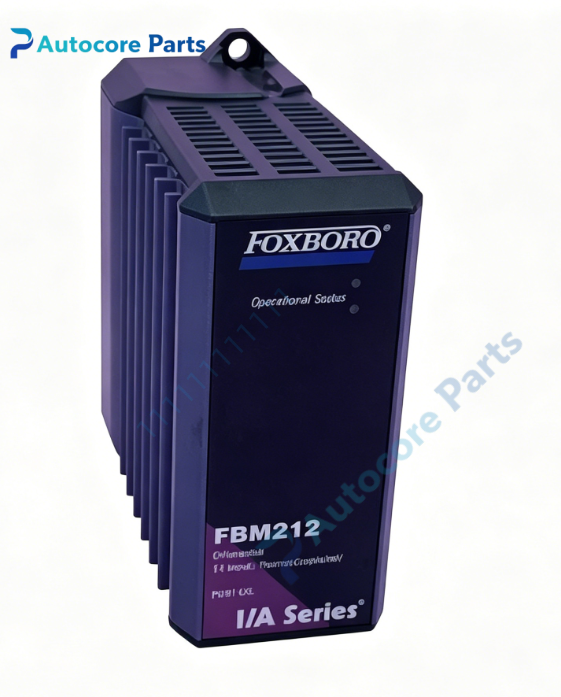

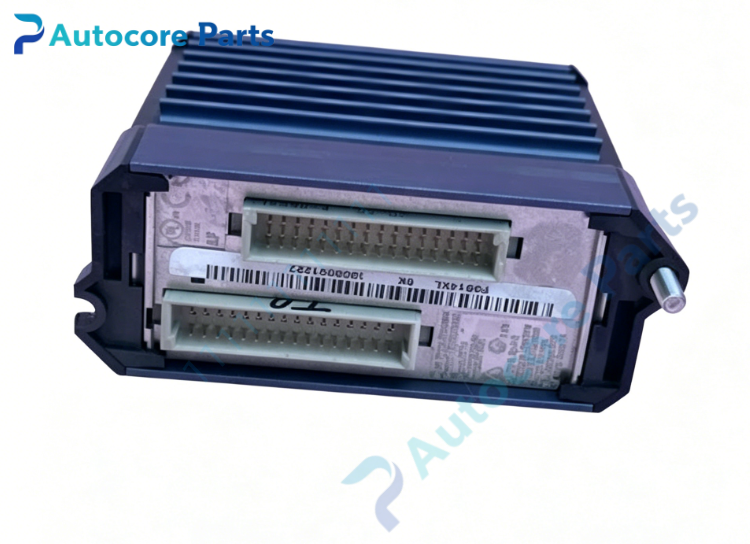

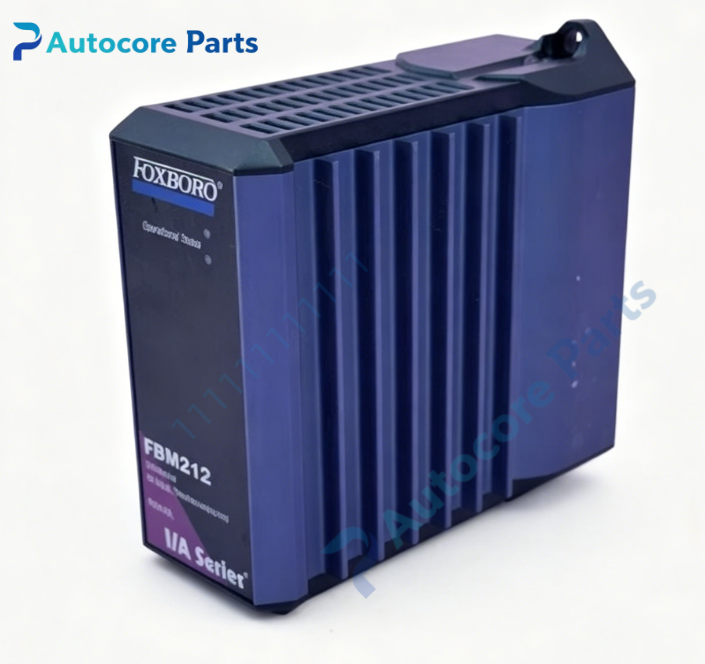

Foxboro FBM212 14‑Channel Thermocouple Millivolt Input Fieldbus Module

Technical Specifications

Model:FBM212

Brand:Foxboro

System compatibility:I/A Series DCS FBM200 series fieldbus I/O subsystem,works with FCP/FCM controller,matched with P0916BV field termination assembly and corresponding pre‑terminated cable assembly

Function:14‑channel galvanically group‑isolated thermocouple and millivolt differential input fieldbus module,acquires differential thermocouple and millivolt signals from field‑side temperature transducers,on‑board RTD sensor for cold‑junction compensation,sigma‑delta A/D conversion,configurable integration‑time and rate‑of‑change‑limit parameters,supports multiple thermocouple type configurations

Installation:Baseplate‑mount installation,mated with dedicated FBM baseplate,P0916BV termination assembly and matched cable assembly

Input channel:14‑channel differential thermocouple / millivolt input,‑100mV ~ +100mV measuring range,group‑wise galvanic isolation

Circuit feature:Sigma‑delta high‑precision A/D conversion,on‑board RTD cold‑junction compensation,per‑channel over‑voltage protection,sensor open‑circuit detection

Feature:Support hot‑swap online replacement without subsystem power‑off,redundant 2Mbps fieldbus communication with FCP/FCM controller,group‑isolated design,non‑channel‑to‑channel isolation

Diagnostic:Front‑panel multi‑color LED indicators for power and fieldbus communication status

Power supply:24VDC via FBM baseplate backplane,max 3W power consumption

Protection:Transient surge absorption for each signal channel

Environmental standard:Compliant with ISA‑S71.04 Class G3 industrial atmospheric condition

Housing:Aluminum alloy metal housing,slot‑in mechanical locking structure

Protection class:IP20

Horizontal operating temperature:0℃ ~ +60℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5%‑95% non‑condensing

Weight:1.00kg

Dimensions:36mm ×128mm ×144mm

Certification:CE,UL

Built‑in function

FBM212 high‑density thermocouple‑millivolt input module converts field‑side thermocouple differential sensor signals to digital process data for Foxboro I/A‑Series DCS system. It integrates RTD cold‑junction compensation for accurate temperature calculation. It adopts group‑isolation architecture rather than per‑channel isolation. Open‑circuit detection quickly identifies broken thermocouple wiring faults. Hot‑swap supports online module replacement without system shutdown,widely applied for furnace,heater,reactor and thermal‑equipment‑monitoring‑loop maintenance in petrochemical,chemical and power‑plant facilities.

Product Brief

FBM212 belongs to Foxboro I/A Series legacy DCS high‑density‑thermocouple‑input spare‑part family,obsolete original baseplate‑mount 14‑channel thermocouple‑millivolt acquisition module component. Must match with corresponding FBM baseplate,P0916BV termination assembly and matched cable assembly. Widely used for original Foxboro DCS equipment maintenance and renovation. ESD anti‑static protection shall be followed during installation.
