GE 369-HI-0-0-0-0-H-E GE Multilin Motor Management Relay Unit

Module Feature

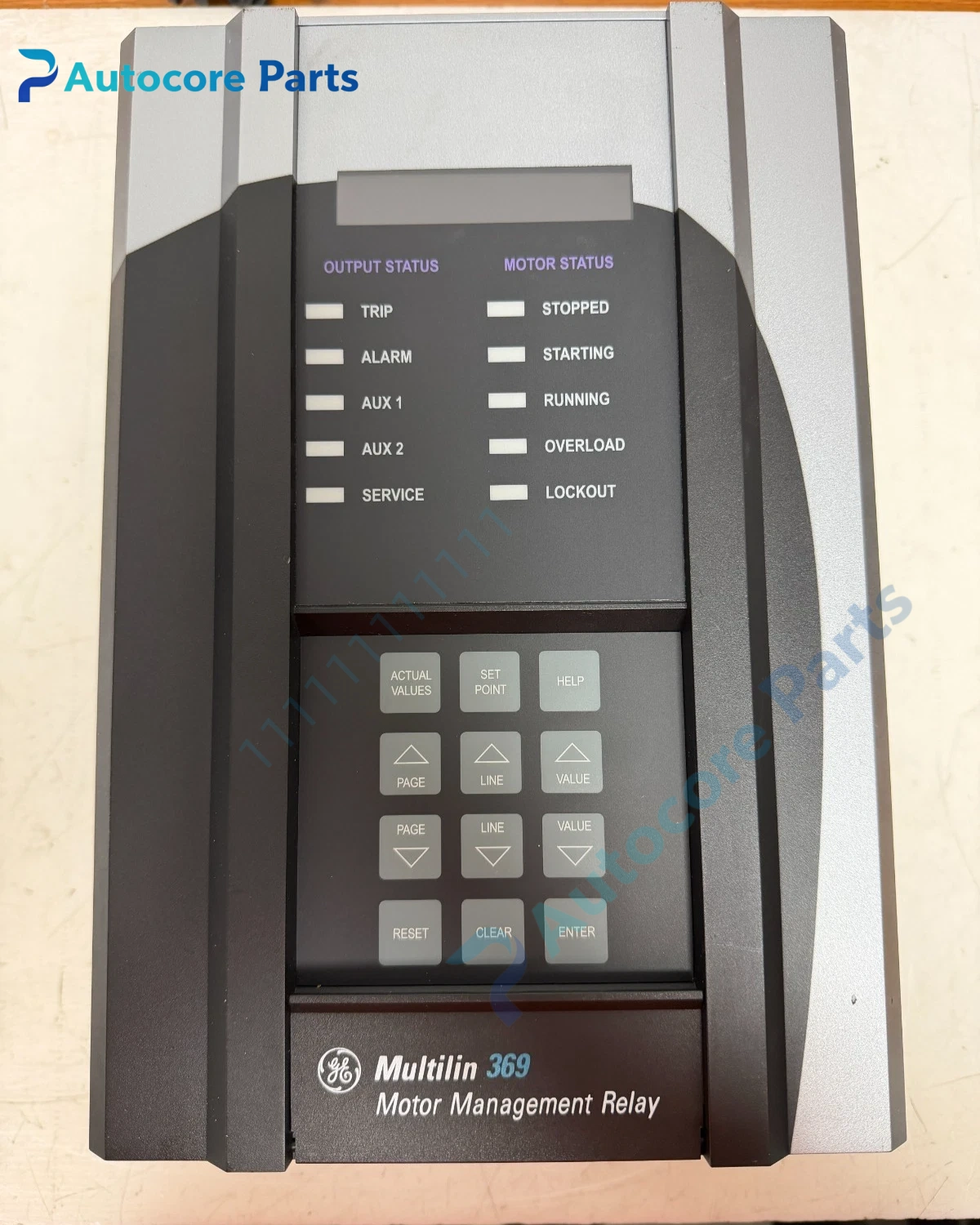

369-HI-0-0-0-0-H-E belongs to GE Multilin 369 motor protection series. It is a GE Multilin integrated motor management relay designed for AC motors used in pumps, fans and compressors. The unit provides comprehensive motor protection functions including overload, overcurrent, earth fault, RTD temperature monitoring, unbalance and undercurrent protection. It supports local HMI display, relay trip/alarm output, and multiple communication ports for SCADA system connection. Panel mount compact structure, built-in fault event recording, widely used in power, water treatment and petrochemical industrial motor control systems.

Working principle

The GE Multilin relay collects current transformer signals and RTD temperature signals, converts raw analog signals into engineering values via internal A/D conversion. It continuously compares measured values with pre-set protection thresholds. When abnormal condition exceeds threshold, relay contact trips to cut off motor power and record fault event. Real-time operating data and fault records can be uploaded to upper monitoring system through communication bus.

Onboard components

Main control PCB, A/D conversion chip, signal conditioning circuit, multi-channel relay output group, local HMI display panel, status LED, power regulation circuit, serial communication transceiver chip, event memory chip.

LED indicators

Power LED, run LED, alarm LED, trip fault LED.

Hardware self-diagnosis

CT circuit fault, RTD sensor open/short circuit, overvoltage, undervoltage, memory error, internal hardware fault detection, records fault code and historical event log.

Programming software

GE EnerVista configuration software for protection threshold setup, motor parameter setting, event viewing, parameter backup and firmware upgrade.

Electrical & Process Parameters

Model:369-HI-0-0-0-0-H-E Brand:GE Multilin Device type:Motor Management Protection Relay Power supply:50-300VDC / 60-265VAC Input:Current transformer, RTD temperature signal Output:Relay dry contact Communication:Modbus RTU, DNP3 Protection:Overload, overcurrent, earth fault, phase unbalance, RTD over temperature

Mechanical & Structure

Mounting:Panel mount inside control cabinet Protection class:IP20 Housing:Flame retardant metal and plastic enclosure

Environmental

Operating temperature:-20℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: GE Multilin original 369 series motor protection relay

Installation

Follow ESD protection procedure before operation. Install GE Multilin relay on cabinet panel. Connect CT current wiring, RTD sensor cable, power cable and relay trip wiring to corresponding terminals. Configure motor protection parameters via EnerVista software or local HMI before commissioning.

Interface

AC/DC power terminals, CT current input terminals, RTD temperature input terminals, relay output terminals, communication port, local HMI keypad interface.

Diagnostic

No current reading: CT wiring reverse or open circuit. Continuous over-temperature alarm: RTD sensor damage or wrong wiring. No communication: incorrect Modbus address or bus wiring fault.

Product Brief

GE 369-HI-0-0-0-0-H-E GE Multilin 369 series motor management relay, AC/DC universal power supply, multi protection functions, panel mount, for industrial motor protection and monitoring.
