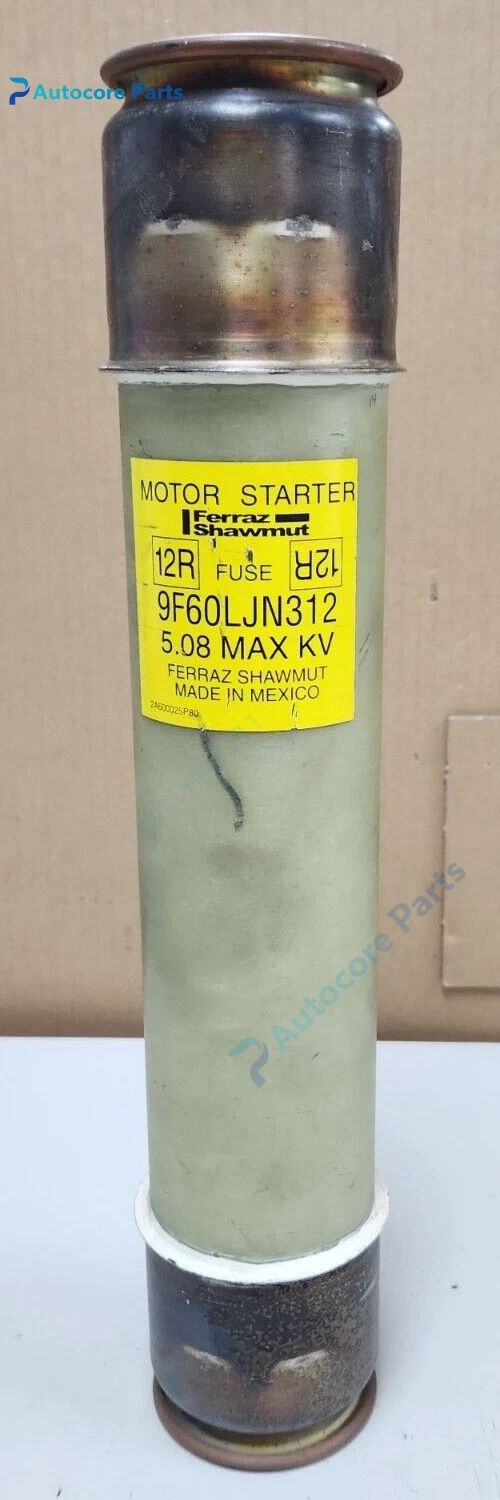

GE 9F60LJN312 Medium Voltage Fuse Unit

Module Feature

9F60LJN312 belongs to GE Amp-Trap 9F60 series. It is an R-rated backup medium voltage current limiting fuse, specially designed for GE medium voltage motors and motor controllers. This fuse adopts epoxy insulated barrel structure, with high interrupting capacity up to 50kA. It must be used in coordination with motor overload relay to form complete motor protection scheme. Ferrule terminal structure, installed by spring reinforced clip holder. Widely applied in power plant, petrochemical and water treatment medium voltage motor starter cabinets for short circuit backup protection.

Working principle

When short-circuit fault occurs in the protected GE motor circuit, the internal fuse element melts instantly. The quartz sand filler inside the fuse barrel quenches electric arc rapidly, cuts off short-circuit current within extremely short time, to protect medium voltage motor and GE control equipment from destructive fault current damage. For overload condition, it needs to cooperate with overload relay to realize protection.

Onboard components

Epoxy insulating cylinder, silver plated fuse element, quartz sand arc-quenching filler, copper ferrule terminals, sealing assembly.

LED indicators

No LED indicators.

Hardware self-diagnosis

Visual inspection of cylinder crack, sealing damage, terminal corrosion; resistance measurement for fuse integrity, insulation resistance test.

Programming software

No configuration software required.

Electrical & Process Parameters

Model:9F60LJN312 Brand:GE Device type:Medium Voltage Backup Fuse Rated voltage:5080VAC Rating:12R Interrupt rating:50kA Class:R Protection:Short circuit backup protection for medium voltage motor

Mechanical & Structure

Mounting:Clip ferrule mount inside MV cabinet Protection class:IP00 Housing:Epoxy glass fiber cylinder enclosure

Environmental

Operating temperature:-40℃ ~ +85℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: GE original Amp-Trap medium voltage motor protection fuse

Installation

Cut off medium voltage power supply and complete lockout-tagout before replacement. Insert fuse into matched spring clip holder of GE motor starter, ensure both ferrule terminals are fully contacted. Check mechanical clamping condition. Restore power only after cabinet door closed and safety interlock reset.

Interface

Copper ferrule terminals, matched with spring clip holder.

Diagnostic

Fuse blown: internal element rupture caused by short-circuit fault. High VSWR: cylinder crack or surface contamination. Poor contact: loose clip holder or corroded ferrule.

Product Brief

GE 9F60LJN312 Amp-Trap 9F60 series medium voltage backup fuse, 5080VAC 12R, current limiting type, ferrule clip mount, used for GE medium voltage motor short circuit backup protection.
