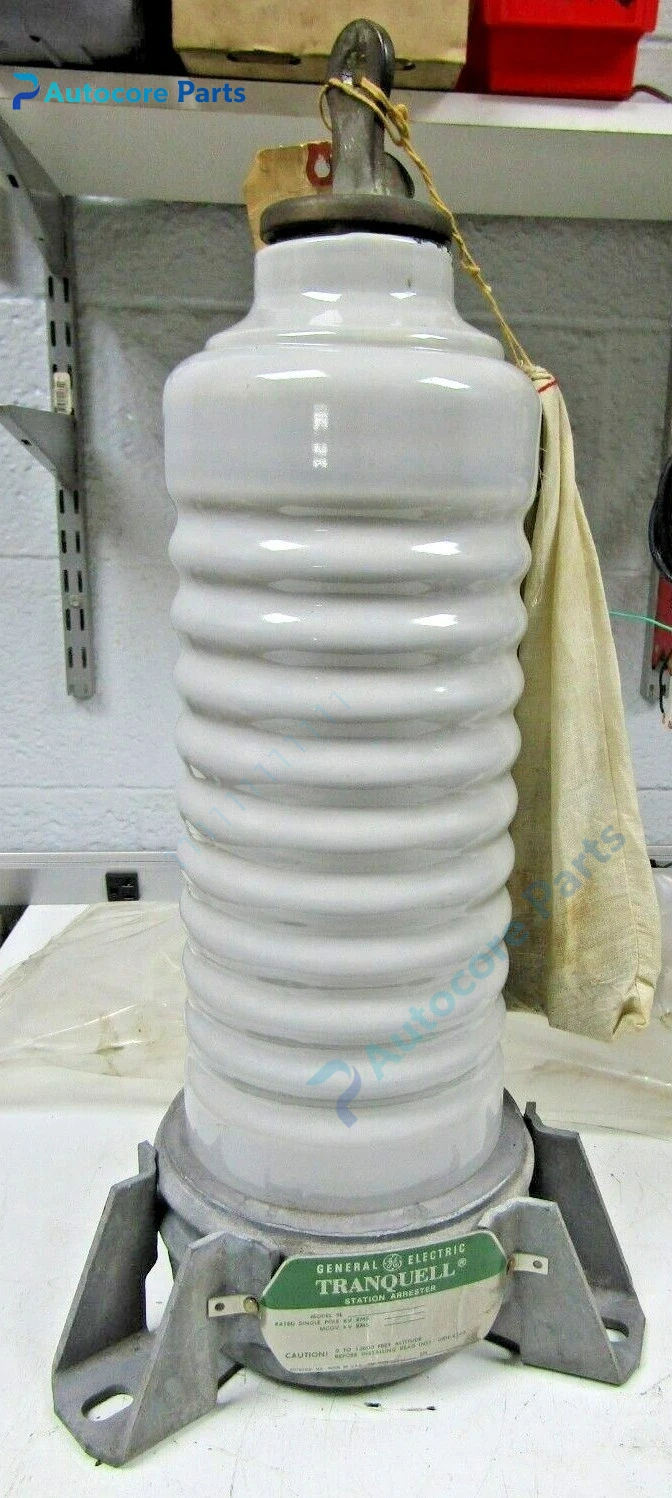

GE 9L11XGB015 Surge Arrester Unit

Module Feature

9L11XGB015 is GE metal oxide surge arrester for medium voltage power distribution system. It adopts non-linear zinc oxide varistor core without series gap design. It can absorb lightning impulse surge and system switching overvoltage energy rapidly, limiting overvoltage amplitude to protect transformers, switchgears and other substation equipment from insulation breakdown. Silicone rubber housing design provides excellent pollution resistance and hydrophobic performance, suitable for outdoor substation and overhead line pole mounting. This model has been phased out by GE. Widely used in distribution substation, overhead transmission line lightning protection.

Working principle

Under normal system operating voltage, the zinc oxide resistor maintains high impedance state, only tiny leakage current flows through arrester. When lightning surge or switching overvoltage invades, resistor impedance drops sharply and forms low resistance discharge channel, releasing surge energy to ground. After surge disappears, arrester recovers high impedance automatically, blocking power frequency follow current.

Onboard componentsZinc oxide varistor stack, silicone rubber shed housing, internal insulation filler, upper and lower metal terminal fittings, sealing assembly.

LED indicatorsNo onboard LED indicators.

Hardware self-diagnosisVisual inspection of housing crack, tracking and pollution; leakage current measurement, insulation test, check for internal moisture ingress.

Programming softwareNo configuration software required.

Electrical & Process ParametersModel:9L11XGB015 Brand:GE Device type:Metal Oxide Surge Arrester Housing:Silicone rubber Type:Gapless metal oxide arrester Function:Lightning surge, switching overvoltage protection Status:Discontinued

Mechanical & StructureMounting:Outdoor pole or substation bracket mounting Protection class:Outdoor weatherproof Housing:Silicone rubber composite insulator

EnvironmentalOperating temperature:-40℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~100% non-condensing Certification:UL compliant Status: GE original medium voltage composite surge arrester

InstallationFollow lockout-tagout safety procedure before operation. Mount GE 9L11XGB015 arrester on metal bracket or crossarm. Connect high voltage terminal to phase conductor and bottom terminal to reliable grounding grid. Torque connection fittings properly, inspect insulation clearance before energizing.

InterfaceHigh voltage top terminal, ground bottom terminal.

DiagnosticPersistent high leakage current: internal varistor aging or dampness. Housing surface tracking/crack: insulation degradation, arrester needs replacement. Frequent surge counter action: heavy lightning activity nearby.

Product BriefGE 9L11XGB015 gapless metal oxide surge arrester with silicone rubber housing, outdoor MV lightning and switching overvoltage protection, obsolete spare part for substation and overhead distribution line.
