GE AMCB6GB Circuit Breaker Mounting Module Unit

Module Feature

AMCB6GB belongs to GE Spectra series. It is a dedicated 6-pole mounting base module for GE Spectra molded case circuit breakers, maximum rated current 1200A, rated voltage 600V. This module provides mechanical fixing and electrical bus connection interface for matched GE circuit breakers, designed for installation inside Type AP panelboards. It adopts high strength insulating material, excellent mechanical rigidity and dielectric performance, anti-vibration for long-term operation in power distribution cabinet. Widely applied in industrial power distribution, commercial building power panel and low voltage switchgear systems.

Working principle

The GE AMCB6GB module acts as the mounting carrier and bus connector base. After the circuit breaker is installed and locked on this module, internal bus bars realize electrical connection between main bus and circuit breaker. It provides mechanical support and insulation isolation for breaker, ensures stable current transmission, and cooperates with cabinet structure to meet safety clearance requirements.

Onboard components

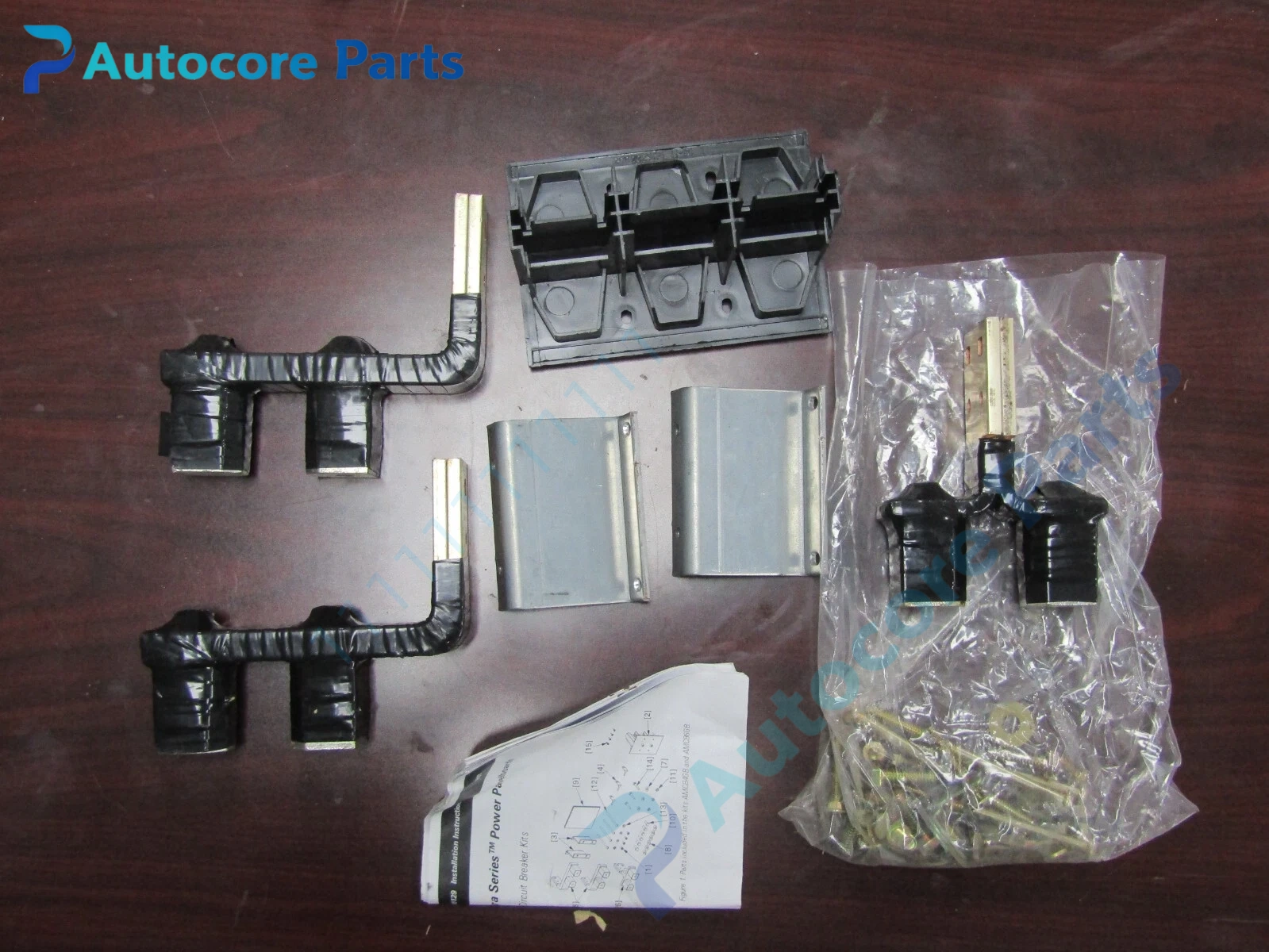

Fiberglass reinforced insulating base, copper bus bar assembly, locking mechanism, insulation barrier, mounting screw fittings, terminal isolation shield.

LED indicators

No LED indicators.

Hardware self-diagnosis

Visual inspection of insulation base crack, bus bar oxidation, loose locking mechanism; insulation resistance test, tightness check of bus connection.

Programming software

No configuration software required.

Electrical & Process Parameters

Model:AMCB6GB Brand:GE Device type:Circuit Breaker Mounting Module Rated voltage:600VAC Max current:1200A Pole:6 Pole Application:For GE Spectra circuit breaker Protection:Insulation isolation, short circuit withstand

Mechanical & Structure

Mounting:Installed inside GE Type AP panelboard Protection class:IP20 Housing:Fiberglass reinforced flame retardant insulation base

Environmental

Operating temperature:-20℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:UL compliant Status: GE original Spectra series breaker mounting module for low voltage panelboard

Installation

Cut off all upstream power supply and implement lockout-tagout before operation. Fix GE AMCB6GB module inside panelboard cabinet. Install matched Spectra circuit breaker onto module and lock the mechanical latch. Check bus bar contact and insulation gap before power recovery.

Interface

Main bus bar connection terminals, circuit breaker plug-in contact interface.

Diagnostic

Overheating at connection point: loose bus contact or oxidized copper surface. Breaker cannot lock: mounting base deformation or latch damage. Insulation leakage: insulation base crack or surface contamination.

Product Brief

GE AMCB6GB Spectra series 6-pole circuit breaker mounting module, 600V 1200A max, used for GE Spectra breaker installation in Type AP panelboard power distribution cabinet.
