GE CR307E1044FJDTLT Motor Starter Unit

Module Feature

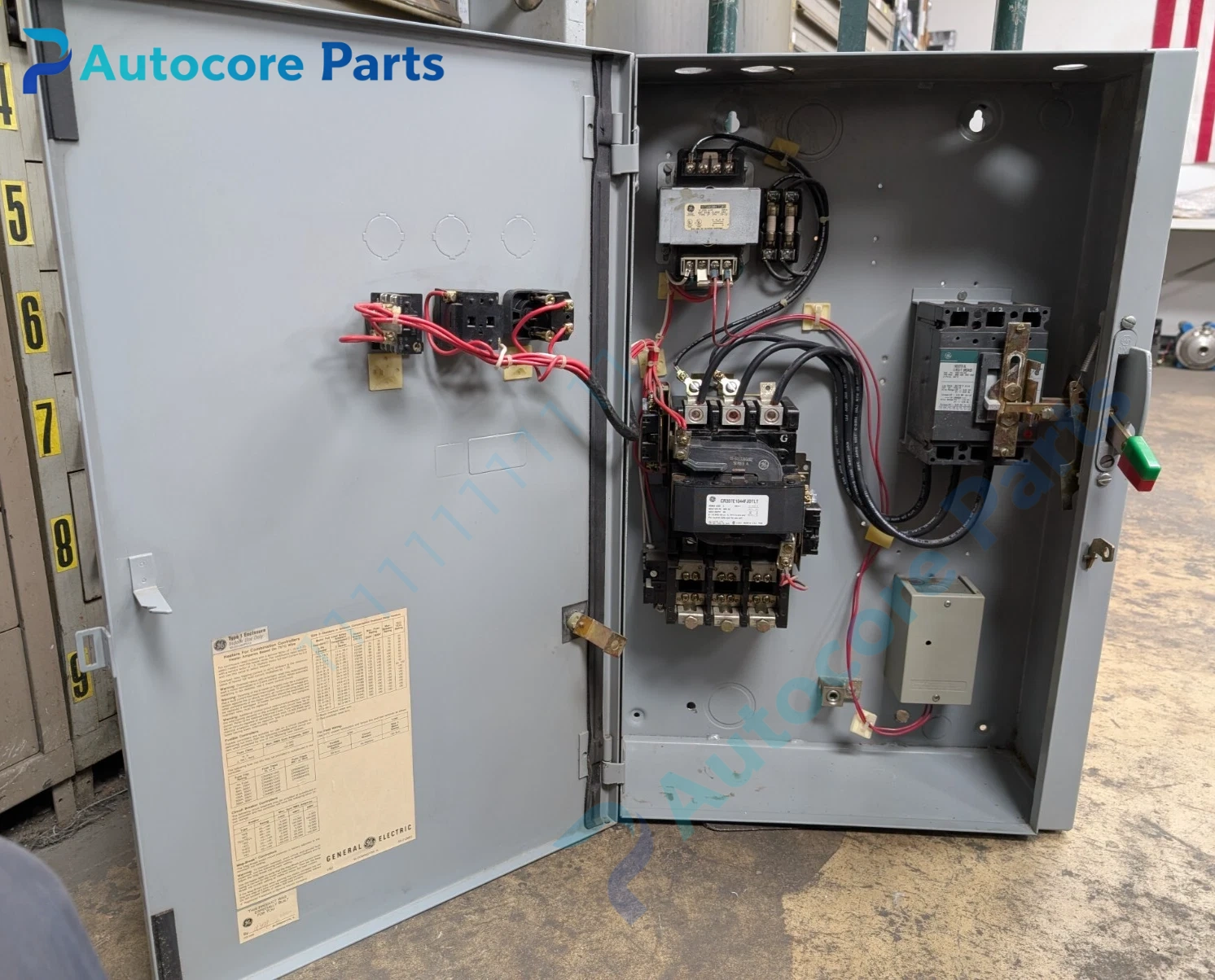

CR307E1044FJDTLT belongs to GE CR307 NEMA magnetic motor starter series. It is a complete integrated motor control assembly combining magnetic contactor and thermal overload relay. It realizes remote and local start-stop control for three-phase AC motors. Built-in thermal overload element provides motor overload and phase loss protection. The enclosure adopts heavy-duty metal housing, strong anti-vibration and dust-proof capability. Equipped with auxiliary contact for status feedback and interlock control. Widely applied in water treatment, petrochemical and manufacturing workshop fan, pump and conveyor motor control.

Working principle

When control voltage is applied to GE contactor coil, electromagnetic force pulls armature to close main contacts, motor is powered and starts to run. If motor overload or phase unbalance fault occurs, thermal overload relay heats and trips, cutting off contactor coil power to stop motor. Auxiliary contact synchronously changes state to send running/fault signal to PLC or alarm circuit.

Onboard components

Magnetic contactor assembly, thermal overload relay, control coil, silver alloy main contacts, arc extinguishing chamber, auxiliary contact block, metal enclosure, terminal screw lugs.

LED indicators

No LED indicators.

Hardware self-diagnosis

Coil open/short circuit, contact ablation, overload relay trip failure, mechanical jamming, contact resistance measurement and insulation inspection.

Programming software

No configuration software required.

Electrical & Process Parameters

Model:CR307E1044FJDTLT Brand:GE Device type:NEMA Magnetic Motor Starter Rated voltage:600VAC Max motor load:Three phase AC motor Protection:Overload, phase loss, short circuit (with external fuse)

Mechanical & Structure

Mounting:Wall mount inside control room or field cabinet Protection class:IP20 Housing:Heavy gauge metal enclosure

Environmental

Operating temperature:-20℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: GE original CR307 series magnetic motor starter

Installation

Cut off main power and control power before installation. Fix GE CR307E1044FJDTLT starter firmly on mounting wall. Wire main power, motor cable and control circuit to corresponding terminals. Adjust overload relay trip current according to motor rated current, test start-stop action after wiring.

Interface

Main power terminals, motor load terminals, control coil terminals, auxiliary signal terminals.

Diagnostic

Motor cannot start: control coil damage or wrong control voltage. Starter trips frequently: overload relay setting error or motor actual overload. Contact overheat: loose wiring or main contact burning.

Product Brief

GE CR307E1044FJDTLT CR307 series NEMA magnetic motor starter, 600VAC rated, integrated thermal overload protection, metal enclosure wall mount, for three-phase industrial motor start-stop control.
