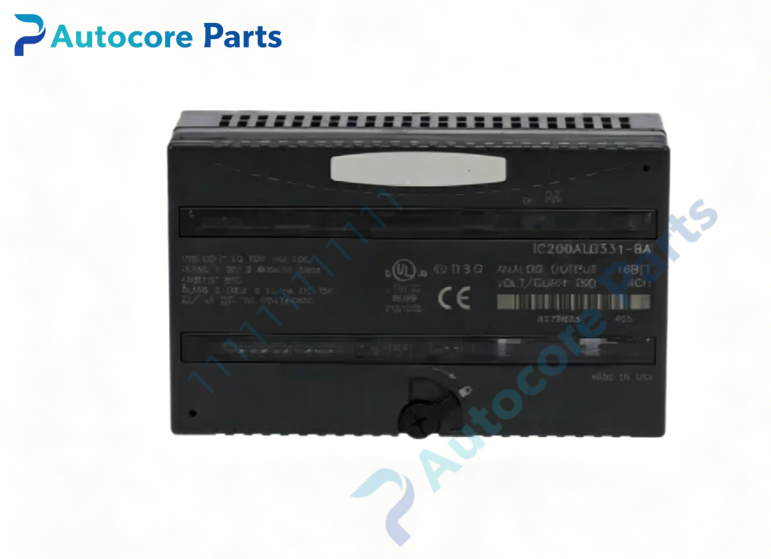

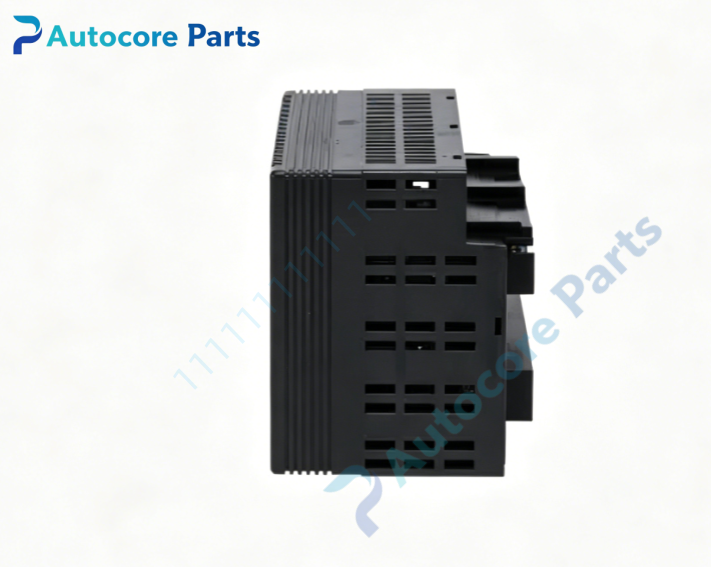

GE Fanuc IC200ALG331-EB Analog Output Module

Technical SpecificationsModel：IC200ALG331-EB Brand：GE Fanuc Product Type: VersaMax plug-in analog output module

Module Feature:Function: Convert digital values from VersaMax PLC CPU to analog voltage and current signals to regulate valves, frequency converters and field actuators. Channels:4 fully isolated analog output channels Signal Ranges: ±10V,0~10V voltage; 0~20mA,4~20mA current Resolution:16-bit D/A conversion Isolation:1500V channel-to-backplane isolation Load capacity: Current max 750Ω load; Voltage ≥1kΩ load LED indicators: OK, FIELD diagnostic lights Hardware self-diagnosis: overrange detection, open load, short circuit and backplane communication monitoring Programming software: Proficy Machine Edition EB represents hardware revision of the module

Electrical ParametersBackplane supply:+3.3V / +5VDC External field power:18~30VDC Power consumption:Max 3.0W

Mechanical & Structure:Mounting:DIN rail mount, VersaMax carrier slot installation Weight:0.25kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC200ALG331-EB belongs to GE Fanuc VersaMax I/O family. Compatible with VersaMax CPU, power supply and other VersaMax I/O modules. Widely used for water treatment, chemical and factory process control systems.

FunctionIC200ALG331-EB is 4-channel 16-bit isolated analog output module for VersaMax PLC system. It generates standard analog control signals for field actuators. High isolation prevents ground loop interference between field equipment and PLC. Built-in diagnostics quickly identify open load or short circuit wiring faults.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off rack power. Insert IC200ALG331-EB into VersaMax carrier slot. Connect shielded control cables to terminal block. Configure signal range and failsafe value in Proficy Machine Edition. Power on and verify analog output performance.

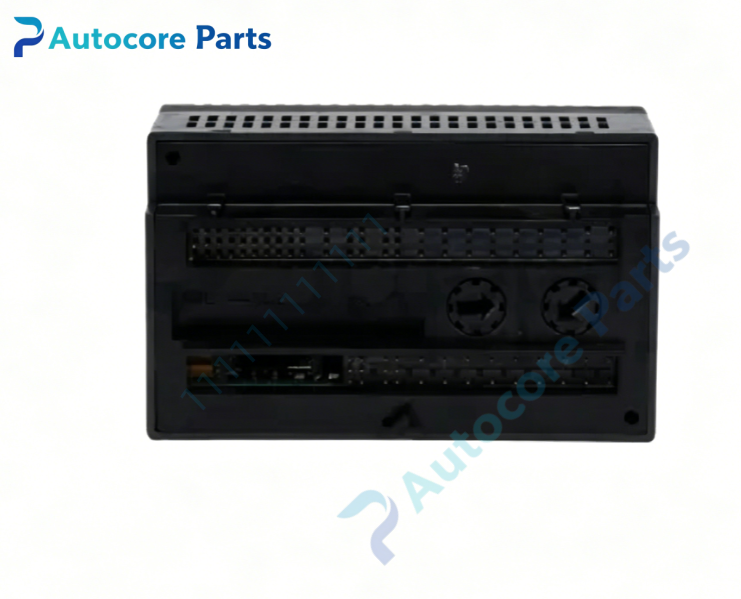

InterfaceVersaMax backplane gold-edge connector,field analog output terminal block,on-board OK / FIELD LED indicators for GE Fanuc IC200ALG331-EB.

DiagnosticNo analog output:Check 24VDC field supply,actuator wiring and load condition. Output signal unstable:Inspect cable shielding and ground potential difference. FIELD fault alarm:Open load,short circuit or overrange output fault.

Product BriefIC200ALG331-EB is GE Fanuc legacy VersaMax 4-channel 16-bit isolated analog output module,for driving control valves and field actuators,discontinued industrial I/O spare card.
