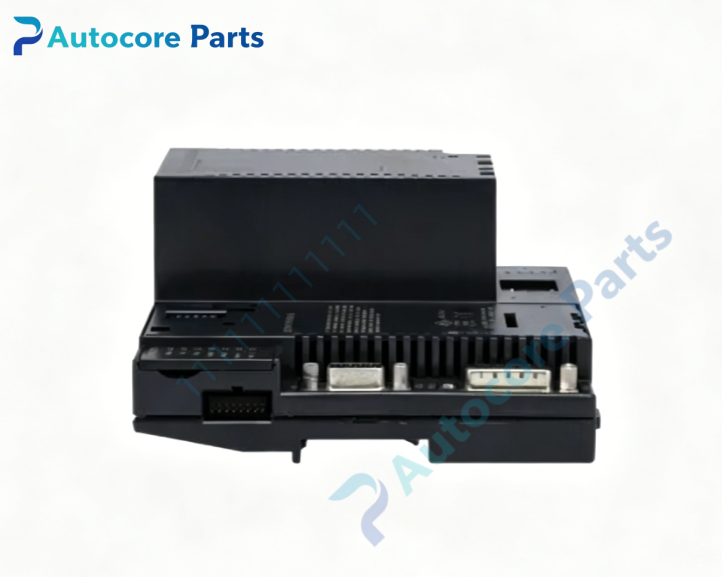

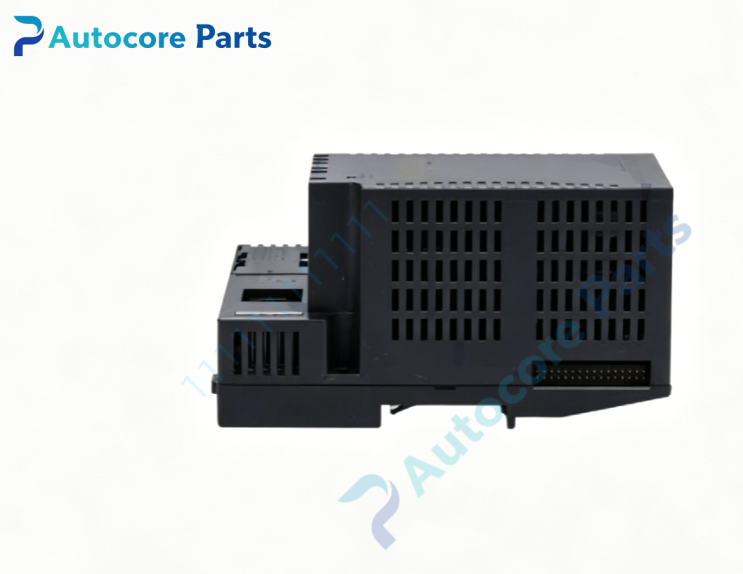

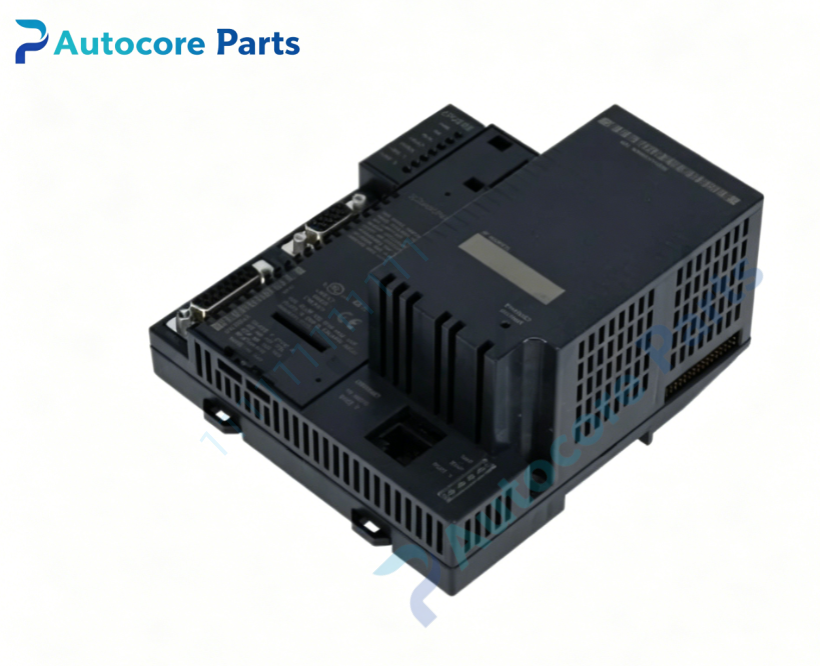

GE Fanuc IC200CPUE05-CG CPU Module

Technical SpecificationsModel：IC200CPUE05-CG Brand：GE Fanuc Product Type: VersaMax PLC CPU controller module

Module Feature:Function: Main controller for VersaMax PLC system, executes deterministic control logic, manages local and remote I/O modules, supports Ethernet and serial communication. Memory:128KB configurable user program & data memory Max I/O capacity: Up to 64 modules, maximum 2048 I/O points Communication ports: 10Mbps Ethernet, RS232, RS485 serial port Supported protocols: SNP, Modbus RTU, EGD Programming languages:Ladder Diagram, Structured Text, Function Block Diagram LED indicators: PWR, RUN, FAULT, LINK diagnostic lights Hardware self-diagnosis: memory integrity, firmware check, backplane bus and communication monitoring Programming software: Proficy Machine Edition, VersaPro CG = hardware revision code

Electrical ParametersBackplane supply:+5VDC Power consumption:Max 3.5W

Mechanical & Structure:Mounting:DIN rail mount, VersaMax carrier slot installation Weight:0.26kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC200CPUE05-CG belongs to GE Fanuc VersaMax control family. Compatible with VersaMax backplane, power supply and full series VersaMax I/O modules. Widely used for factory automation, water treatment and small process control applications.

FunctionIC200CPUE05-CG is VersaMax compact CPU controller. Embedded Ethernet realizes HMI connection and EGD real-time data exchange. Dual serial ports support Modbus RTU and SNP communication. It controls local I/O and distributed remote I/O blocks. Onboard LEDs show power, running state and fault information for field maintenance.

InstallationFollow lockout/tagout safety procedure before installation. Install module on VersaMax carrier DIN rail. Connect backplane and 24VDC power supply. Wire Ethernet and serial cables. Download PLC project and configure network parameters in programming software. Power on and verify program execution and bus scan.

InterfaceVersaMax backplane gold-edge connector, Ethernet RJ45 port, RS232 / RS485 terminal ports,on-board PWR / RUN / FAULT LED indicators for GE Fanuc IC200CPUE05-CG.

DiagnosticCPU cannot enter RUN mode:Check backplane power, downloaded project and memory status. Network communication abnormal:Inspect Ethernet cable,IP address and switch port. Fault LED active:Firmware corruption, memory error or internal hardware fault.

Product BriefIC200CPUE05-CG is GE Fanuc legacy VersaMax compact PLC CPU with Ethernet and dual serial ports,for small and medium automation control systems,discontinued industrial spare controller.
