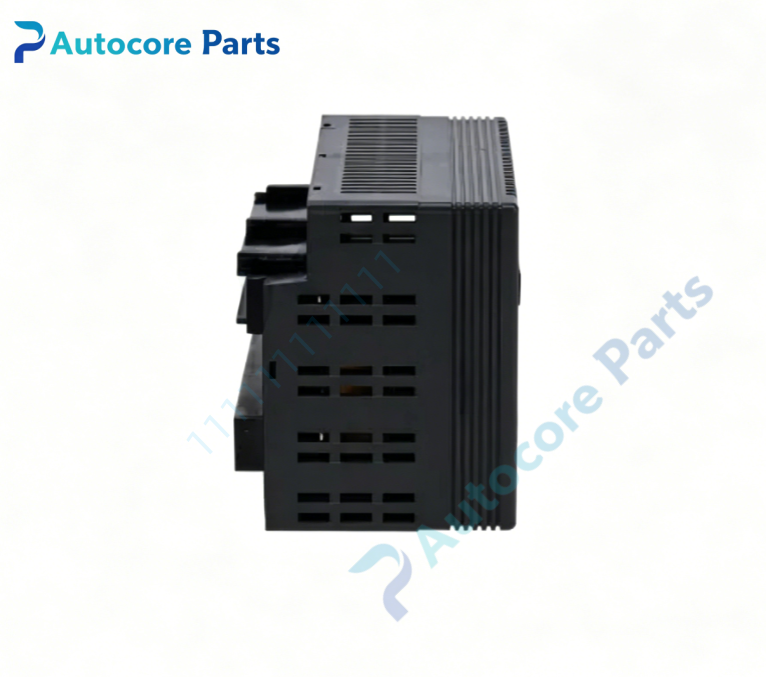

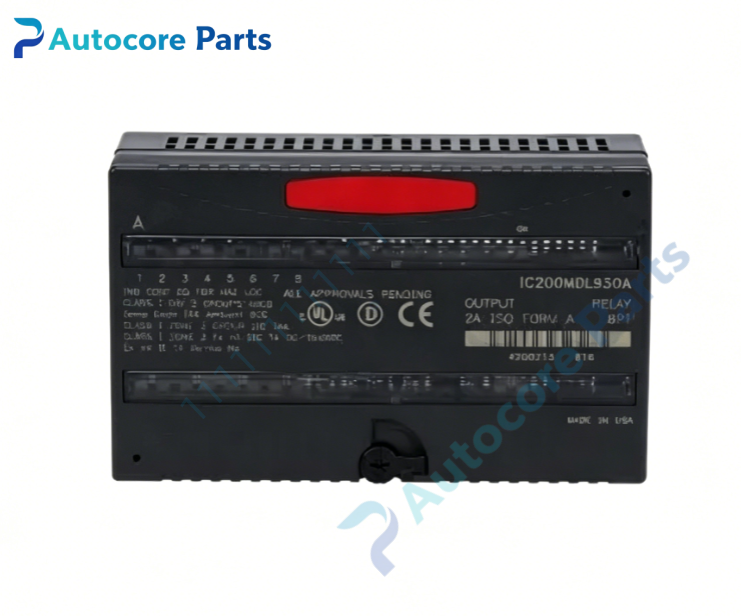

GE Fanuc IC200MDL930 Relay Output Module

Technical SpecificationsModel：IC200MDL930 Brand：GE Fanuc Product Type: VersaMax discrete relay output module

Module Feature:Function: Discrete relay output module for VersaMax PLC system, switches external load circuits via relay contact signals controlled by PLC logic. Channels:8 relay output points Contact type: Form A normally open contact Rated contact rating: 2A @240VAC, 2A @30VDC Isolation: Channel-to-backplane isolation LED indicators: Module power and per-channel status lights Hardware self-diagnosis: Backplane communication monitoring Programming software: Proficy Machine Edition, VersaPro

Electrical ParametersBackplane supply:+5VDC Power consumption:Max 2.0W Field load power supplied externally

Mechanical & Structure:Mounting:DIN rail mount, VersaMax carrier slot installation Weight:0.22kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC200MDL930 belongs to GE Fanuc VersaMax I/O family. Compatible with VersaMax CPU, power supply and other VersaMax I/O modules. Widely used in factory automation, water treatment and general control system switching applications.

FunctionIC200MDL930 is 8-point relay output module for VersaMax PLC. Each channel uses independent relay contact to switch external loads. Channel isolation protects PLC backplane from surge and noise of field load equipment. Onboard LEDs display each output state for quick on-site inspection.

InstallationFollow lockout/tagout safety procedure before installation. Install IC200MDL930 on VersaMax carrier DIN rail. Wire field load control wiring to terminal block. Insert module into VersaMax backplane slot. Configure output logic in programming software. Power on and verify relay switching action.

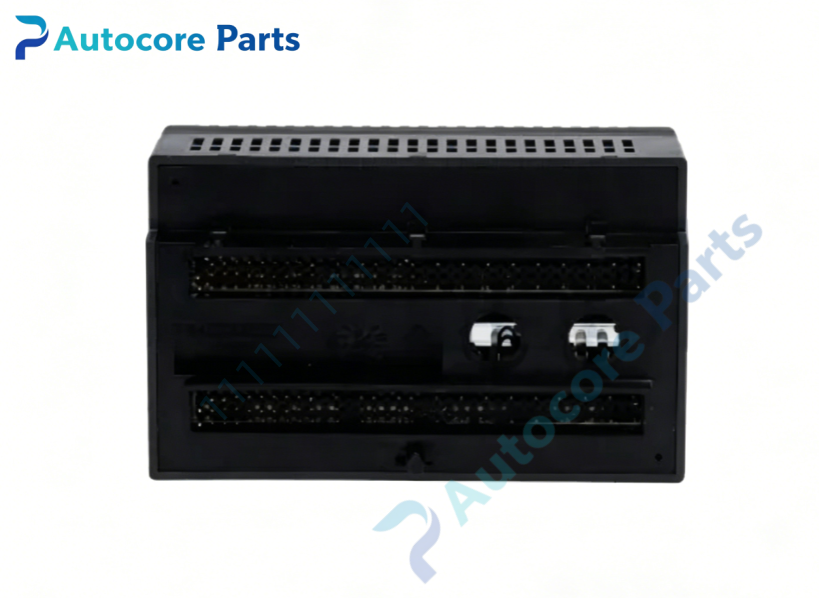

InterfaceVersaMax backplane gold-edge connector,field discrete output terminal block,on-board power / channel status LED indicators for GE Fanuc IC200MDL930.

DiagnosticNo relay action:Check field load power, relay contact wiring and PLC logic status. Module offline:Inspect backplane power supply and module seating. Contact failure:Overload current or aging relay contact.

Product BriefIC200MDL930 is GE Fanuc legacy VersaMax 8-point relay discrete output module,for switching external field loads in automation control,discontinued I/O spare card.
