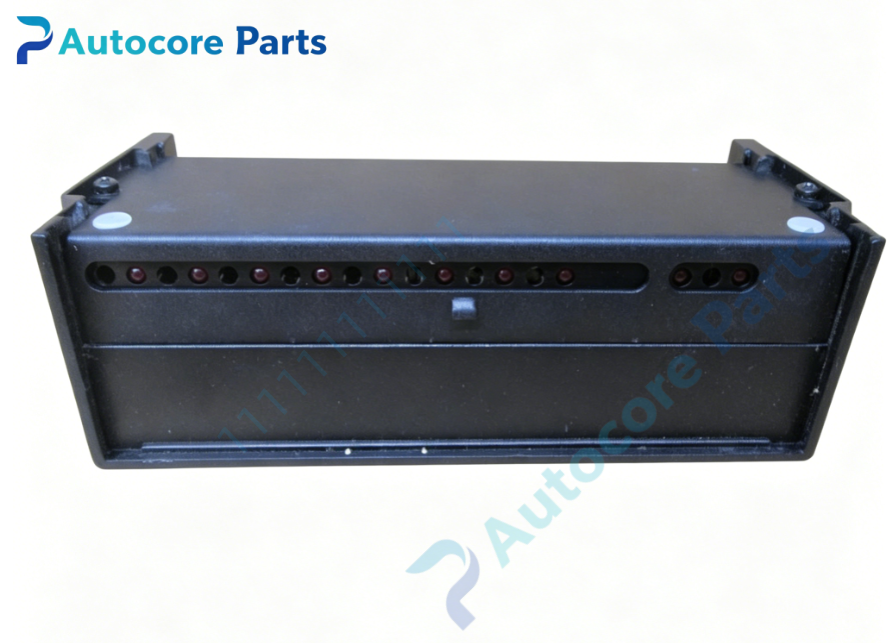

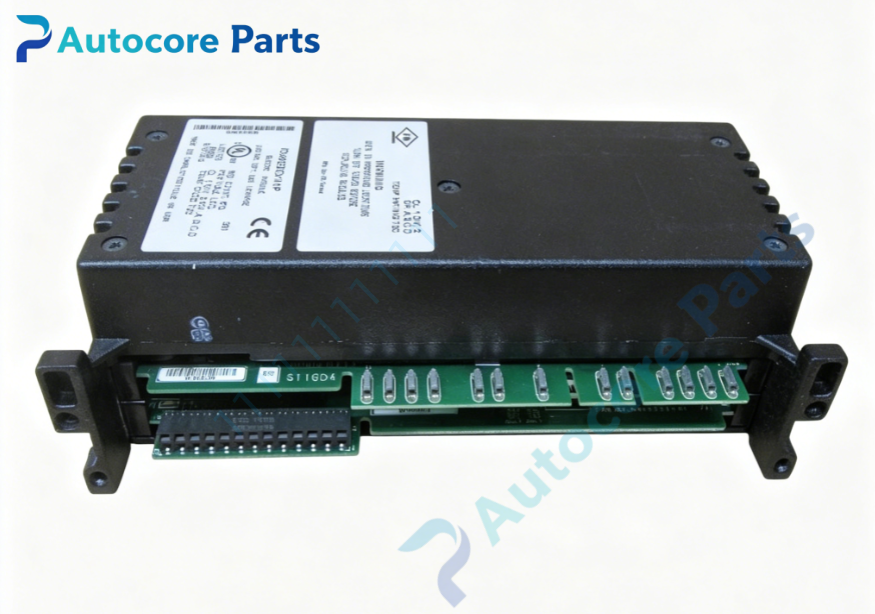

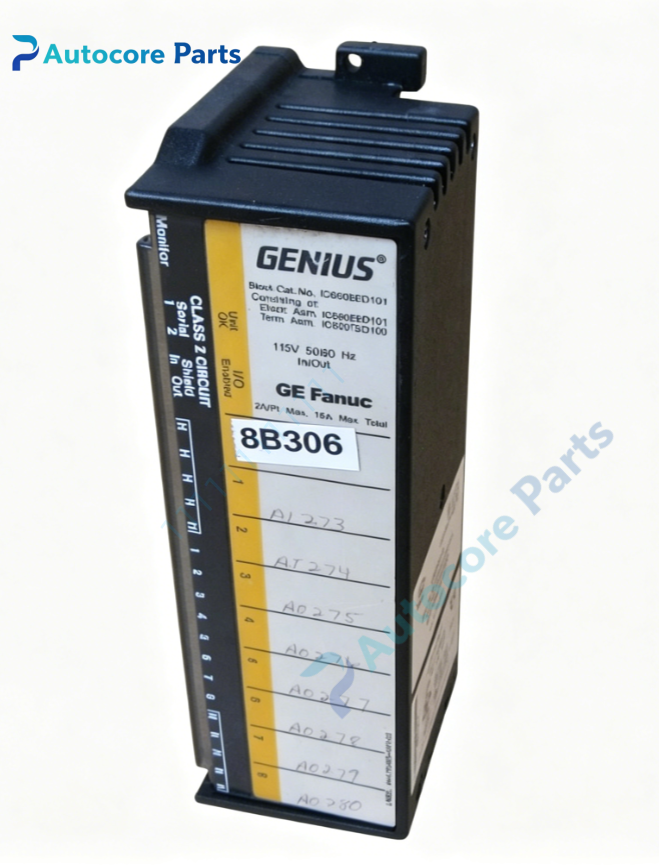

GE Fanuc IC660BBD110 Discrete Input Block

Technical SpecificationsModel：IC660BBD110 Brand：GE Fanuc Product Type: Genius intelligent distributed discrete input block

Module Feature:Function: Intelligent remote I/O block for Genius bus system,collect 115VAC discrete signals from field switches,limit switches and pushbuttons,transmit digital status data to main PLC controller via Genius serial bus. Channels:16 discrete input points, divided into 2 independent banks with 8 points per bank Input voltage range:93~132VAC,47~63Hz Supported devices:2-wire and 3-wire contact closure sensors,proximity switches Threshold:Configurable on/off threshold from 25% to 85% of line voltage per bank Power source:Powered from input AC line,separate external power supply is not required Orientation:Supports upright or upside-down installation LED indicators:Power,bus communication and per-channel status lights Hardware self-diagnosis:Open wire detection,short circuit alarm,bus communication monitoring Communication protocol:Genius serial bus Programming software:Logicmaster 90,Proficy Machine Edition

Electrical ParametersRated input:115VAC Frequency:47Hz to 63Hz

Mechanical & Structure:Mounting:DIN rail mount Protection class:IP20 Dimension:133mm ×75mm ×25mm Weight:0.32kg

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC660BBD110 belongs to GE Fanuc Genius distributed I/O family. Compatible with Series90-30,Series90-70 and VersaMax Genius controller. Widely used for factory automation,machine control and process distributed signal collection.

FunctionIC660BBD110 is 16-point 115VAC intelligent Genius discrete input block. It reads contact signals from field switches and sends status data to PLC through Genius bus. Each 8-point bank supports independent configurable voltage threshold. Built-in open/short circuit diagnostic helps field troubleshooting. Module draws operating power directly from input AC wiring,eliminating separate 24V power feed for I/O block.

InstallationFollow lockout/tagout safety procedure before installation. Mount IC660BBD110 on DIN rail. Wire 115VAC field switch signals to terminal block. Connect Genius bus cable to build distributed I/O network. Configure channel threshold and fault detection in programming software. Power on and verify bus communication and input status.

InterfaceGenius bus connector,115VAC field discrete input terminal block,on-board power / bus / channel LED indicators for GE Fanuc IC660BBD110.

DiagnosticNo input status change:Check 115VAC field supply,switch contact and wiring. Bus communication lost:Inspect Genius bus cable,terminator and bus address setting. Wiring fault alarm:Open circuit or short circuit detected on field input wiring.

Product BriefIC660BBD110 is GE Fanuc legacy Genius distributed intelligent 16-point 115VAC discrete input block,used for remote field switch signal acquisition over Genius serial bus,discontinued I/O spare module.
