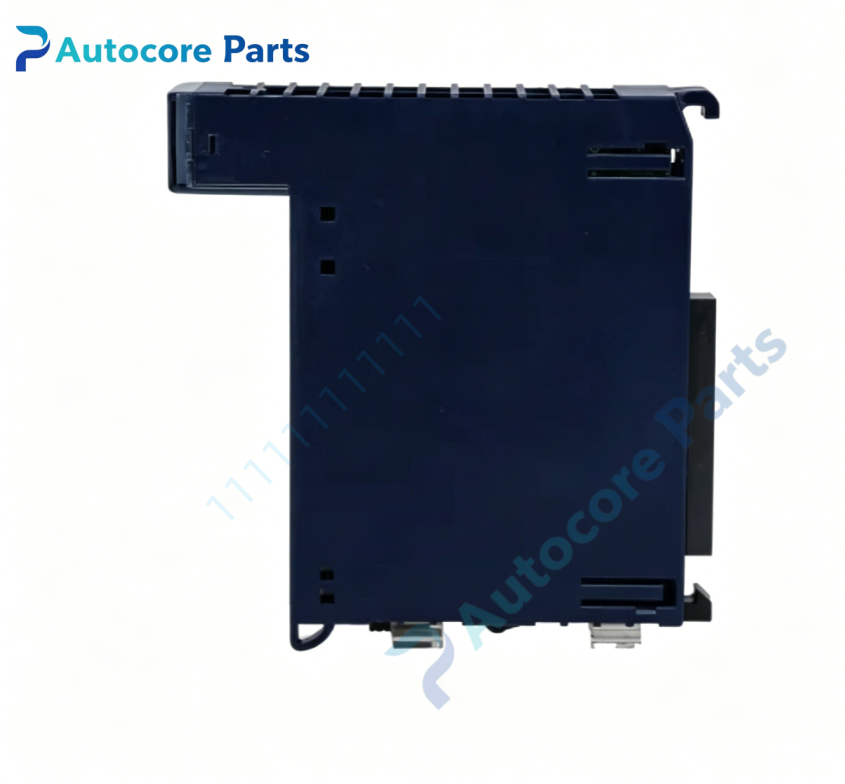

GE Fanuc IC695ALG412 Analog Output Module

Technical SpecificationsModel：IC695ALG412 Brand：GE Fanuc Product Type: Single-slot plug-in isolated analog output module for PACSystems RX3i universal backplane

Module Feature:Function: Convert digital values from RX3i CPU to analog voltage or current signals to control valves, variable frequency drives and field actuators. Channel:4 fully isolated output channels Signal Ranges: Current: 0~20mA,4~20mA; Voltage: ±10V,0~10V Resolution:16-bit D/A conversion Isolation: Channel-to-backplane isolation, 1500V continuous isolation Output drive capability: Current max 750Ω load; Voltage min 1kΩ load Diagnostic feedback: Readback of actual output value LED indicators: MODULE OK, FIELD STATUS indicators Hot-swap capable under qualified system configuration Hardware self-diagnosis: overrange detection, open load, short circuit, backplane communication monitoring Programming software: Proficy Machine Edition

Electrical ParametersBackplane supply:+5VDC, max 280mA Power consumption:Max 3.2W Field power supplied externally

Mechanical & Structure:Mounting:Plug-in installation into RX3i universal backplane single slot Protection class:IP20 Weight:0.35kg

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC695ALG412 belongs to GE Fanuc PACSystems RX3i I/O family. Compatible with RX3i CPU, power supply and other RX3i I/O modules. Widely used in chemical,water treatment,power plant and process automation systems for analog control output.

FunctionIC695ALG412 is 4-channel 16-bit isolated analog output module for GE Fanuc RX3i PACSystems. It generates standard 4-20mA and ±10V analog control signals to operate field actuators. Channel isolation prevents ground loop noise interference. Built-in open load and short circuit diagnostics help locate field wiring faults quickly. Hot-swap function allows module replacement without full rack shutdown.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off rack backplane power. Insert IC695ALG412 into vacant RX3i slot and lock retainer. Connect shielded cable to terminal block. Configure signal range and failsafe value in Proficy Machine Edition. Power on and verify analog output.

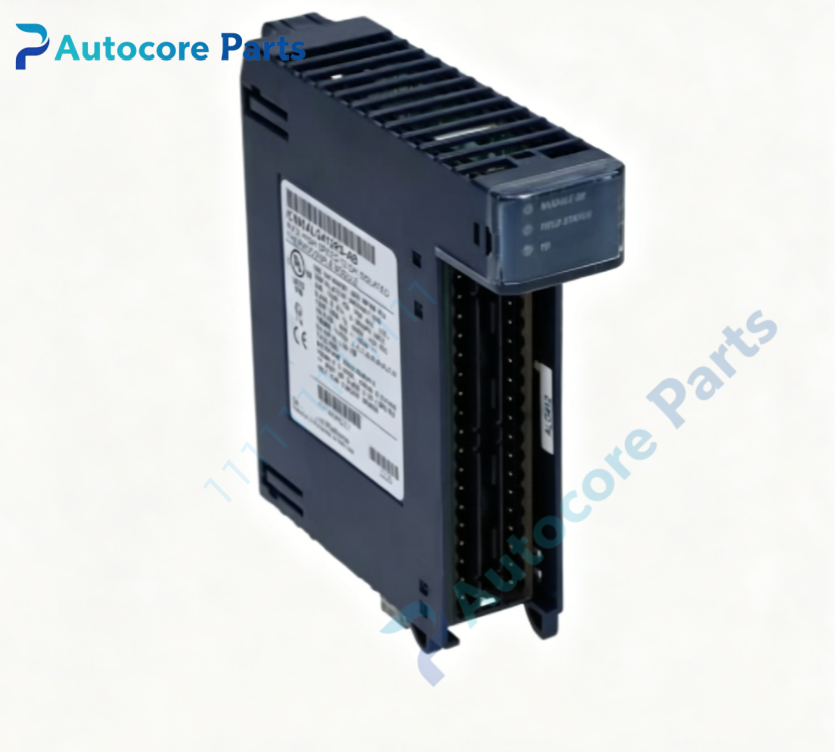

InterfaceRX3i backplane gold-edge connector,field analog output terminal block,on-board MODULE OK / FIELD STATUS LED indicators for GE Fanuc IC695ALG412.

DiagnosticNo analog output:Check backplane power,actuator wiring,channel range setup and external load. Output unstable:Inspect cable shielding and ground potential difference. FIELD STATUS alarm:Open load,short circuit or overrange output fault.

Product BriefIC695ALG412 is GE Fanuc legacy PACSystems RX3i 4-channel isolated 16-bit analog output module,for driving process valves and field actuators,discontinued I/O spare card.
