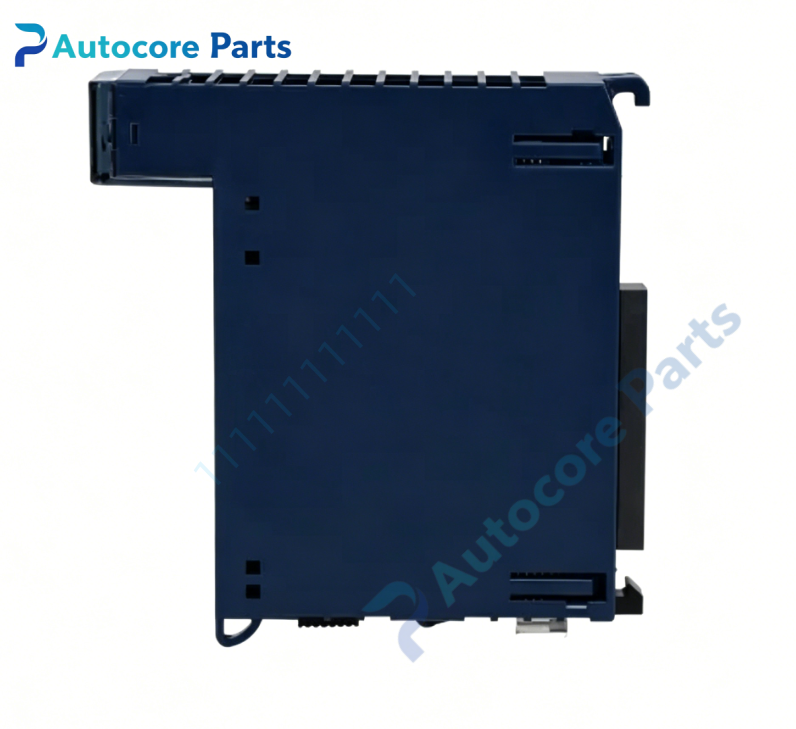

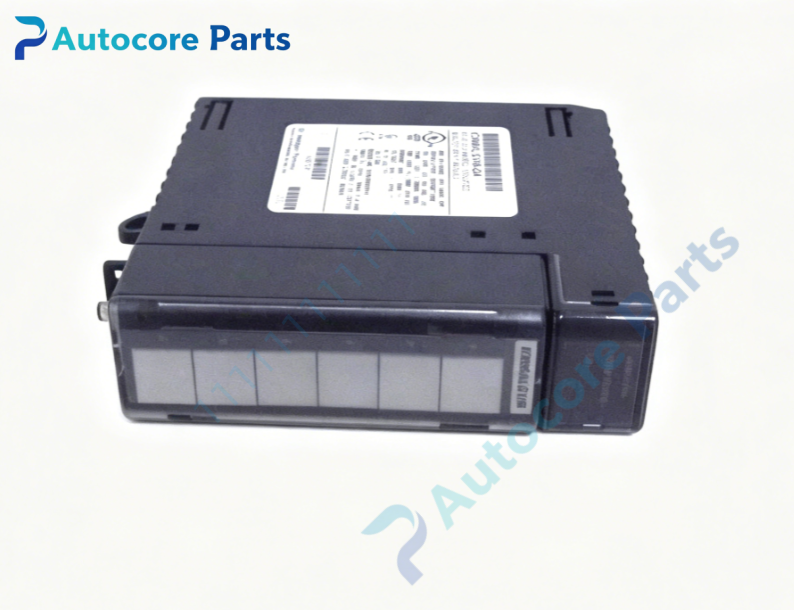

GE Fanuc IC695ALG106-DA Analog Input Module

Technical SpecificationsModel：IC695ALG106-DA Brand：GE Fanuc Product Type: Single-slot plug-in isolated analog input module for PACSystems RX3i universal backplane

Module Feature:Function: Convert analog voltage and current signals from field transmitters and sensors into digital values for RX3i PLC processing, each channel with independent galvanic isolation. Channels:6 individually isolated analog input channels Signal Ranges: Voltage: ±10V,0~10V,±5V,0~5V,1~5V Current:0~20mA,4~20mA,±20mA Resolution:16-bit A/D conversion,data format configurable as IEEE 32-bit float or 16-bit integer Filter options:8Hz,12Hz,16Hz,40Hz,250Hz,1000Hz Input impedance:>500kΩ for voltage;250Ω ±1% for current LED indicators:OK, FAULT diagnostic lights Hardware self-diagnosis:Open circuit detection, overrange detection, overvoltage/overcurrent protection, backplane bus monitoring Programming software:Proficy Machine Edition (V5.6 SP11 or later), RX3i CPU firmware V5.0 minimum DA = hardware revision variant

Electrical ParametersBackplane supply:+5V 230mA max; +3.3V 320mA max External isolated field power:19.2~30VDC Power consumption:Max 2.97W

Mechanical & Structure:Mounting:Plug into RX3i universal backplane single slot,terminal block sold separately Weight:0.26kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC695ALG106-DA belongs to GE Fanuc PACSystems RX3i I/O family. Compatible with RX3i CPU, power supply and other RX3i I/O modules. Widely used for pressure,flow and level signal acquisition in chemical,water treatment and process control systems.

FunctionIC695ALG106-DA is 6-channel isolated analog input module for RX3i PACSystems. Independent channel isolation eliminates ground loop interference. Built-in open circuit detection quickly identifies broken sensor wiring. Configurable digital filter suppresses field electrical noise to improve measurement stability.

InstallationFollow lockout/tagout safety procedure before installation. Fully cut off rack backplane power. Insert IC695ALG106-DA into RX3i backplane slot and lock retainer. Install matching terminal block and connect shielded sensor cables. Select signal range and filter parameters in Proficy Machine Edition. Power on and verify analog reading.

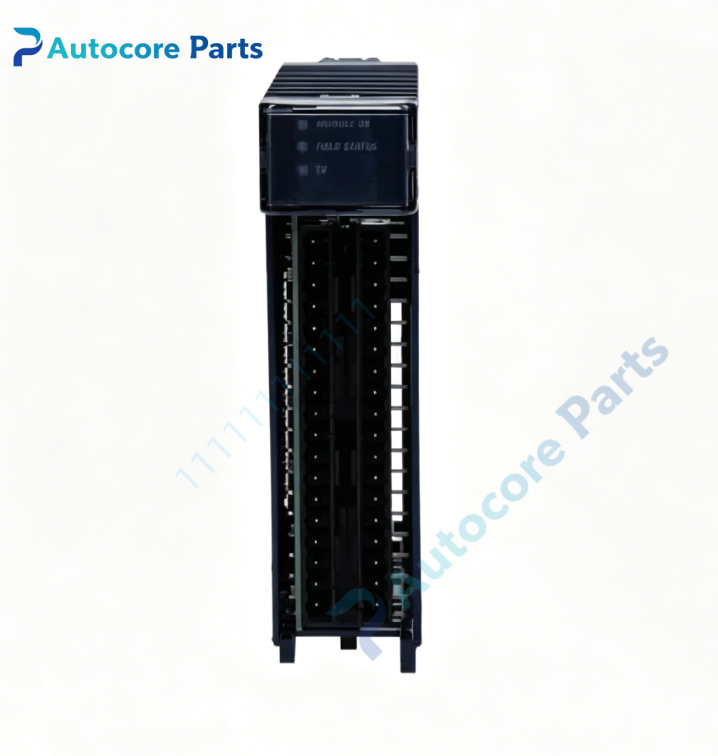

InterfaceRX3i backplane gold-edge connector,field analog input terminal block,on-board OK / FAULT LED indicators for GE Fanuc IC695ALG106-DA.

DiagnosticNo analog reading:Check 24VDC field supply,transmitter wiring and open circuit fault. Signal unstable:Improper cable shielding or ground potential difference. FAULT alarm:Open wire, overrange signal or channel hardware fault.

Product Brief

IC695ALG106-DA is GE Fanuc legacy PACSystems RX3i 6-channel isolated analog input module,for collecting analog signals from pressure/flow/level transmitters,discontinued industrial I/O spare card.
