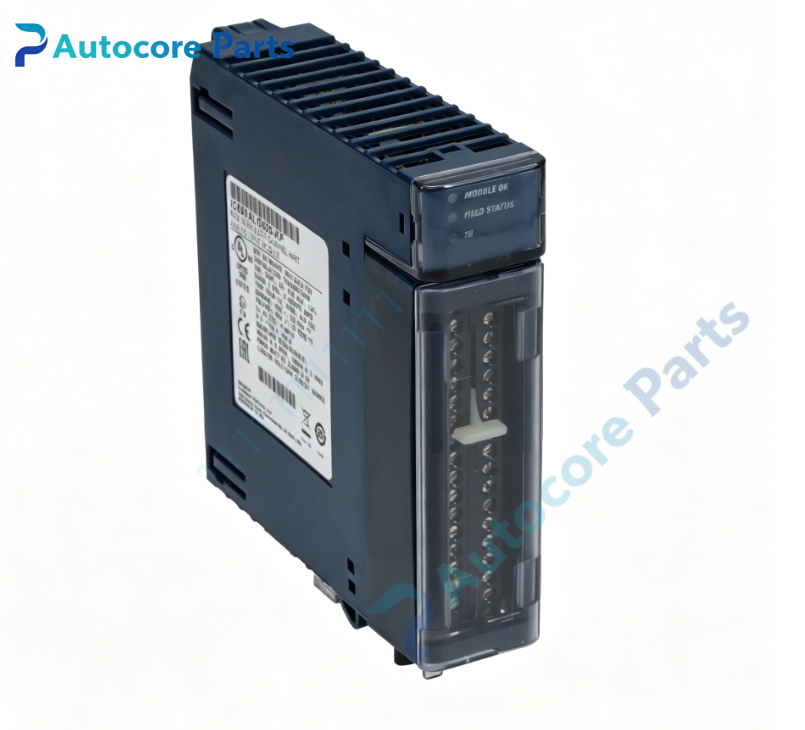

GE Fanuc IC695ALG626 Analog Combination I/O Module

Technical SpecificationsModel：IC695ALG626 Brand：GE Fanuc Product Type: Single-slot plug-in analog combined I/O module for PACSystems RX3i universal backplane

Module Feature:Function: Integrated analog input and output module, collects analog signals from field transmitters and outputs analog control signals to actuators. Channels:4 analog input channels + 4 analog output channels Signal Ranges: Input: ±10V, 0~10V, 4~20mA, 0~20mA Output: ±10V, 0~10V, 4~20mA, 0~20mA Resolution:16-bit A/D and D/A conversion Isolation:Group isolation between field side and backplane LED indicators:OK, FIELD diagnostic lights Hardware self-diagnosis:Open wire, overrange, short circuit, load open detection and backplane communication monitoring Programming software:Proficy Machine Edition

Electrical ParametersBackplane supply:+5V / +3.3V External field power:19.2~30VDC, nominal 24VDC Power consumption:Max 3.3W

Mechanical & Structure:Mounting:Plug-in installation into RX3i universal backplane single slot Weight:0.28kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC695ALG626 belongs to GE Fanuc PACSystems RX3i I/O family. Compatible with RX3i CPU, power supply and other RX3i I/O modules. Suitable for process control applications requiring both analog signal collection and analog output adjustment.

FunctionIC695ALG626 is 4AI+4AO combined analog module for RX3i PACSystems. It integrates analog acquisition and control output on one card to save rack slots. Built-in diagnostics quickly locate open circuit and short circuit faults. Group isolation reduces ground loop interference between field devices and PLC.

InstallationFollow lockout/tagout safety procedure before installation. Cut off rack power. Insert IC695ALG626 into RX3i backplane slot and lock retainer. Connect shielded field cables to terminal block. Configure signal range and failsafe parameters in Proficy Machine Edition. Power on and verify input reading and output control.

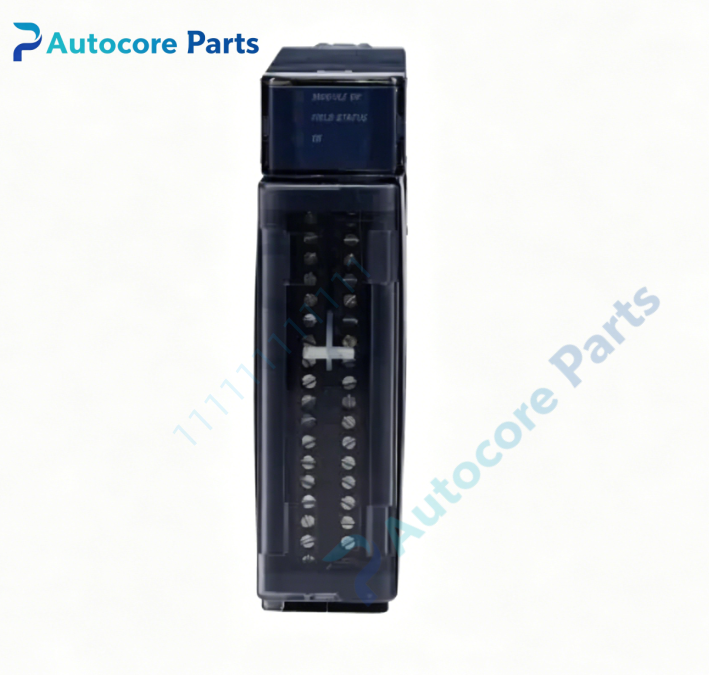

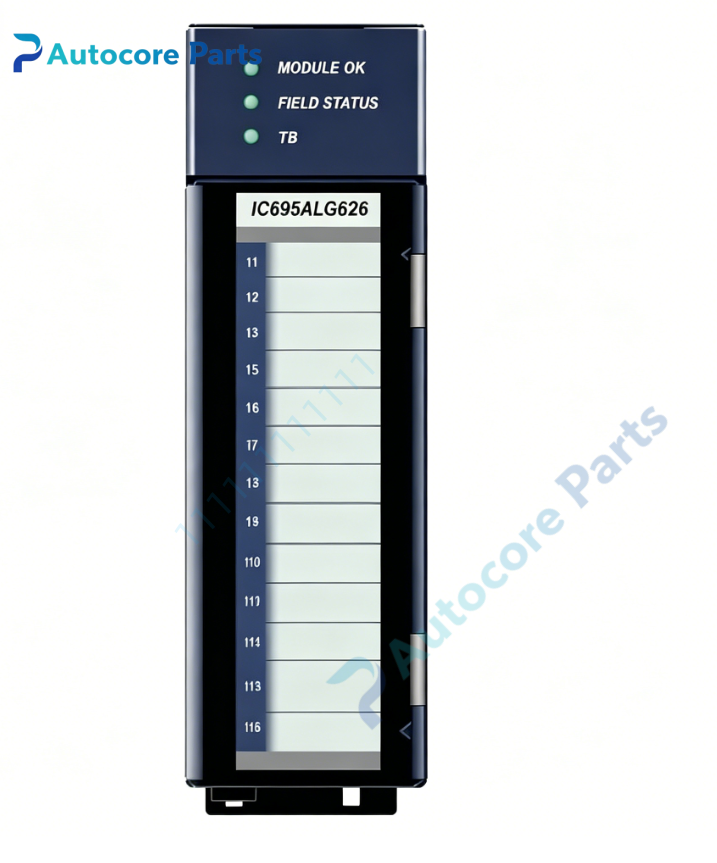

InterfaceRX3i backplane gold-edge connector,field analog I/O terminal block,on-board OK / FIELD LED indicators for GE Fanuc IC695ALG626.

DiagnosticNo analog input reading:Check 24VDC field power and transm wiring. No analog output action:Inspect actuator wiring and load status. FIELD fault alarm:Open wire, short circuit or overrange signal fault.

Product Brief

IC695ALG626 is GE Fanuc legacy PACSystems RX3i 4AI+4AO analog combination I/O module,for simultaneous analog signal acquisition and control output,discontinued industrial I/O spare card.
