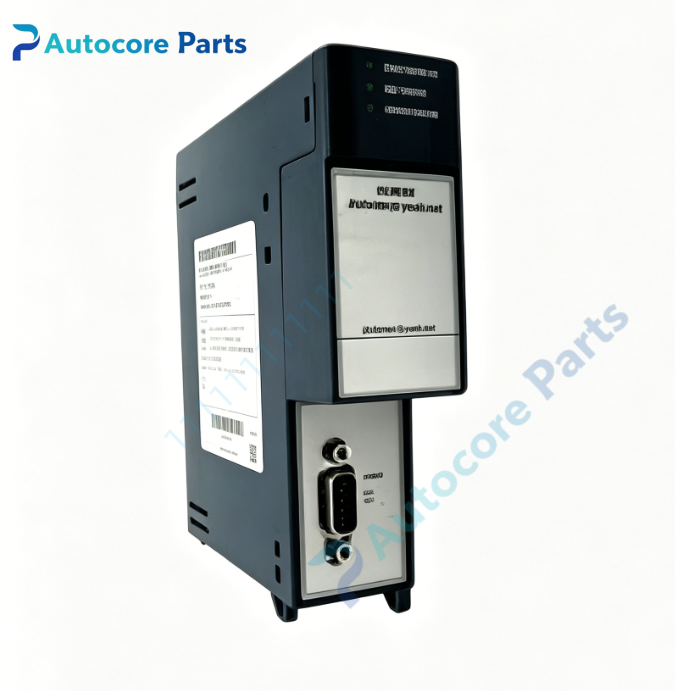

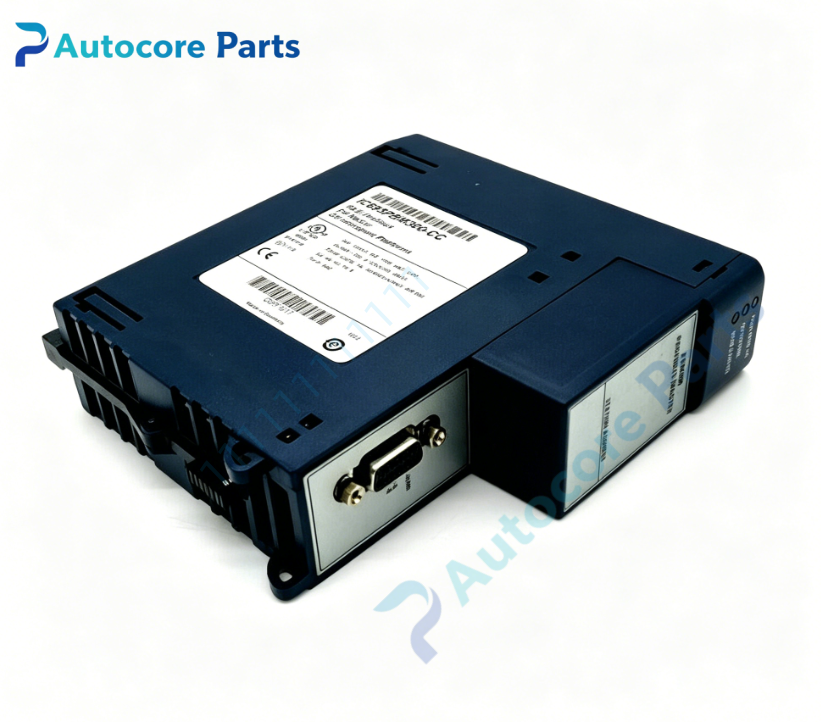

GE Fanuc IC695PBM300-CC PROFIBUS DP Master Module

Technical SpecificationsModel：IC695PBM300-CC Brand：GE Fanuc Product Type: Single-slot plug-in PROFIBUS DP master communication module for PACSystems RX3i universal backplane

Module Feature:Function: PROFIBUS DP master module for RX3i PACSystems, manages PROFIBUS DP network, exchanges real-time data with DP slave devices such as drives, remote I/O and field instruments. Connector: 1 × DB9 PROFIBUS port Supported standard: PROFIBUS DP-V0, DP-V1 Baud rate: 9.6kbps ~12Mbps standard PROFIBUS baud rates Max slave nodes: 125 slaves per network Data capacity: Max 3584 bytes input, 3584 bytes output; single slave max 244 bytes I/O Function support: Sync mode, Freeze mode, DP-V1 acyclic read/write and alarm message LED indicators: OK, RUN, COM, FAULT diagnostic lights Hardware self-diagnosis: Bus line detection, slave status monitoring, backplane bus monitoring Programming software: Proficy Machine Edition, GSD file configuration CC = hardware revision variant

Electrical ParametersBackplane supply:+3.3V max 650mA; +5V max 320mA Power consumption:Max 3.9W No external field power required

Mechanical & Structure:Mounting:Plug into RX3i universal backplane single slot Weight:0.25kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC695PBM300-CC belongs to GE Fanuc PACSystems RX3i I/O family. Compatible with RX3i CPU, power supply and other RX3i I/O modules. Widely used in power, chemical and factory automation projects with PROFIBUS DP field bus devices.

FunctionIC695PBM300-CC is PROFIBUS DP master communication module for RX3i PACSystems. It acts as the master station on PROFIBUS DP network to collect data and send control commands to all DP slaves independently without heavy CPU load. It supports cyclic real-time data exchange and acyclic DP V1 parameter read/write for drive parameter configuration and alarm diagnosis.

InstallationFollow lockout/tagout safety procedure before installation. Cut off rack backplane power. Insert IC695PBM300-CC into RX3i backplane slot and lock retainer. Connect shielded PROFIBUS DP cable to DB9 connector, terminate bus at both ends. Import GSD files and configure slave parameters in Proficy Machine Edition. Power on and verify PROFIBUS bus and slave communication.

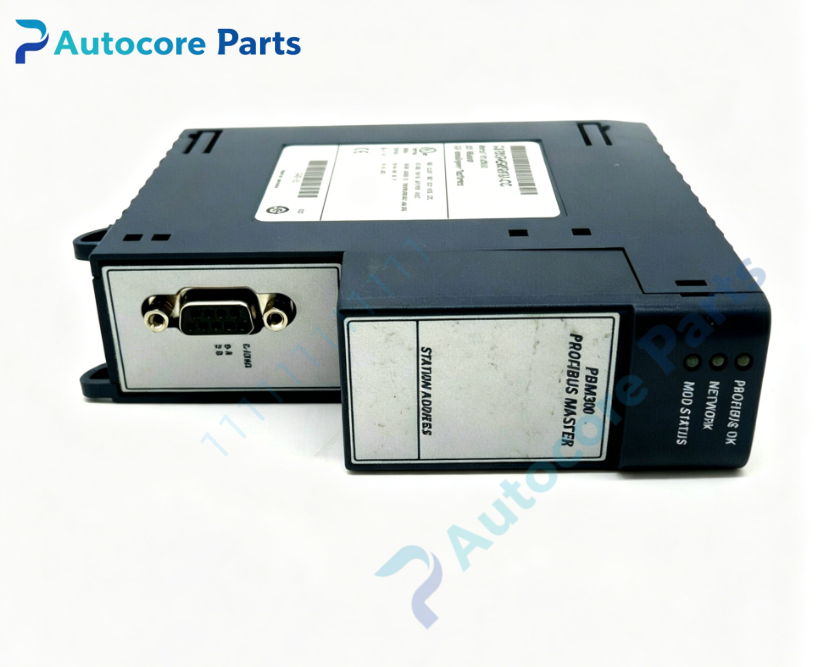

InterfaceRX3i backplane gold-edge connector,DB9 PROFIBUS port,on-board OK / RUN / COM / FAULT LED indicators for GE Fanuc IC695PBM300-CC.

DiagnosticSlave cannot be online:Check bus termination resistor, cable wiring, baud rate and GSD configuration. COM LED no flash:Bus break, wrong node address or slave power off. FAULT alarm:Backplane communication failure or module hardware fault.

Product BriefIC695PBM300-CC is GE Fanuc legacy PACSystems RX3i PROFIBUS DP master module,supports DP V0/V1 for connecting drives and distributed I/O via Profibus fieldbus,discontinued industrial communication spare card.
