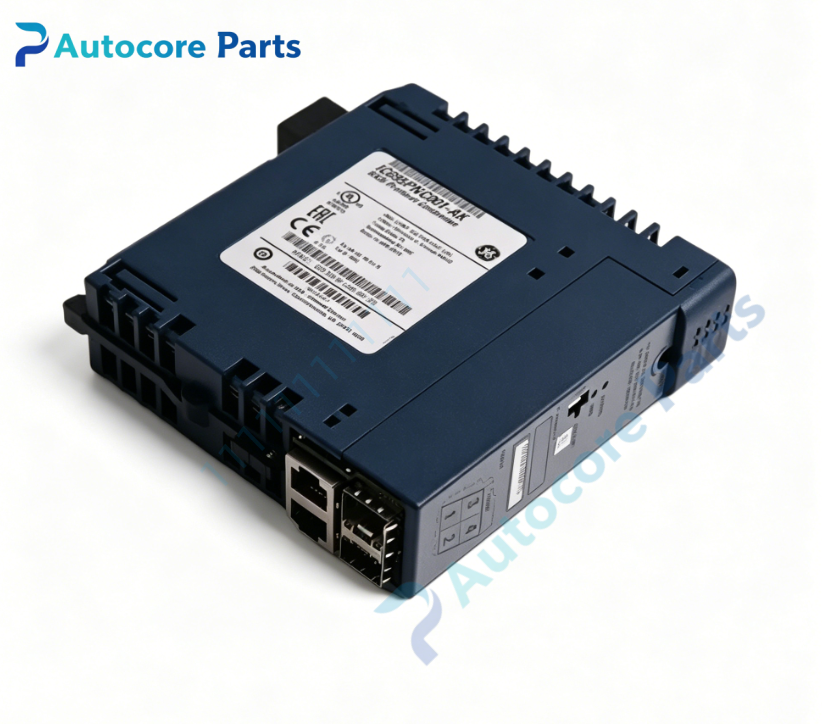

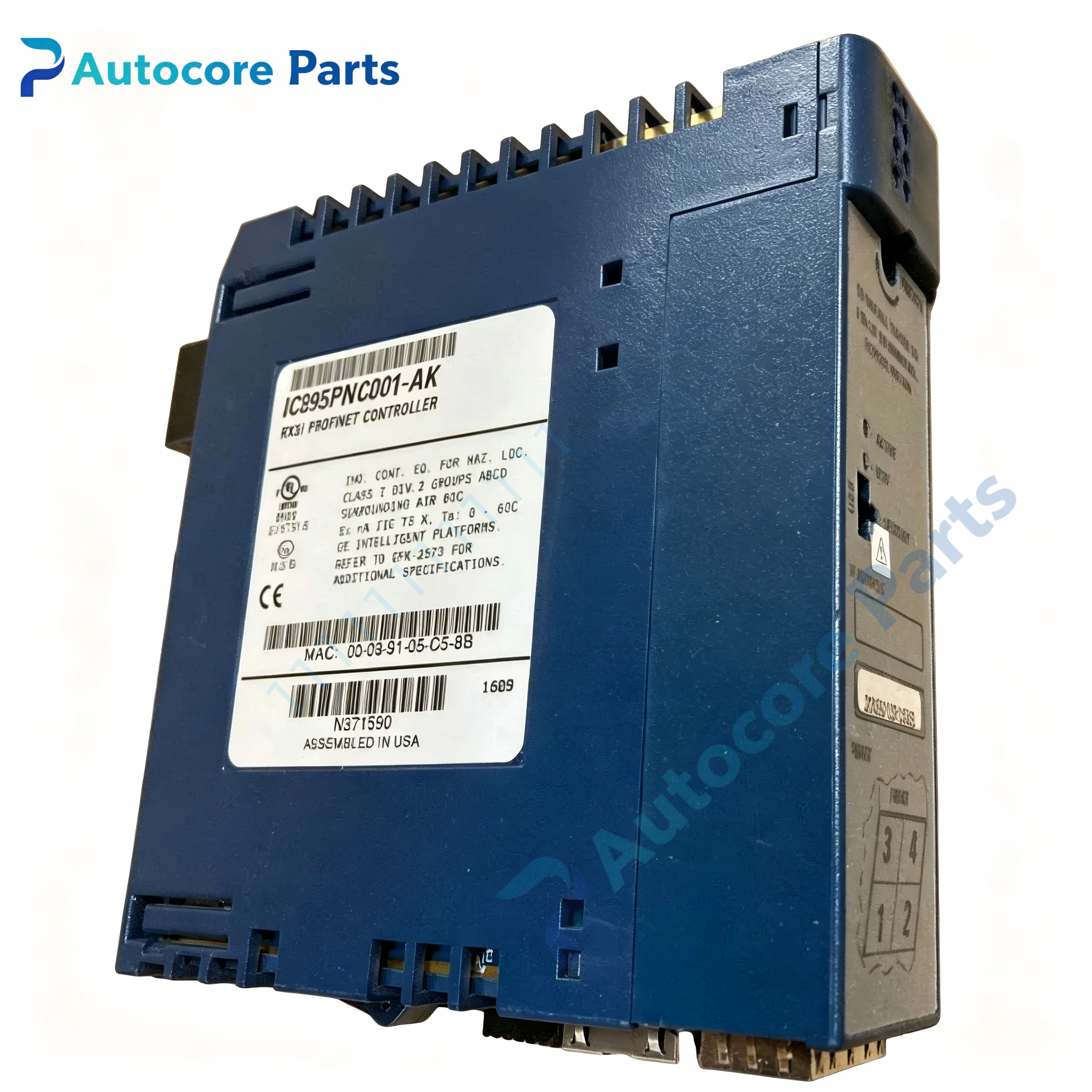

GE Fanuc IC695PNC001-AK PROFINET Controller Module

Technical SpecificationsModel：IC695PNC001-AK Brand：GE Fanuc Product Type: Single-slot plug-in PROFINET IO controller module for PACSystems RX3i universal backplane

Module Feature:Function: PROFINET IO controller module for RX3i PACSystems, connects PLC to PROFINET industrial Ethernet network, performs real-time cyclic data exchange with PROFINET IO-Devices. Protocol standard: PROFINET IO Version 2.2 certified IO Controller Network speed: 100Mbps / 1Gbps (PROFINET communication does not support 10Mbps) Media support: Copper RJ45, multimode fiber, single-mode fiber Max IO-Devices: Supports multiple PROFINET field devices, distributed I/O, drives and instruments Data exchange: Cyclic real-time data, acyclic parameter read/write, device alarm diagnosis Firmware: Field upgradable firmware LED indicators: OK, LINK, ACT, FAULT diagnostic lights Hardware self-diagnosis: Ethernet link detection, device status monitoring, backplane bus monitoring Programming software: Proficy Machine Edition AK = hardware revision variant

Electrical ParametersBackplane supply:+3.3V max 800mA; +5V max 300mA Power consumption:Max 4.3W No external field power required

Mechanical & Structure:Mounting:Plug into RX3i universal backplane single slot Weight:0.27kg Protection class:IP20

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE Status:Manufacturer discontinued legacy spare part

System compatibilityIC695PNC001-AK belongs to GE Fanuc PACSystems RX3i I/O family. Compatible with RX3i CPU, power supply and other RX3i I/O modules. Widely used in factory automation, power and process control projects with PROFINET fieldbus equipment.

FunctionIC695PNC001-AK is PROFINET IO controller module for RX3i PACSystems. It acts as PROFINET IO controller to communicate with distributed PROFINET IO devices over high-speed Ethernet. It handles real-time cyclic I/O data independently and supports acyclic parameter access and device fault alarms. AK hardware revision optimizes circuit stability for continuous operation in industrial environments.

InstallationFollow lockout/tagout safety procedure before installation. Cut off rack backplane power. Insert IC695PNC001-AK into RX3i backplane slot and lock retainer. Connect shielded Ethernet or fiber cables. Import GSDML files and configure PROFINET device topology in Proficy Machine Edition. Power on and verify PROFINET network and IO device data exchange.

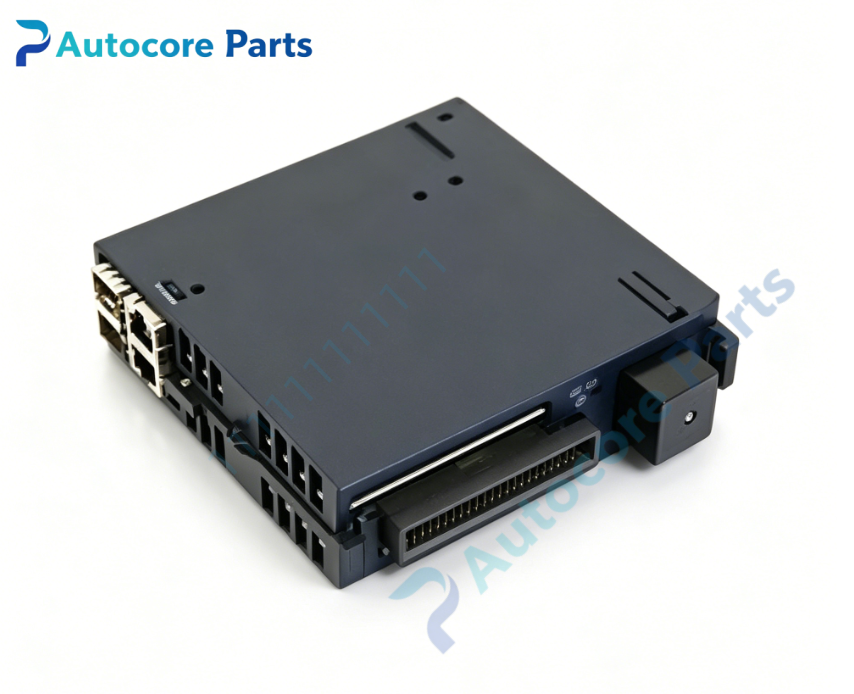

InterfaceRX3i backplane gold-edge connector,dual RJ45 Ethernet ports,on-board OK / LINK / ACT / FAULT LED indicators for GE Fanuc IC695PNC001-AK.

DiagnosticIO-Device unable to connect:Check cable shielding,IP address,device name or GSDML version mismatch. LINK LED off:Ethernet cable damage or remote device power off. FAULT LED lit:Backplane communication error or module hardware failure.

Product BriefIC695PNC001-AK is GE Fanuc legacy PACSystems RX3i PROFINET IO controller module,supports PROFINET IO V2.2 real-time Ethernet communication for field drives and distributed I/O,discontinued industrial communication spare card.
