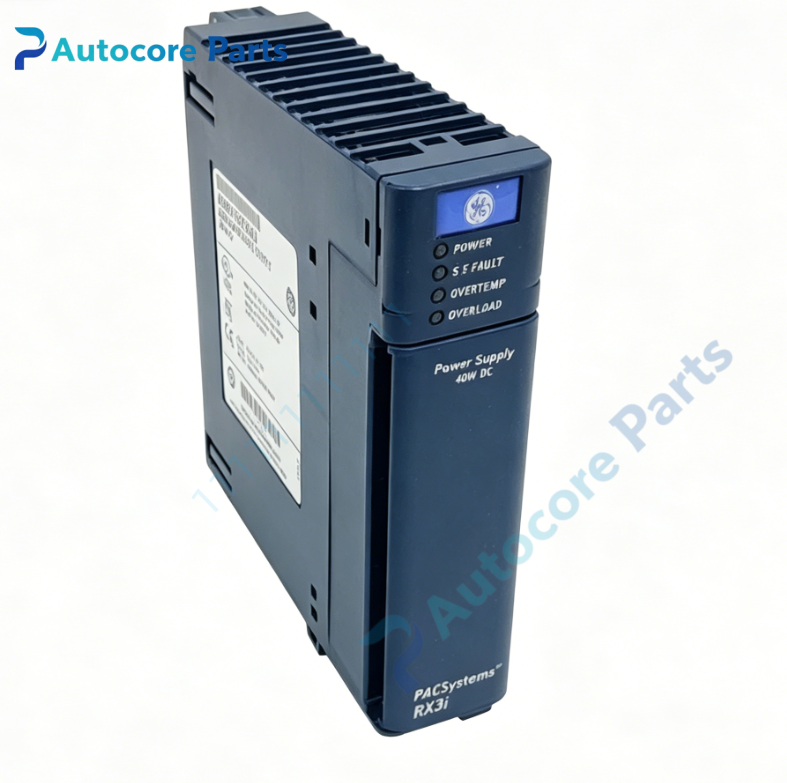

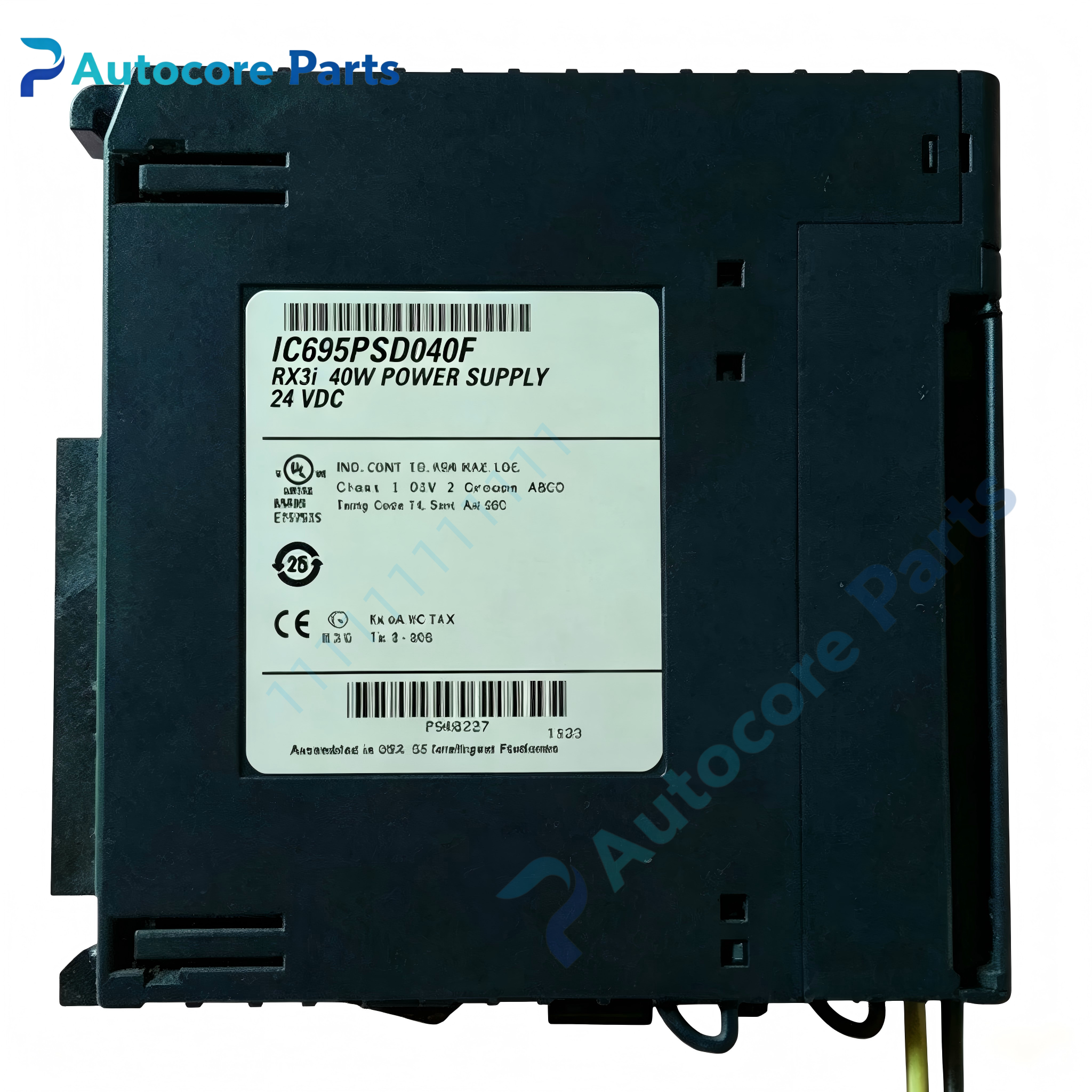

GE Fanuc IC695PSD040F Power Supply Module

Technical SpecificationsModel：IC695PSD040F Brand：GE Fanuc Product Type: Single-slot plug-in power supply module for PACSystems RX3i universal backplane

Module Feature:Function: Convert external 24VDC field power to regulated +5.1VDC, +3.3VDC and auxiliary +24VDC relay power for RX3i backplane and all installed CPU/I/O modules. Input voltage:18~30VDC for startup;12~30VDC for continuous running Rated output power:40W Isolation:1500V DC isolation between input field circuit and PLC backplane Built-in protection:reverse polarity, overvoltage, overload, short-circuit protection LED indicators:PWR, OK, Fault status LED Front screw terminal block for DC power and ground wiring Inrush current:Max 4A for 10ms Hold-up time:10ms at minimum input voltage Single slot width, hot-swap capable under proper system configuration Hardware self-diagnosis for internal power circuit fault detection

Electrical ParametersPower Input:24VDC nominal, range 12~30VDC Output rails:+5.1VDC, +3.3VDC, auxiliary +24VDC Max input power consumption:60W

Mechanical & Structure:Mounting:Plug-in installation into RX3i universal backplane slot Protection class:IP20 Weight:0.48kg

Environmental:Operating temperature:0℃ ~ +60℃ Ambient humidity:5~95% non-condensing Certification:UL, CE approved Status:Manufacturer discontinued legacy spare part

System compatibility

IC695PSD040F belongs to GE Fanuc PACSystems RX3i family. Compatible with RX3i CPU, analog/discrete I/O modules and communication cards. Widely used in power plant auxiliary control, chemical, water treatment and factory automation systems.

Function

IC695PSD040F is rack power supply module manufactured by GE Fanuc for PACSystems RX3i PLC. It supplies stable multi-rail regulated DC power to the RX3i backplane, feeding CPU and all I/O modules. 1500V isolation separates field 24VDC circuit from control backplane, preventing surge interference. Front LED indicators show power status and fault alarm for quick maintenance diagnosis.

Installation

Follow lockout/tagout safety procedure before installation. Fully cut off 24VDC input power. Insert IC695PSD040F module into vacant RX3i backplane slot and lock retainer. Connect 24VDC power and ground wire to front terminal block. Restore power and verify PWR and OK LED status.

Interface

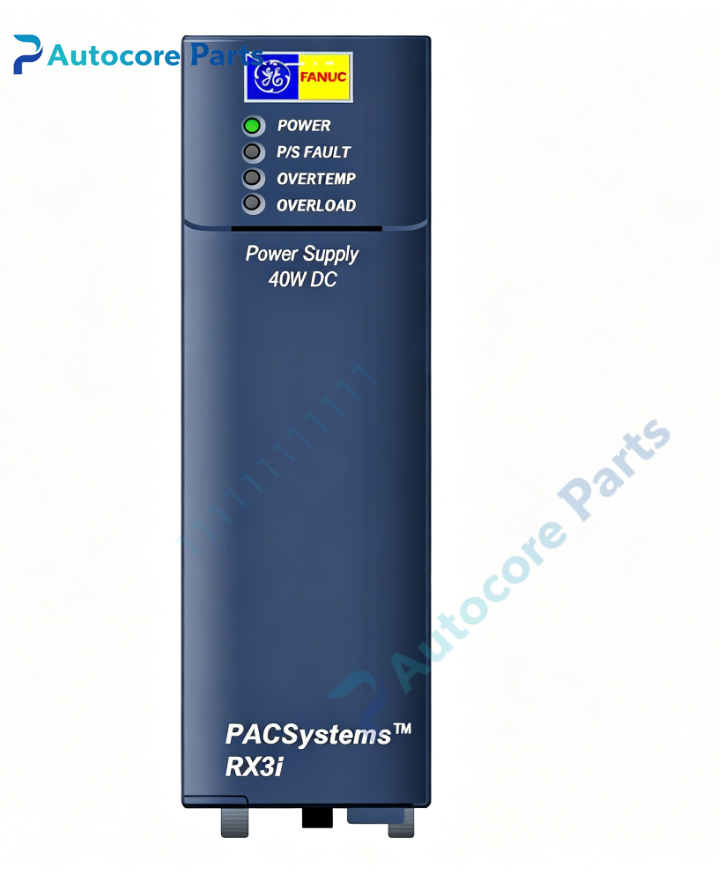

RX3i backplane gold-edge connector,24VDC input terminal block,status LED indicators for GE Fanuc IC695PSD040F.

Diagnostic

No power LED:Check external 24VDC supply and terminal wiring. OK LED off / Fault alarm:Inspect input under/over voltage, overload or short circuit on backplane. Intermittent power drop:Check loose terminals, voltage sag or excessive total rack power consumption.

Product Brief

IC695PSD040F is GE Fanuc legacy PACSystems RX3i 24VDC 40W rack power supply module,provides isolated multi-rail regulated power for RX3i PLC backplane,discontinued power spare module.
